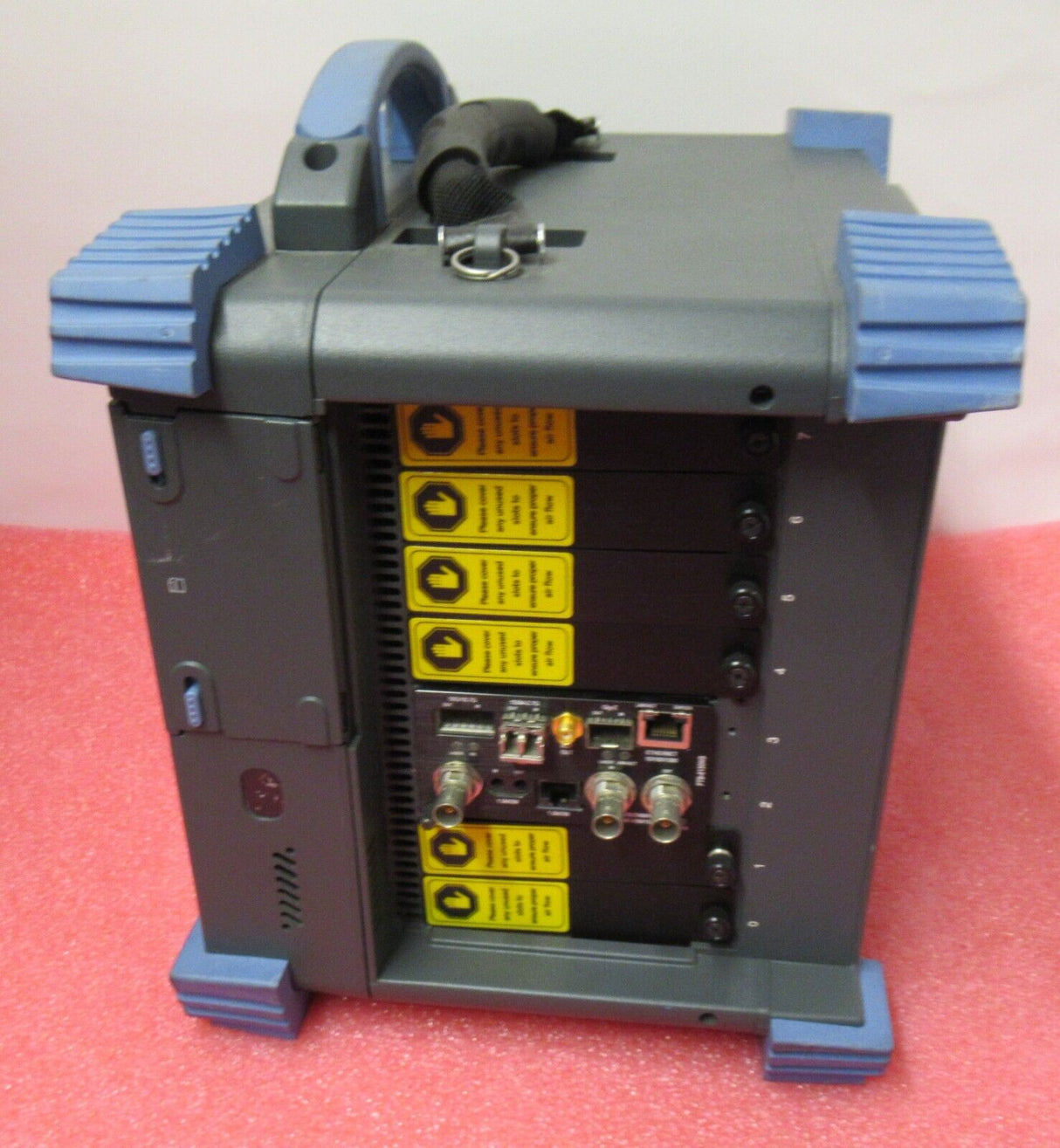

EXFO FTB-400 Universal Test System GP-408 FTB-8120NG SONET/SDH Blazer
Pre-owned
EXFO FTB-400 Universal Test System GP-408 FTB-8120NG SONET/SDH Blazer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: HP
Type: Universal Test System
Testing Rates: s up to 10 Gbit/s for both SONET/SDH and Ethernet
MPN: FTB-8120NG / FTB-400 / GP-408
EXFO FTB-400 Universal Test System GP-408 8 Slot FTB-8120NG Multiservice Blazer
In good condition and full working order
Included:

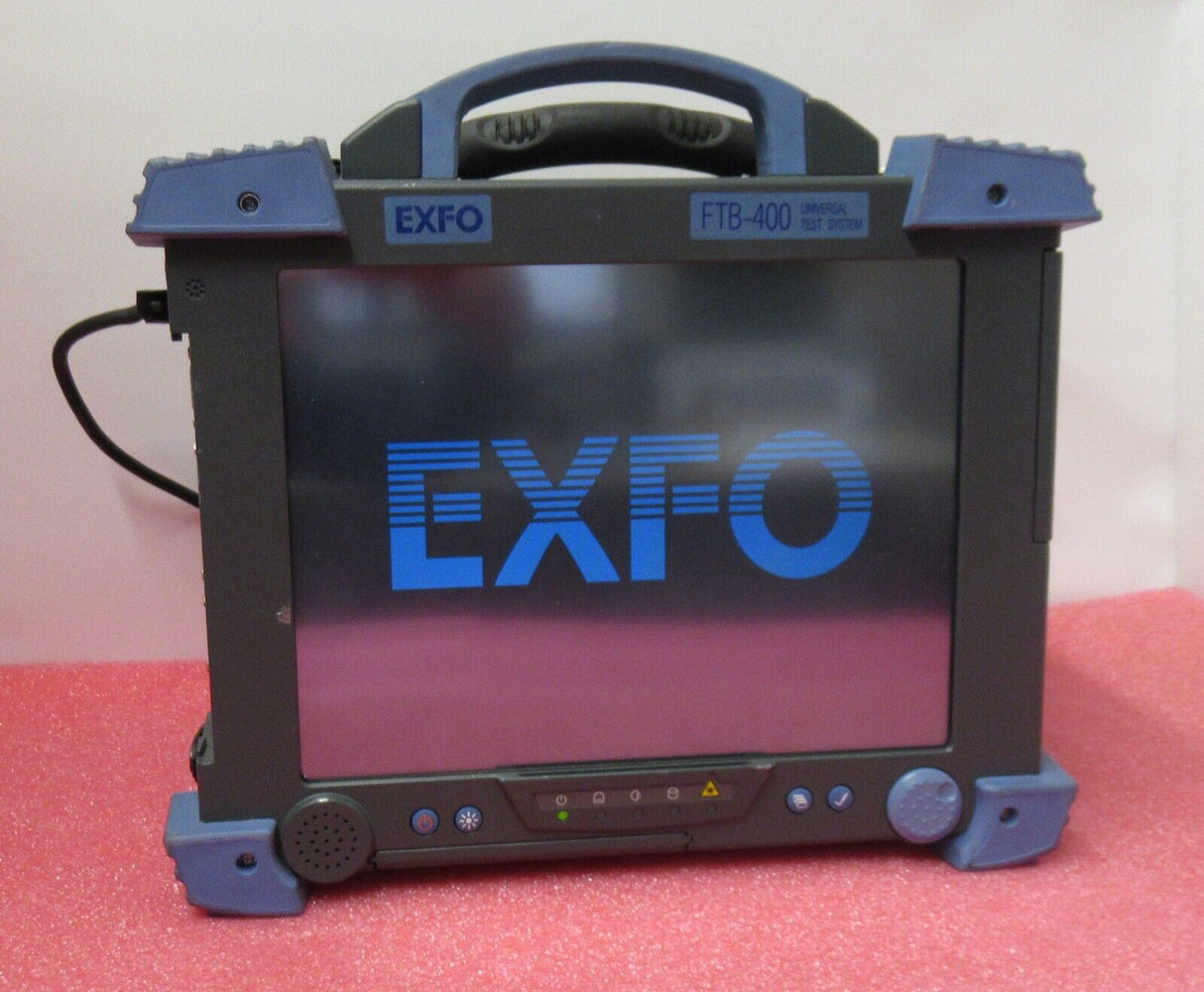

1x EXFO FTB-400 Universal Test System

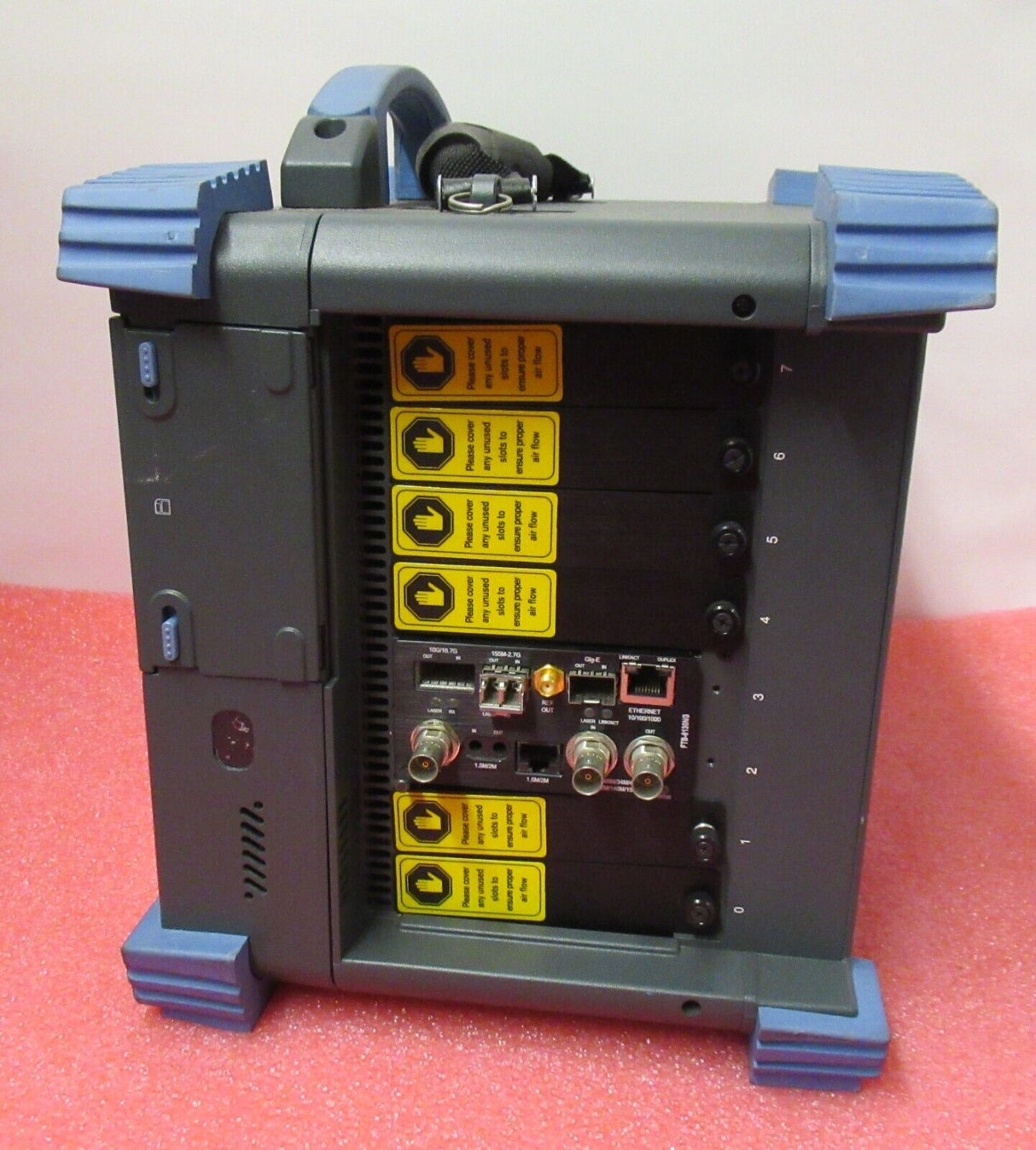

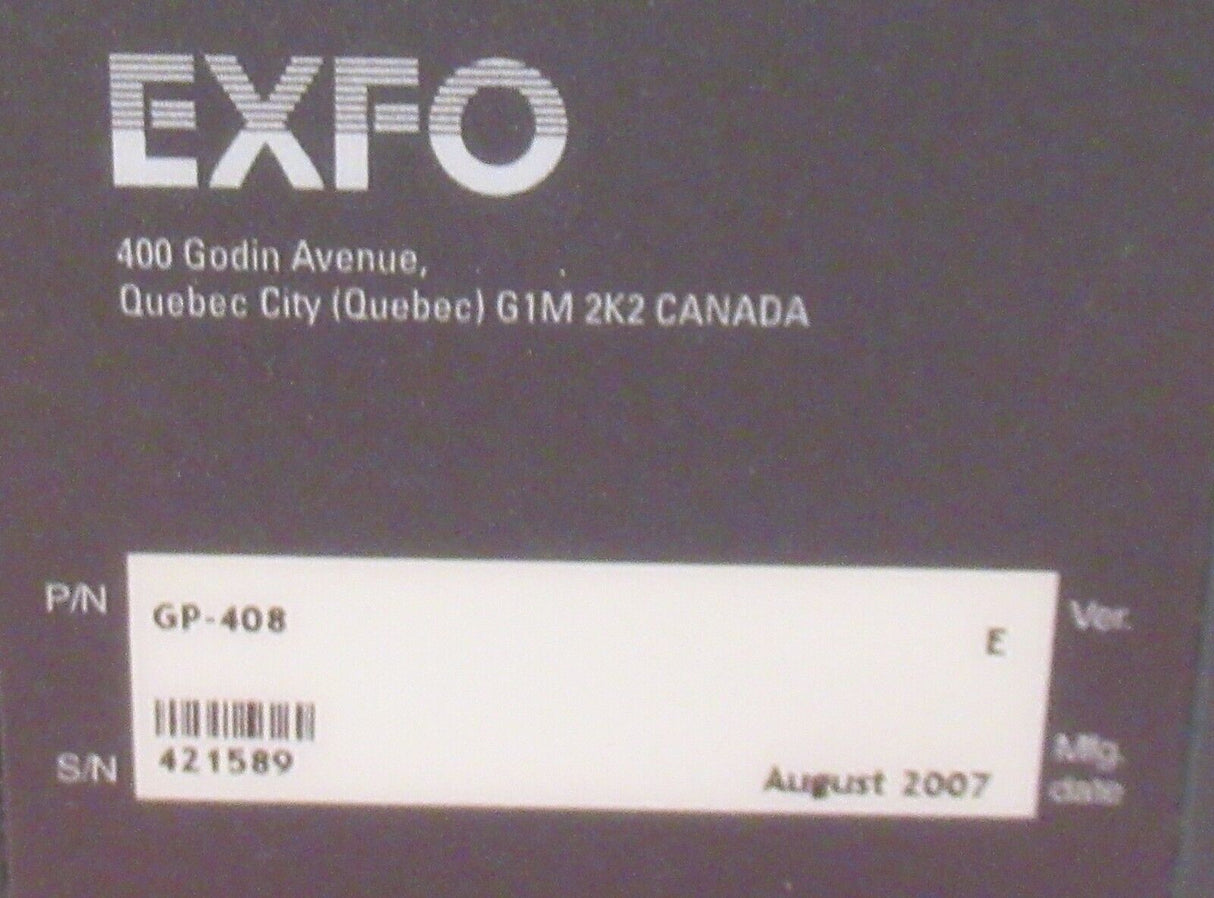

1x EXFO GP-408 8 Slot Receptacle For FTB-400 Mainframe
1x EXFO FTB-8130NG SONET/SDH Test Module
An optical time domain reflectometer is used to characterize optical fiber by injecting optical pulses into one end of the fiber and measuring the results from the same end. The measurements are made on the scattered or reflected signals from various points along the fiber.
Additional Features:
Simultaneous acquisitions and fast data post-processing
Scalable range of test applications and field-interchangeable modules

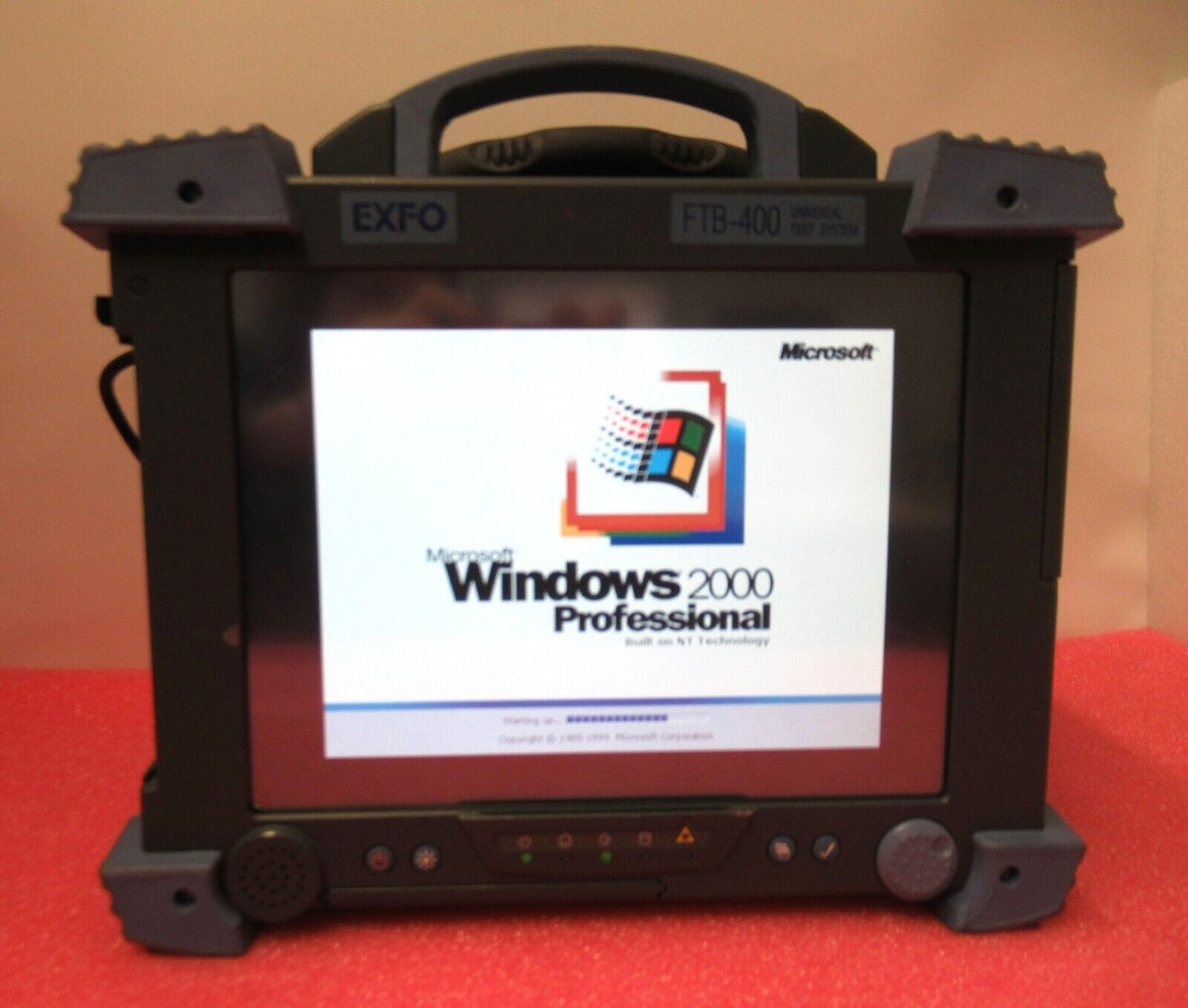

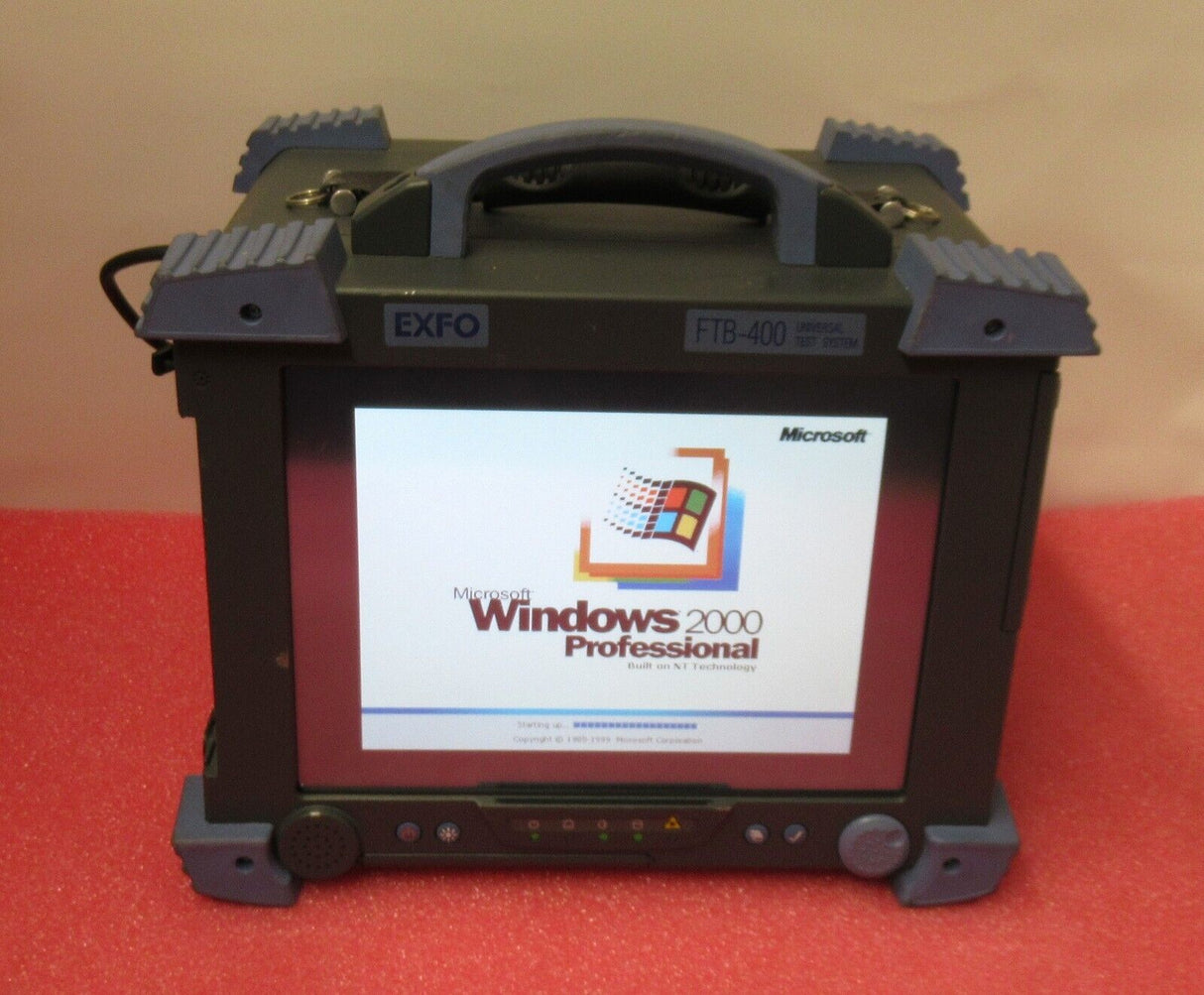

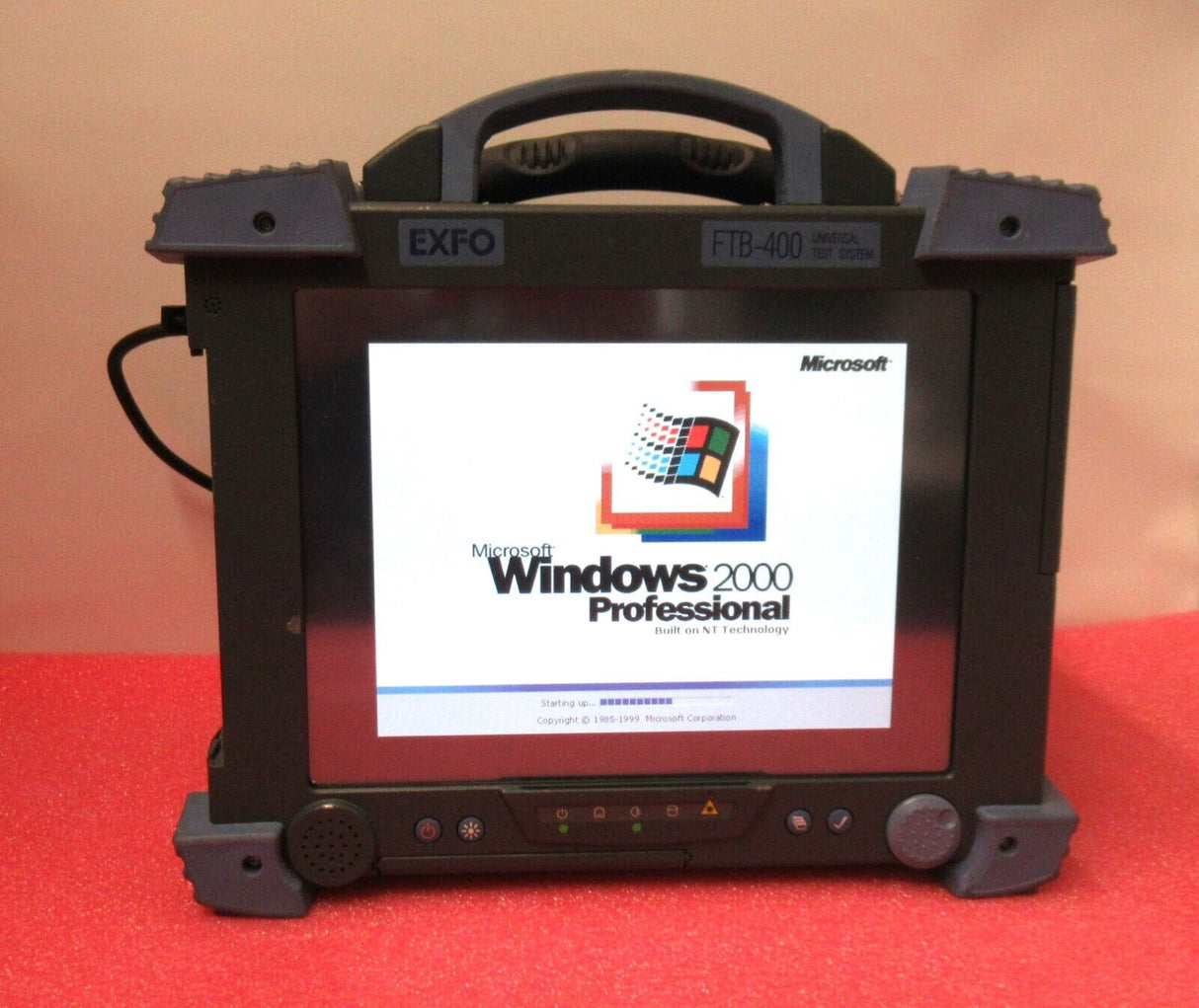

Pentium-powered Windows operating system

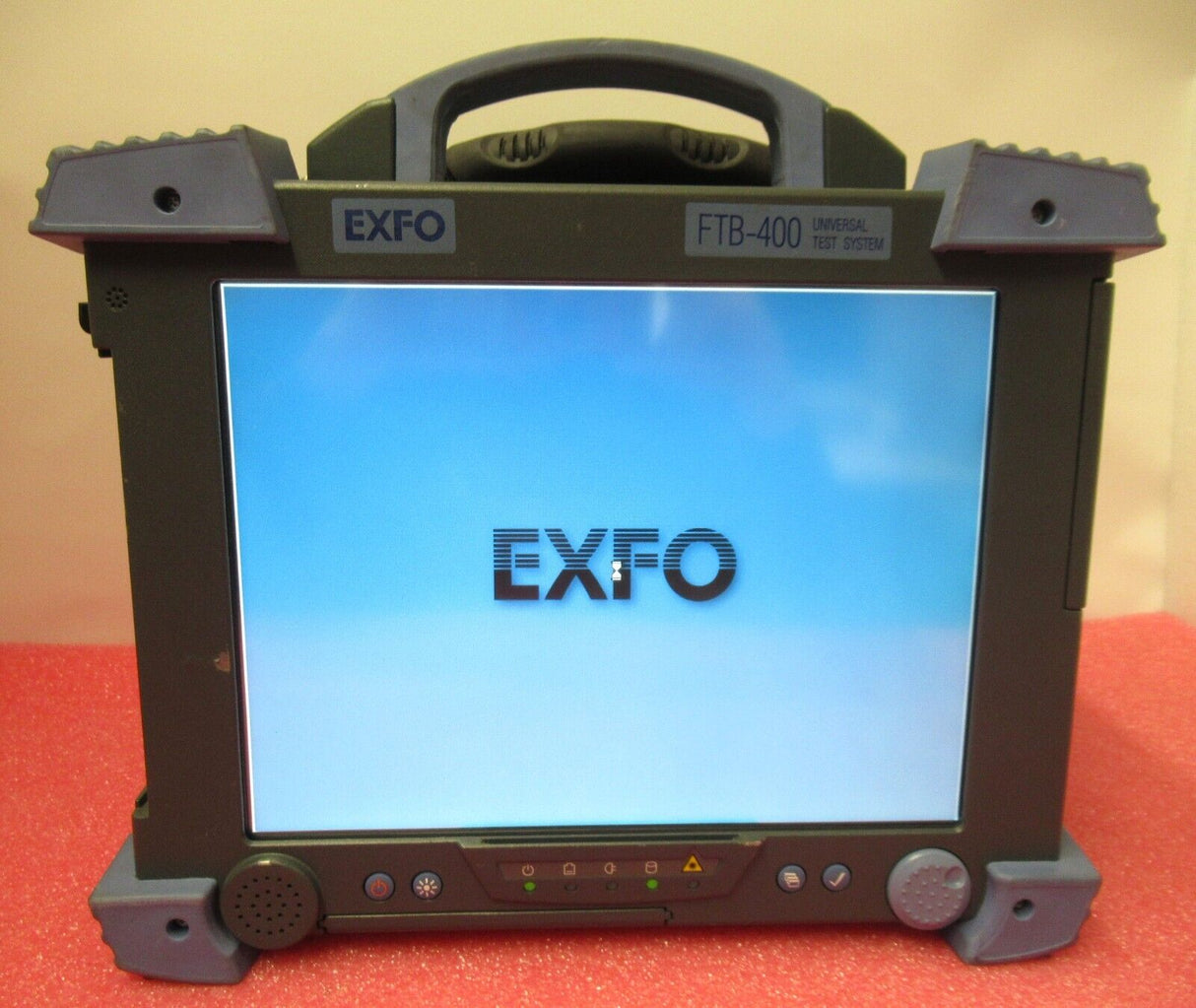

Easy-to-read, high-resolution 30.7 cm transflective (TFT) screen
Physical and optical testing: complete fiber and signal characterization using OTDR, OLTS, PMD, CD and OSA test modules
Transport and datacom testing: QoS assurance validation using SONET/SDH and Ethernet test modules
Specifications:
Display: Touchscreen, colour, 800 x 600 TFT 307 mm (12 1/16 in)

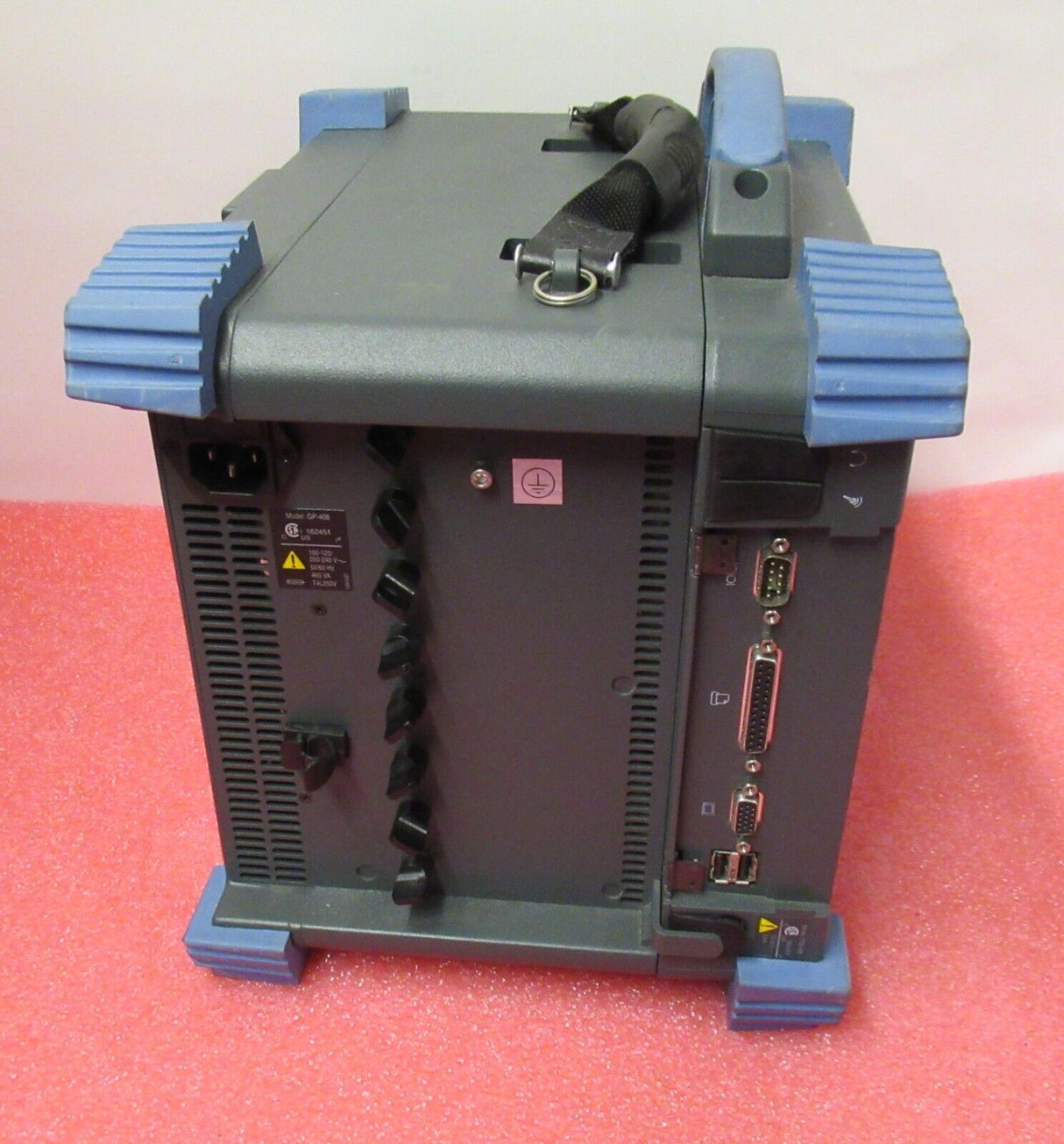

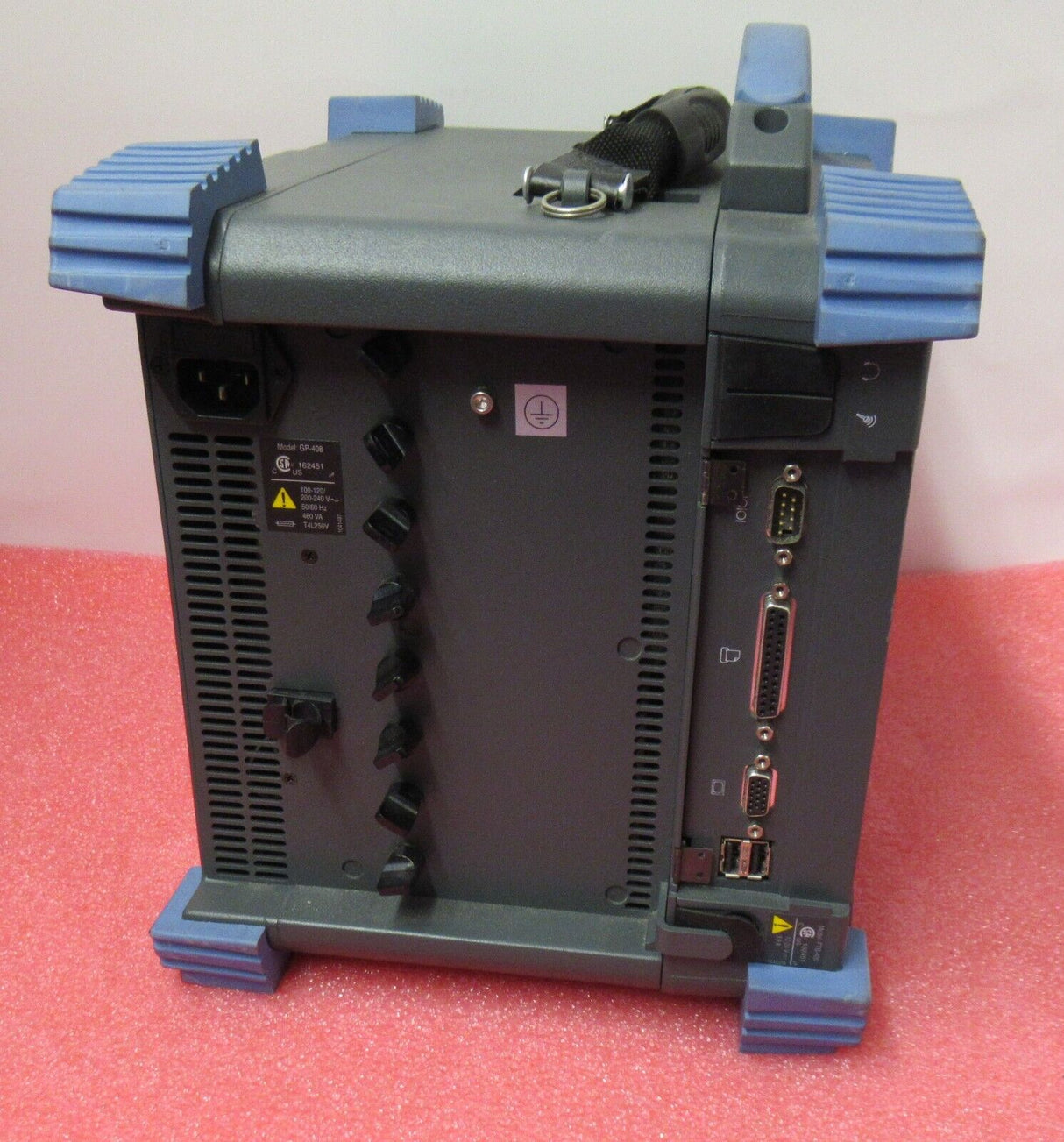

Interfaces:
Serial RS-232
Parallel port
External monitor
Two USB 1.1 ports
Infrared (IrDA) port
Audio microphone In 3.5 mm
Audio speaker Out 3.5 mm
Two PCMCIA type II or one PCAMCIA type III
Storage:
Internal 80 GB hard drive minimum (over 750 000 OTDR test files)
Internal 3.5 in 1.44 MB floppy drive
External USB read/write CD-ROM (optional)
Flash memory cards (256 MB) (optional)
NTFS file system
Power supply:
100-240 VAC, 50/60 Hz for the eight-slot (GP-408) module receptacle
General Specifications:
Temperature: Operating: 0 ºC to 50 ºC (32 ºF to 122 ºF); Storage: –40 ºC to 60 ºC (–40 ºF to 140ºF)
Relative humidity: 0 % to 95 % (non-condensing)
Vibration: & 1.5 g. at 10 Hz to 500 Hz (on three main axes)
Mechanical shock: & 760 mm on six sides and eight main edges (according to GR-196-CORE)
Isolation: Spillproof and splashproof
CE compliance: Class A certification
The Ultimate Platform for Network Experts:
Technologically speaking, today's networks are more complex than ever. Thousands of components have to work in harmony, and deployment specialists are responsible for tuning entire systems for optimal network performance and ensuring that records are up to date. At the same time, fiber counts are skyrocketing, and dense wavelength-division multiplexing (DWDM) is entrenched in long-haul applications, moving into metro.
With the tough and proven FTB-400 Universal Test System from EXFO. This revolutionary test platform streamlines field-based test and measurement operations onto a single powerful platform. Welcome to multitasking in the field.
Multiple Configurations, Dozens of Options
The FTB-400 Universal Test System comes in five configurations to expand your testing possibilities.
Bus-Protector Configuration
Ultra-slim bus protector for using the FTB-400 as a dedicated portable computer
Eight-Slot Configuration
This multipurpose, high-power, eight-slot back receptacle houses any of EXFO’s FTB test modules and delivers first-class features:
Complete dispersion characterization—CD, PMD and OTDR—in a single platform
Full compatibility with the Ethernet, Fibre Channel, next-generation SONET/SDH and DSn/PDH test modules
High-speed bus
Integrated power supply (no external converter)
