Crestron DM-RMC-SCALER-C DigitalMedia 8G+ Receiver & Room Controller w/Scaler

Brand: Crestron

Type: Scaler

Output Interfaces: HDMI

Model: DM-RMC-SCALER-C

Connectivity: HDMI,USB,Ethernet (RJ-45),Terminal Block

Number of Outputs: 1

Crestron DM-RMC-SCALER-C DigitalMedia 8G+ Receiver & Room Controller w/Scaler

Model: DM-RMC-SCALER-C

P/N: 6505405

In good condition and full working order

Tested

Included:

1 x Crestron DM-RMC-SCALER-C DigitalMedia 8G+ Receiver & Room Controller w/Scaler

Overview:

The DM-RMC-SCALER-C provides an advanced one-box interface solution for a single display device as part of a complete Crestron DigitalMedia system. It functions as a DM 8G+ receiver, video scaler, and control interface. It provides a single HDMI output along with Ethernet, USB HID, RS-232, and IR control ports. In addition to DM 8G+, it is also compatible with HDBaseT, allowing it to be connected directly to an HDBaseT certified source. Built-in scaling enables the connected display to handle any video resolution up to HD 1080p or WUXGA. Its compact, low-profile design allows the DM-RMC-SCALER-C to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single CAT type twisted pair cable.

DigitalMedia 8G+

As the leader in HDMI and control system technologies, Crestron developed DigitalMedia (DM) to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM is called DigitalMedia 8G (DM 8G). Engineered for ultra high-bandwidth and ultimate scalability, DM 8G provides a true one-wire lossless transport for moving high-definition video, audio, Ethernet, and control signals over a choice of twisted pair or fiber optic cable.

DM 8G over twisted pair copper wire is called DigitalMedia 8G+ (DM 8G+). DM 8G+ handles uncompressed Full HD 1080p video signals with support for 3D, Deep Color, and HDCP, as well as computer signals up to WUXGA. Audio capabilities include support for high-bitrate 7.1 audio formats like Dolby TrueHD and DTS-HD Master Audio as well as uncompressed linear PCM. All signals are transported over a single CAT type cable, supporting distances up to 330 feet (100 m) using Crestron DM 8G Cable or CAT5e.

HDBaseT Certified

Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ input, the DM-RMC-SCALER-C can be connected directly to an HDBaseT compliant source without requiring a DM transmitter.Multimedia Display Interface

A single HDMI digital AV output port is provided on the DM-RMC-SCALER-C for connection to a display or other device. The HDMI output can also handle DVI signals using an appropriate adapter or interface cable. A single CAT type cable connects the DM-RMC-SCALER-C to a DM switcher or transmitter, or to an HDBaseT source, transporting video, audio, control, and networking signals all through one simple RJ45 connection.[1] Multiple DM-RMC-SCALER-Cs may be installed to handle each display in a multiroom distribution system, all fed from a central DM-MD series switcher. Or, a single DM-RMC-SCALER-C can be fed straight from a DM 8G+ or HDBaseT transmitter, affording a simple solution for extending a computer or AV signal to a single display.High-Definition Scaler

Through a distributed scaler approach, DigitalMedia truly delivers the most flexible and user-friendly solution for routing multiple disparate sources to many different display devices. By placing an independent high-performance scaler at every display device, DM ensures an optimal image on every screen no matter what sources are selected. Distributed scaling allows a high-res computer source to be viewed on any display in the building. It also allows a high-definition 3D source to be viewed on lower-resolution 2D displays without compromising the original signal, letting you share your theater's full HD 1080p 3D image with smaller, lesser displays in other rooms.The DM-RMC-SCALER-C accepts any video source from standard NTSC 480i to Full HD 1080p60, as well as computer sources from VGA to UXGA/WUXGA, and scales them perfectly to match the native resolution of your video display. A range of common output resolutions are supported to work with virtually any popular flat-panel display, projector, or computer monitor. Intelligent frame rate conversion enables support for 24p and PAL format sources, and 3D to 2D conversion allows 3D content to be fed simultaneously to separate 3D and 2D displays. Setup and use of the scaler is simplified through fully automatic operation utilizing the display's EDID. Dual-Projector 3D Support

A pair of DM-RMC-SCALER-Cs can be used to facilitate a dual-projector 3D setup, steering just the left eye portion of a 3D signal to one projector, and the right eye portion to the other. This is done using the scaler's 3D to 2D conversion mode, enabling 3D capability with scaling. Video Wall Processing

The DM-RMC-SCALER-C has another trick up its sleeve, providing zoom capability and bezel compensation on its output to display just a portion of the source image. Using this feature, multiple units may be combined to configure a video wall composed of up to 16 individual displays. Configurations of 2x2, 3x2, 3x3, 4x3, or 4x4 are supported, and all that is required is a separate DM-RMC-SCALER-C for each display, and a DM switcher with sufficient DM 8G+ outputs.LAN Connectivity

Along with high-definition AV and control, DigitalMedia also integrates high-speed Ethernet networking for a total signal distribution solution. The DM-RMC-SCALER-C includes a 10/100 Ethernet port, providing a convenient LAN connection for a local network device.USB Signal Extension

DigitalMedia allows for the routing of USB signals alongside video and audio. A USB HID compliant mouse or keyboard can be connected directly to the DM-RMC-SCALER-C and used to control a computer or media server that’s located at the central equipment cabinet or some other location. Crestron also offers USB over Ethernet Extender Modules (USB-EXT-DM)[5], which may be added to enable support for more USB devices of virtually any type.Embedded Device Control

The primary objective of every Crestron system is to enable precisely the control desired for a seamless user experience. The DM-RMC-SCALER-C includes built-in RS-232, IR, and Ethernet control ports to allow programmable control of the display device connected to it. But, it can also provide an alternative to such conventional control methods by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to the control system, the DM-RMC-SCALER-C provides a gateway for controlling the display device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters.Low-Profile Installation

Its low-profile design makes the DM-RMC-SCALER-C perfect for installation behind a flat panel display or above a ceiling mounted projector. It mounts to a standard 2-gang US, UK, or European electrical box using the mounting bracket provided, affording a clean installation that protrudes a mere 1-1/8 inches (29 mm) from the mounting surface.Connections for the display device are all positioned along the top and bottom of the unit for a clean, serviceable installation.

Key Features

DigitalMedia 8G+ receiver, high-definition scaler, and display controller

Connects to a DM switcher or transmitter over a single CAT type twisted pair cable

Supports cable lengths up to 330 ft (100 m) using DM 8G cable or CAT5e

HDBaseT Certified — Enables direct connection to other HDBaseT certified equipment

Provides one HDMI or DVI display output

Handles any video resolution from standard NTSC 480i or PAL 576i, to HD 1080p60 w/Deep Color

Handles any computer resolution from VGA to UXGA/WUXGA

Scales the signal to match the native resolution of virtually any digital video display or computer monitor up to 1080p or WUXGA

Provides intelligent frame rate conversion

Includes content-adaptive noise reduction

Allows motion-adaptive de-interlacing or interlacing

Allows adjustable overscan or underscan up to 7.5%

Provides automatic 3D to 2D signal conversion

Automatically passes 3D video without scaling to 3D capable displays

Supports left/right eye steering for dual-projector 3D setups

Scalable zoom feature enables 2x2, 3x2, 3x3, 4x3, or 4x4 video wall capability

Handles Dolby TrueHD, DTS-HD, and uncompressed 7.1 linear PCM audio

HDCP compliant

Provides a 10/100 Ethernet LAN connection

Enables device control via CEC, IR, RS-232, and Ethernet

Enables USB HID signal extension for a local keyboard/mouse

Compatible with Crestron USB over Ethernet Extenders

Allows quick, easy setup and diagnostics

Low-profile design mounts to a 2-gang US, UK, or European wall box

Universal power pack included

Specifications:

Video

Audio

Communications

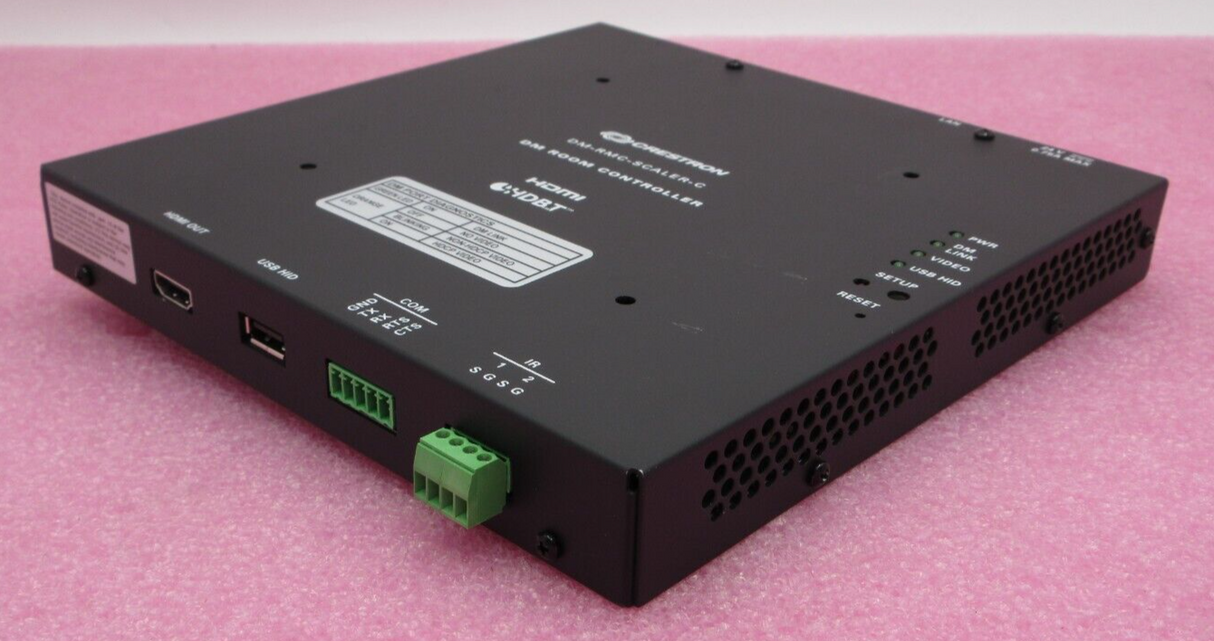

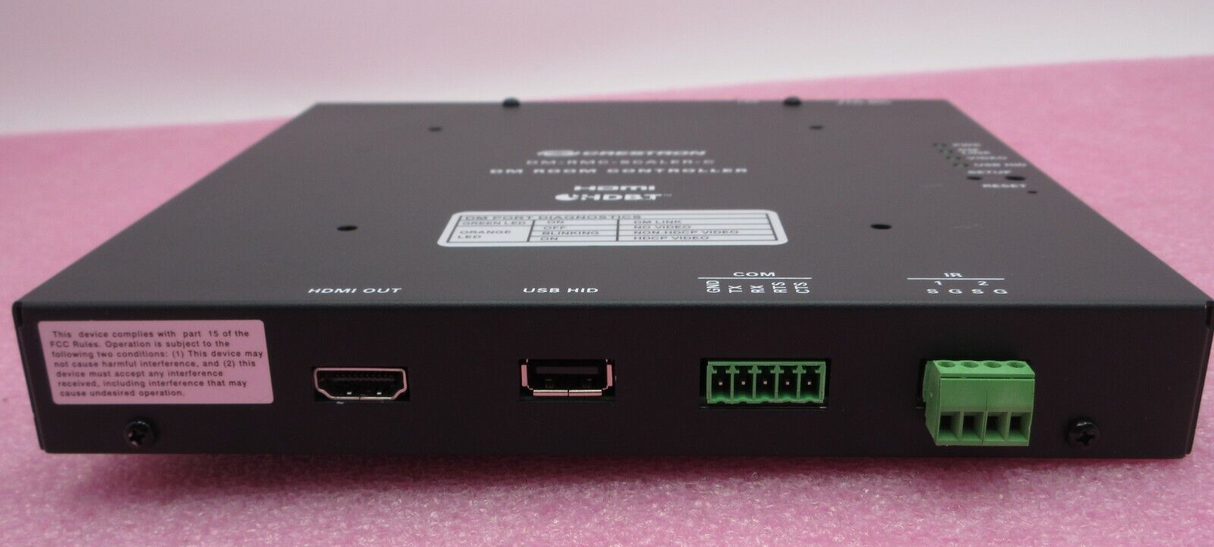

Connectors – Bottom

HDMI digital video/audio output;

Also supports DVI[2]

USB 2.0 host port for connection of a mouse/keyboard or other USB HID-compliant device

Up to 115.2k baud, hardware and software handshaking support

IR output up to 1.1 MHz;

1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud

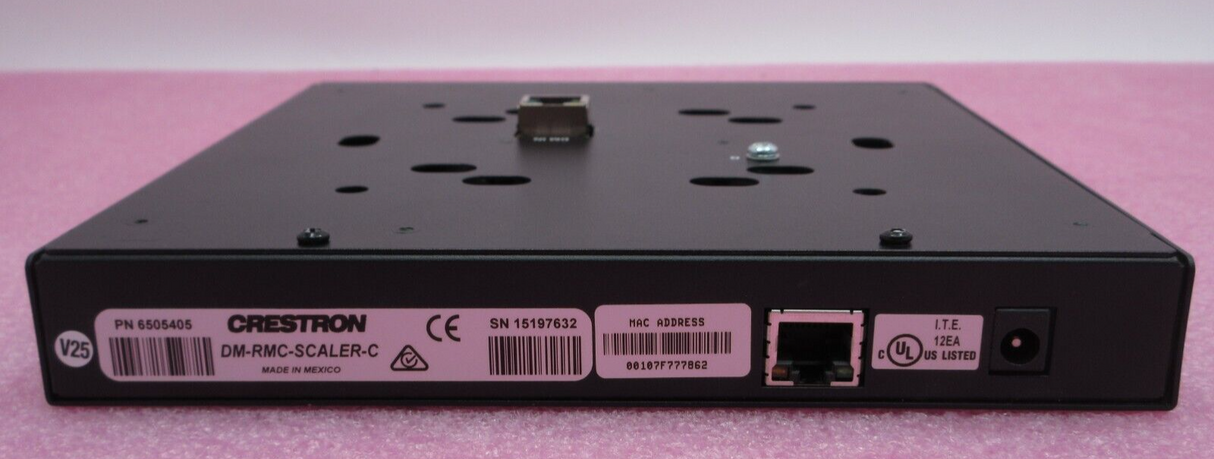

Connectors – Top

10Base-T/100Base-TX Ethernet port

24 Volt DC power input;

PW-2407WU power pack included

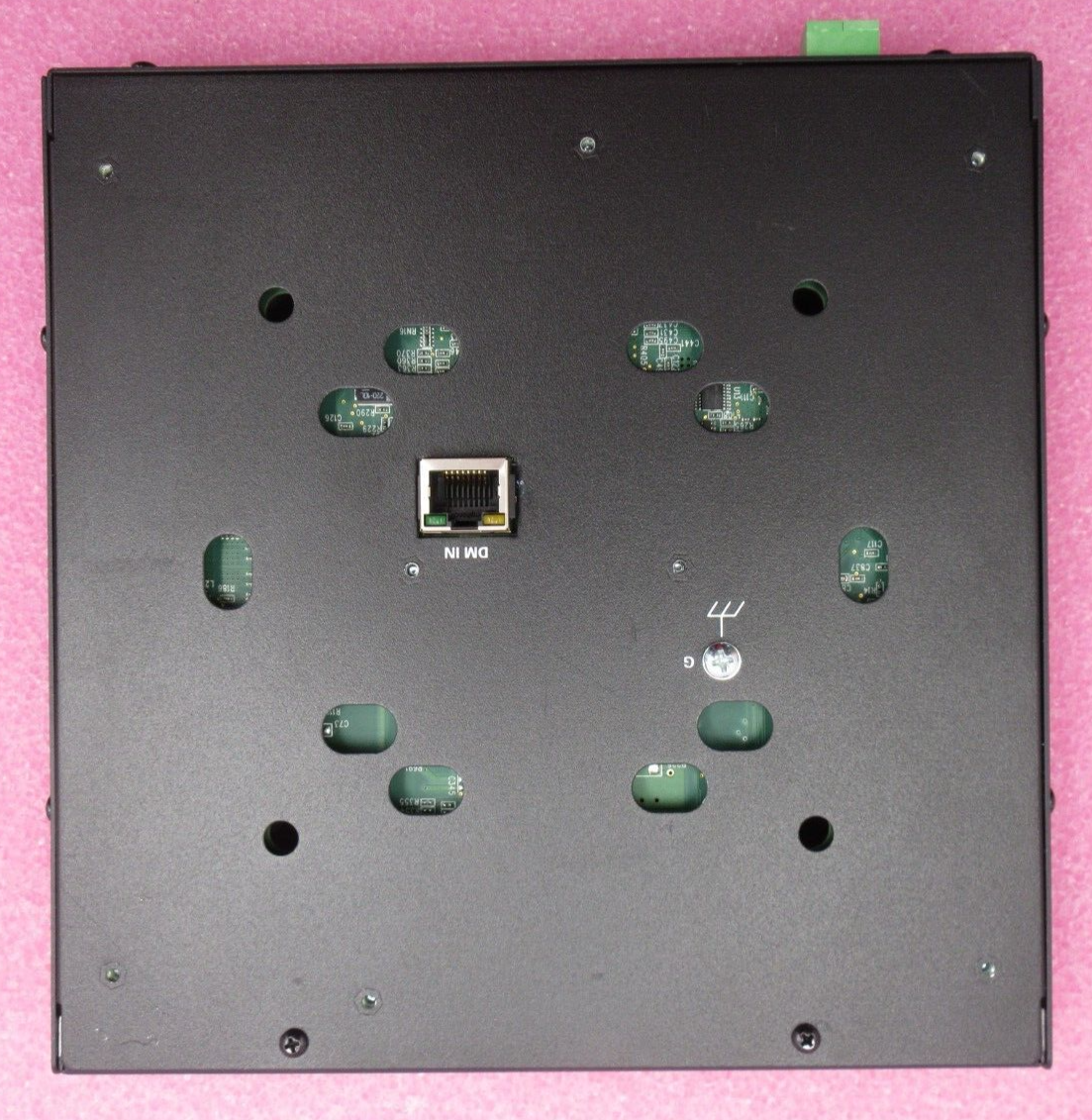

Connectors – Rear

DM 8G+ input, HDBaseT compliant;

Connects to the DM 8G+ output of a DM switcher, transmitter, or other DM device, or to a HDBaseT device, via CAT5e or Crestron DM-CBL-8G cable[1]

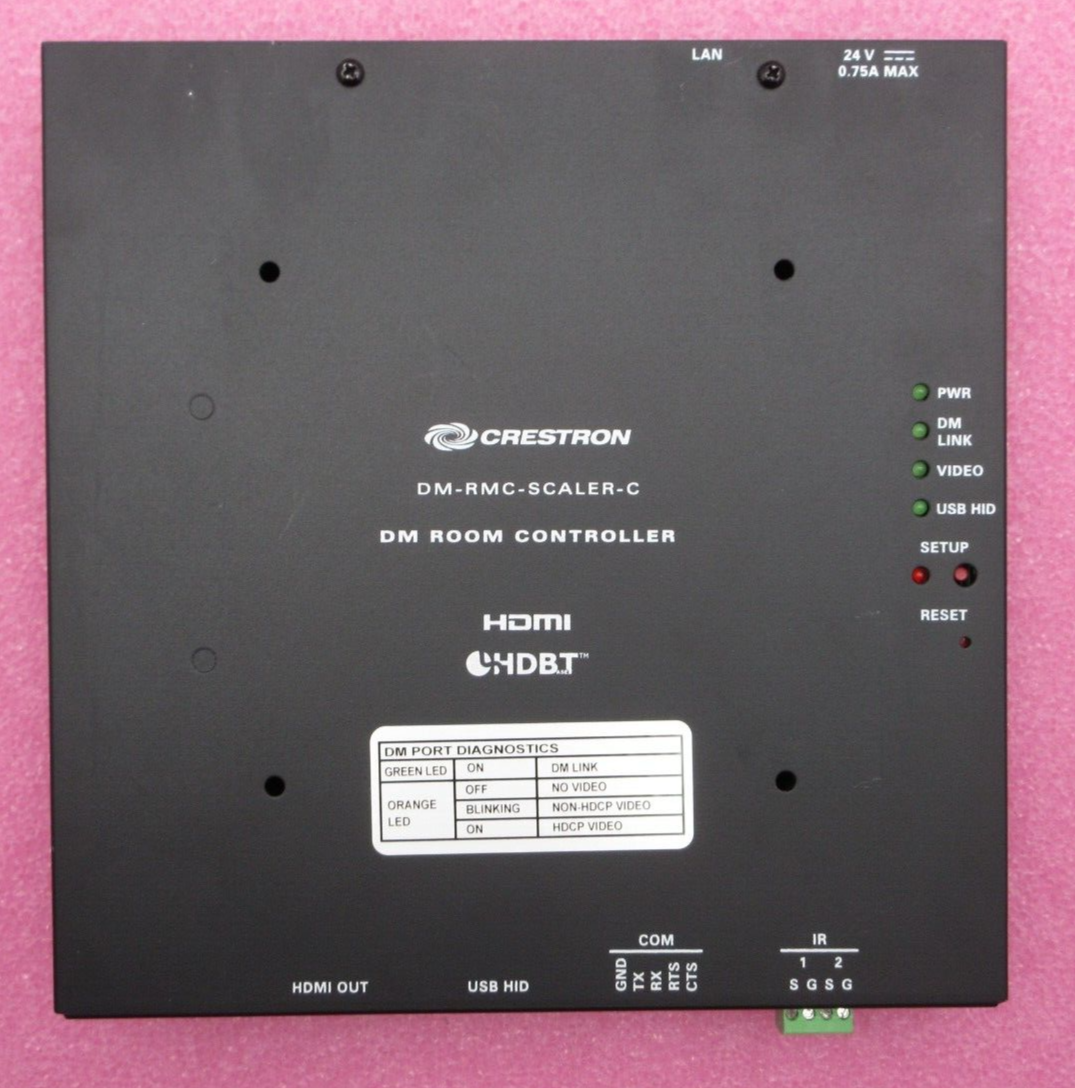

Controls & Indicators

Power Requirements

100-240 Volts AC, 50/60 Hz power pack, model PW-2407WU included

Environmental

Enclosure

Dimensions

Weight
