NEW Crestron C2N-IVDS24X24 Intercom Video Distribution Switcher 24x24 RCA RJ-45
NEW
NEW Crestron C2N-IVDS24X24 Intercom Video Distribution Switcher 24x24 RCA RJ-45 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Signal Types Composite video
Video Formats 480i (NTSC) and 576i (PAL)
Bandwidth 20MHz, -3dB (unbalanced); 10MHz, -3dB (CAT5)
Crosstalk ≤ -50dB @ 5MHz
Isolation ≥ 55dB @ 5MHz

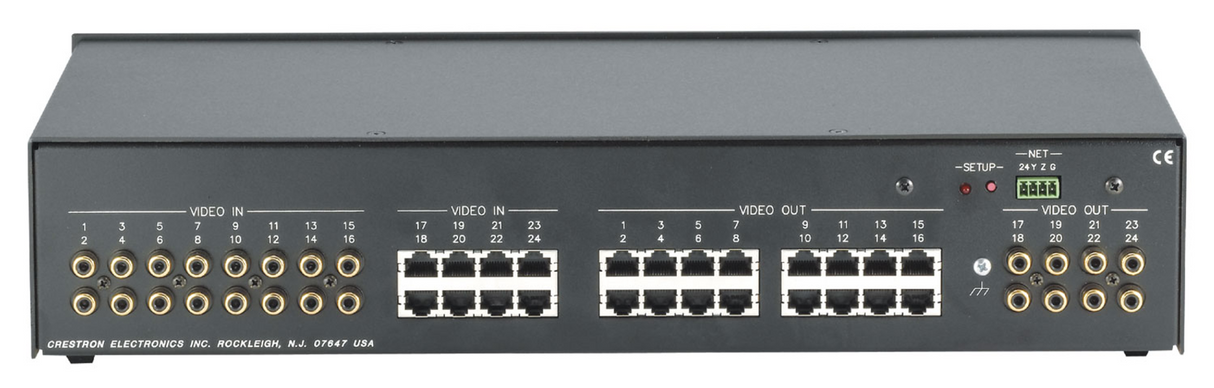

Connectors
VIDEO IN 1 – 16 (16) RCA female;
Composite video inputs;
Input Impedance: 75 ohms;
Input Level: 1 Vp-p nominal
VIDEO IN 17 - 24 (8) 8-pin RJ45 female, shielded;
CAT5 balanced video input ports (composite only);
Input Impedance: 100 ohms;
Connect to C2N-IIF interfaces, or any “CH” CAT5 video output ports
VIDEO OUT 1 - 16 (16) 8-pin RJ45 female, shielded;
CAT5 balanced video output ports (composite only);
Output Impedance: 100 ohms;
Maximum CAT5 distance: 350 feet;
Connect to compatible Crestron touchpanels, or any “CH” CAT5 video input ports
VIDEO OUT 17 - 24 (8) RCA female;
Composite video outputs;
Output Impedance: 75 ohms;
Output Level: 1 Vp-p nominal
NET (1) 4-pin 3.5mm detachable terminal block;
Cresnet slave port, connects to Cresnet control network
Ground (1) 6-32 screw, chassis ground lug
Buttons & LED Indicators
PWR (1) green LED, indicates 24 Volts DC power supplied from Cresnet control network
NET (1) yellow LED, indicates communication with Cresnet system
SETUP (rear) (1) miniature pushbutton and (1) red LED, used for touch-settable ID (TSID)
Power Requirements
Cresnet Power Usage 12 Watts (0.5 Amp @ 24 Volts DC)
Environmental
Temperature 41° to 104°F (5° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Enclosure
Black metal, 2U 19-inch rack-mountable (rack ears included)
Dimensions
Height 3.56 in (9.04 cm);
3.47 (8.81 cm) without feet
Width 17.03 in (43.25 cm);
19.0 in (48.26 cm) with ears
Depth 8.67 in (22.02 cm)
Weight
3.4 lb (1.5 kg)
