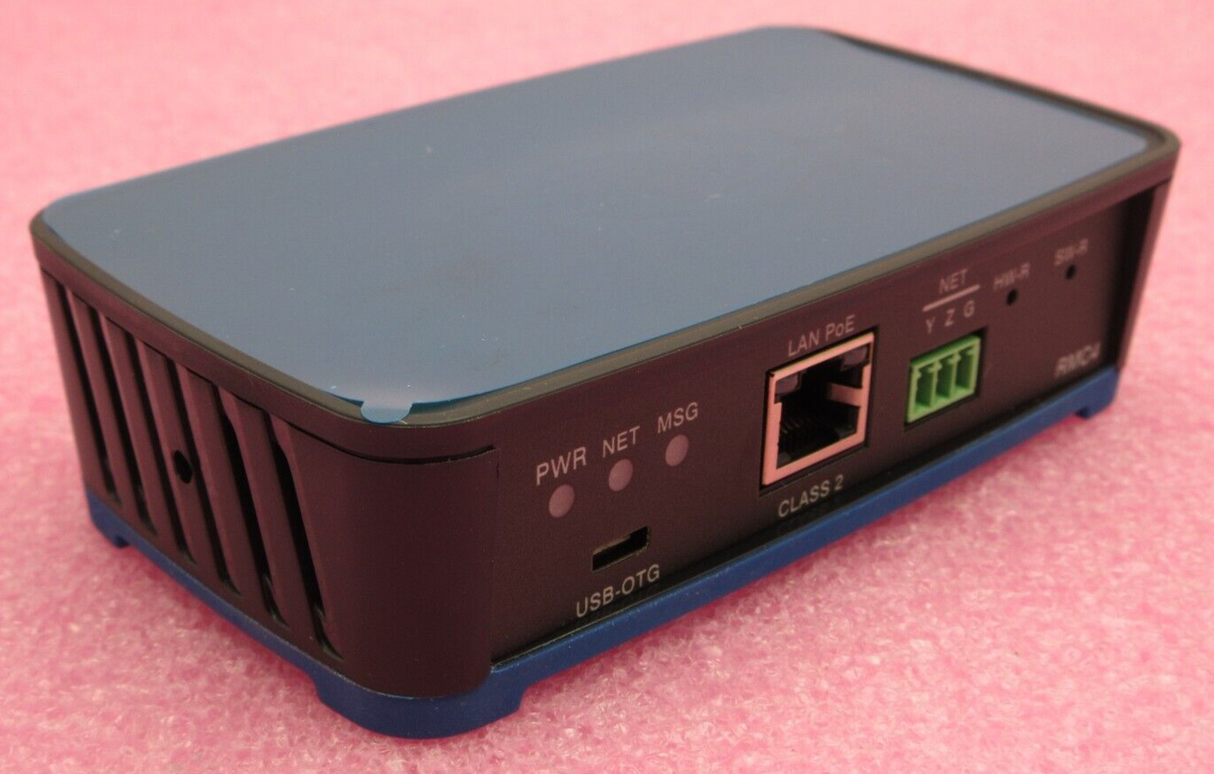

NEW Crestron RMC4 4-Series Control and Monitoring System PoE 6510418

Brand: Crestron
Connectors: Terminal Block, USB-OTG, PoE

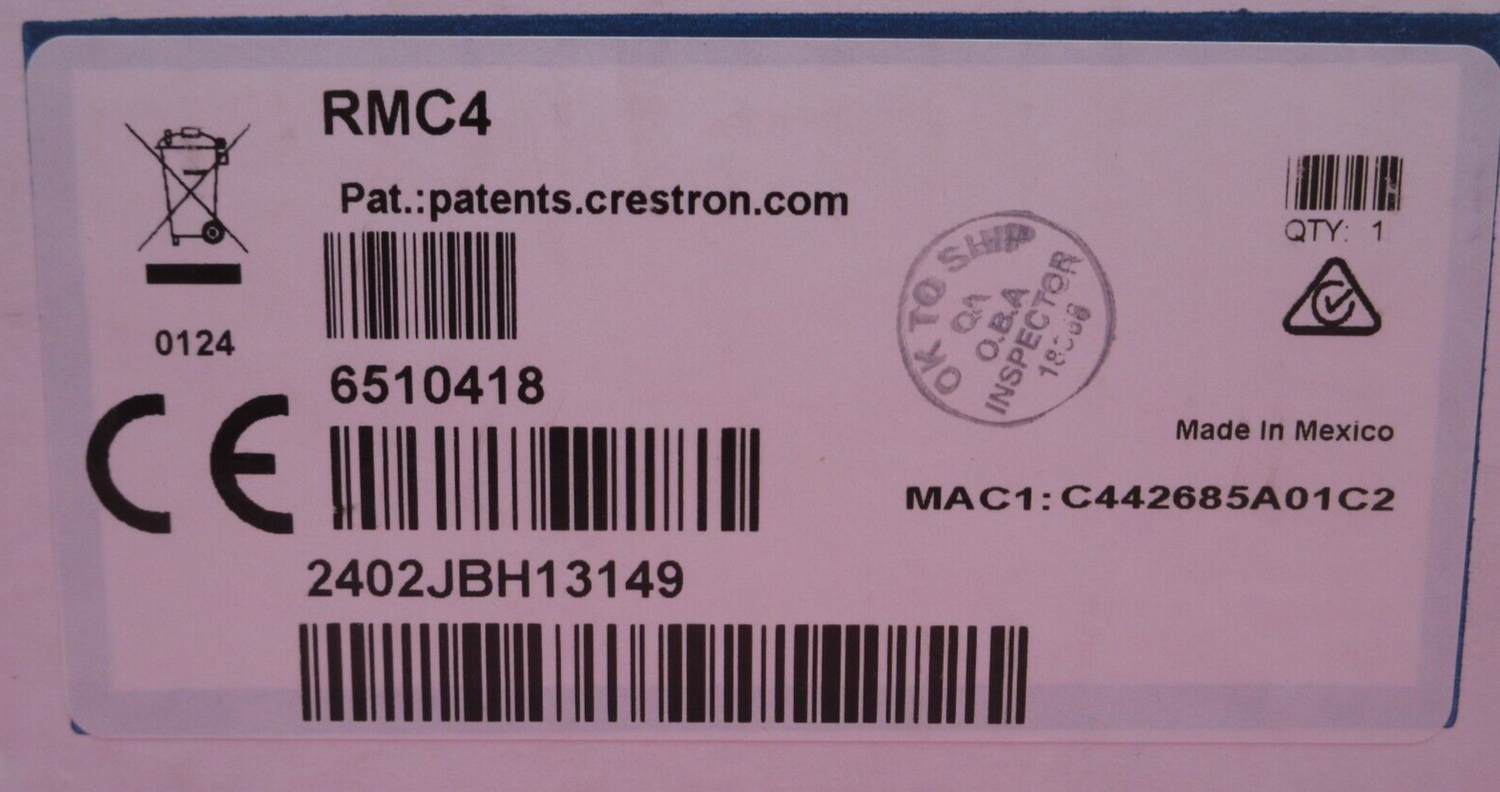

MPN: 6510418, RMC4
NEW Crestron RMC4 4-Series Control and Monitoring System PoE 6510418
Model: RMC4
P/N: 6510418

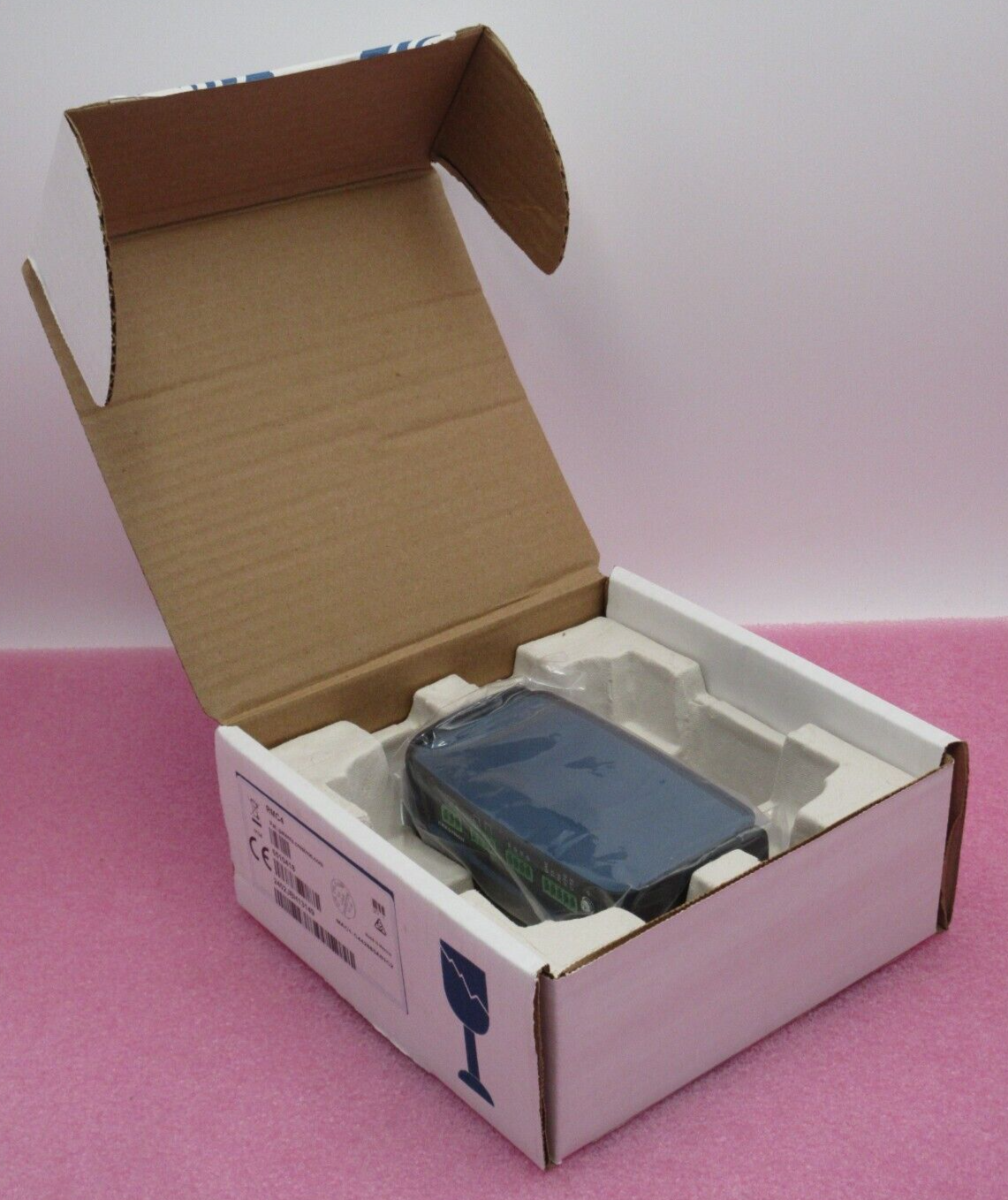

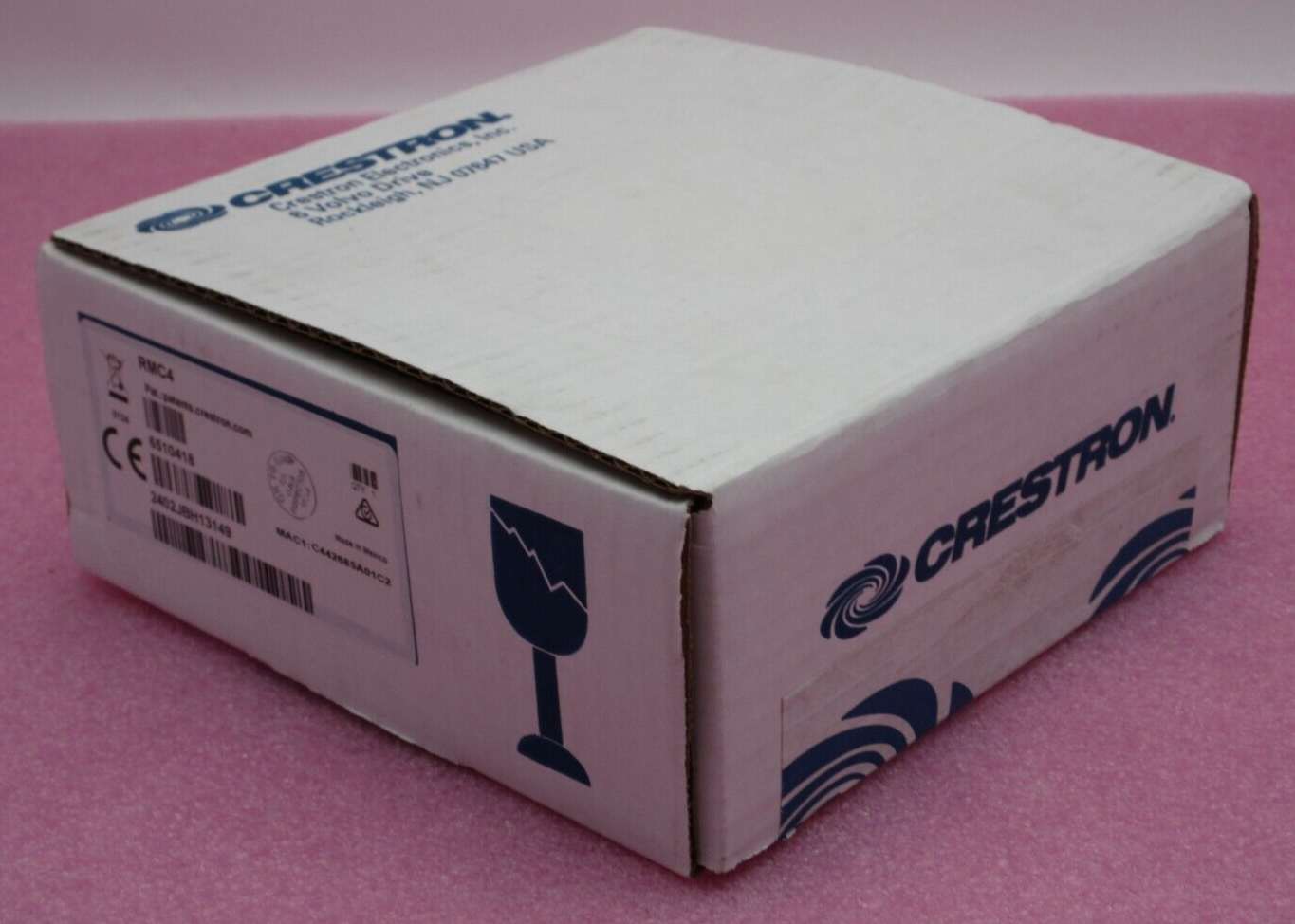

New in Open Box

Included:
1 x NEW Crestron RMC4 4-Series Control and Monitoring System PoE 6510418
Overview:

The Crestron RMC4 provides a secure, high‑performance, cost-effective control processor and interface for controlling and monitoring for a single display device, a small AV system, lighting and shading, climate control, security, energy management, and many other specialized applications. A small form factor allows the RMC4 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The RMC4 can fit easily behind a video display or above a projector, and provides enough control ports to control the display device along with a screen or lift.
4-Series Control Engine
4-Series control systems come equipped with an upgraded multicore CPU, delivering a sizable speed and performance increase compared to all Crestron 3‑Series control processors. The improved performance allows 4-Series control systems to handle the increasing demands of an advanced automated system. Crestron 4-Series delivers a dynamic and secure control system platform capable of managing a room full of disparate technologies.
Reliable networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, as well as remote management through Crestron Fusion software and the XiO Cloud service.
Control Engine
Crestron® 4-Series™; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs (license required1)
Communications
Ethernet    100 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP3, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client
Cresnet    Cresnet master mode
USB    Supports computer console and USB mass storage class devices via the front panel USB OTG (On‑the‑Go) device port
RS-232/422/485    For 2-way device control and monitoring, supports RS-232, RS-422, or RS-485 up to 115.2k baud with hardware and software handshaking
IR/Serial    Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5 V) up to 115.2k baud
Memory
SDRAM    1 GB
Flash    8 GB
External Storage    Supports USB mass storage devices up to 1 TB

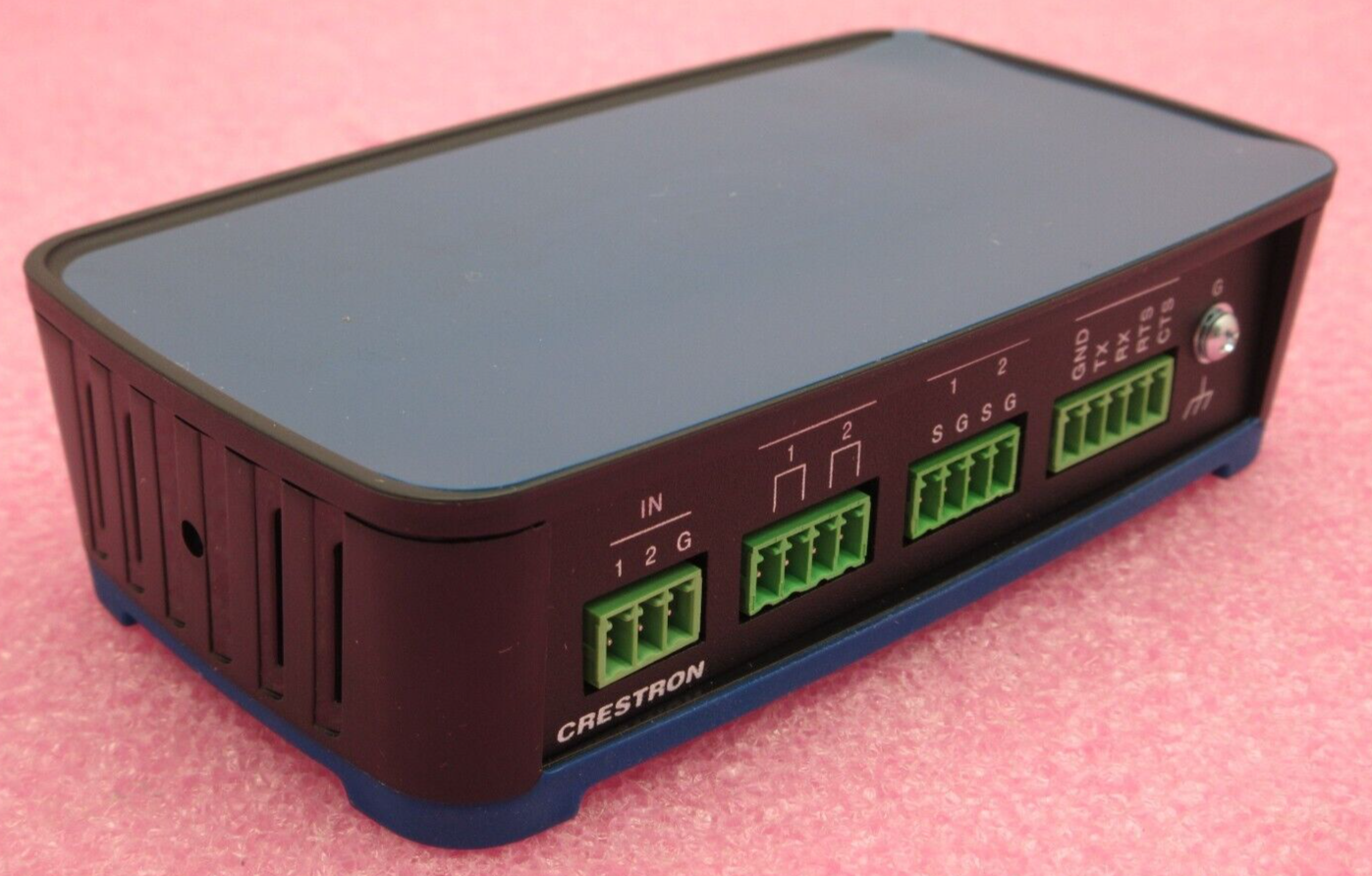

Connectors
USB-OTG    (1) USB Type Micro-AB female;
USB OTG port for computer console and USB mass storage devices
LAN PoE    (1) 8-pin RJ-45 connector, female;
100BASE-T Ethernet port;
PoE (Power over Ethernet) PD (Powered Device) port
NET    (1) 3-pin 3.5 mm detachable terminal block;
Cresnet master port;
Provides data only (no power)2

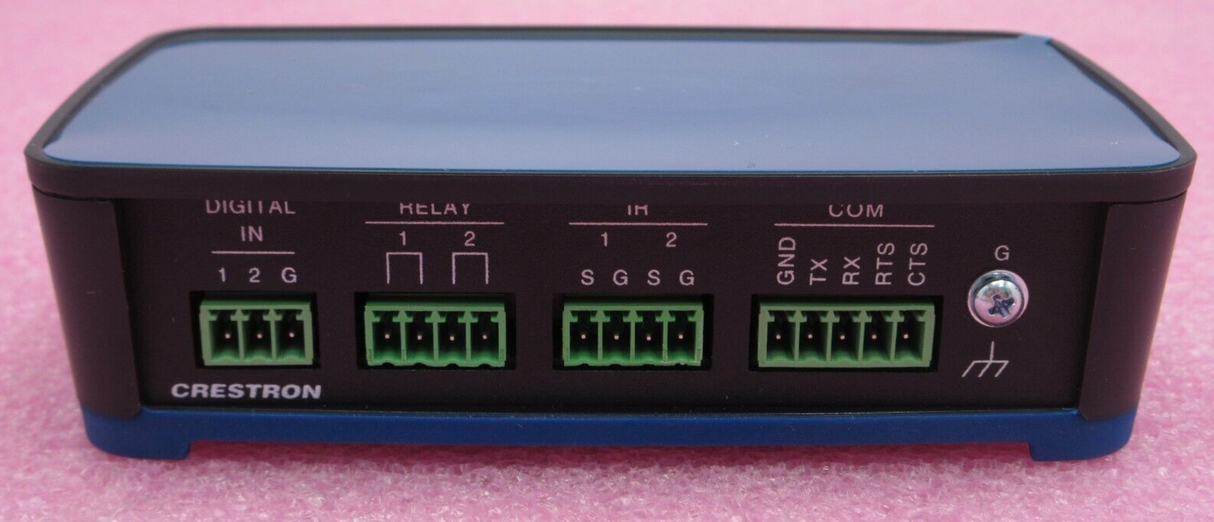

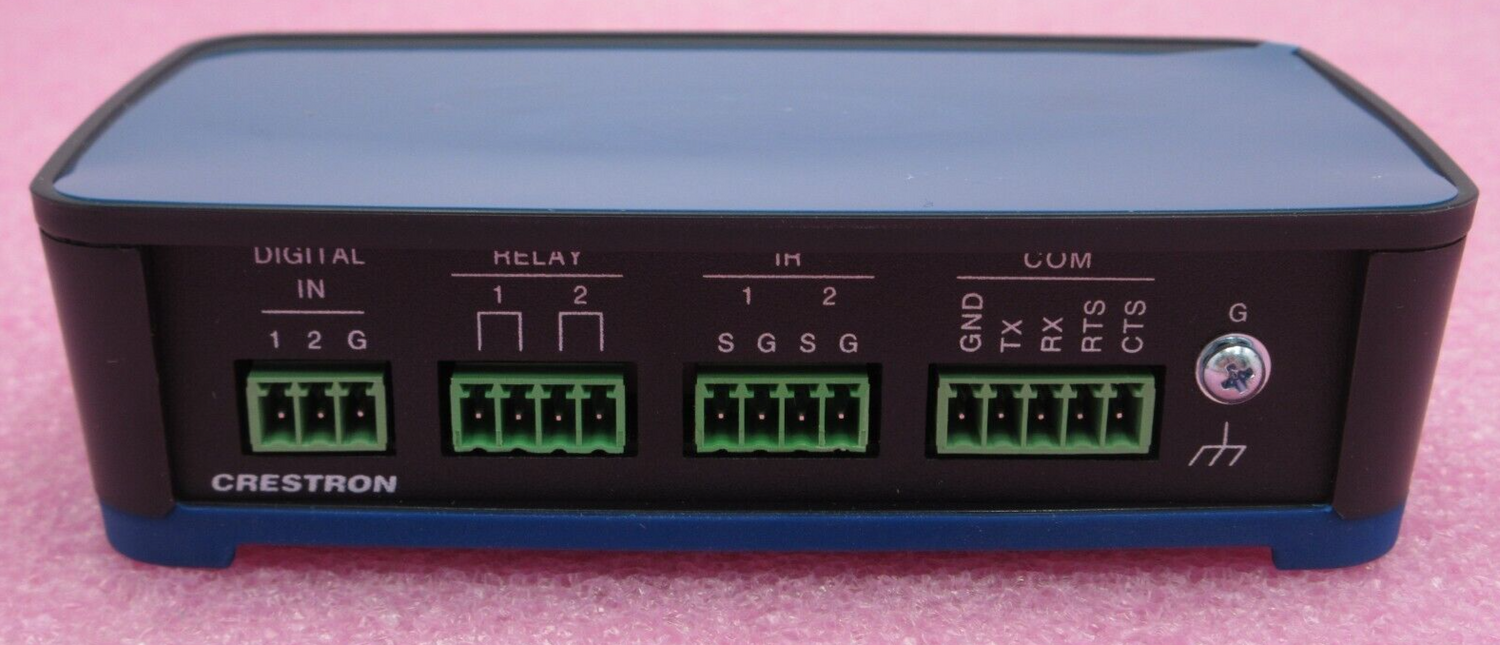

DIGITAL IN 1–2    (1) 3-pin 3.5 mm detachable terminal block;
Comprises (2) digital inputs (referenced to GND);
Voltage Range: Rated for 0–24 VDC;
Input Impedance: 2.2k Ω pulled up to 5 V;
Logic Threshold: >2.0 V low/0 and <1.1 V high/1
RELAY 1–2    (1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) normally open, isolated relays;
Rated 1 A, 30 VAC/VDC;
MOV arc suppression across contacts
IR 1–2    (1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) IR output ports;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0–5 V) up to 115.2k baud;
IRP2 IR emitters sold separately
COM    (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS‑232/422/485 port;
Up to 115.2k baud;
Hardware and software handshaking support
G    (1) 6-32 screw;
Chassis ground lug

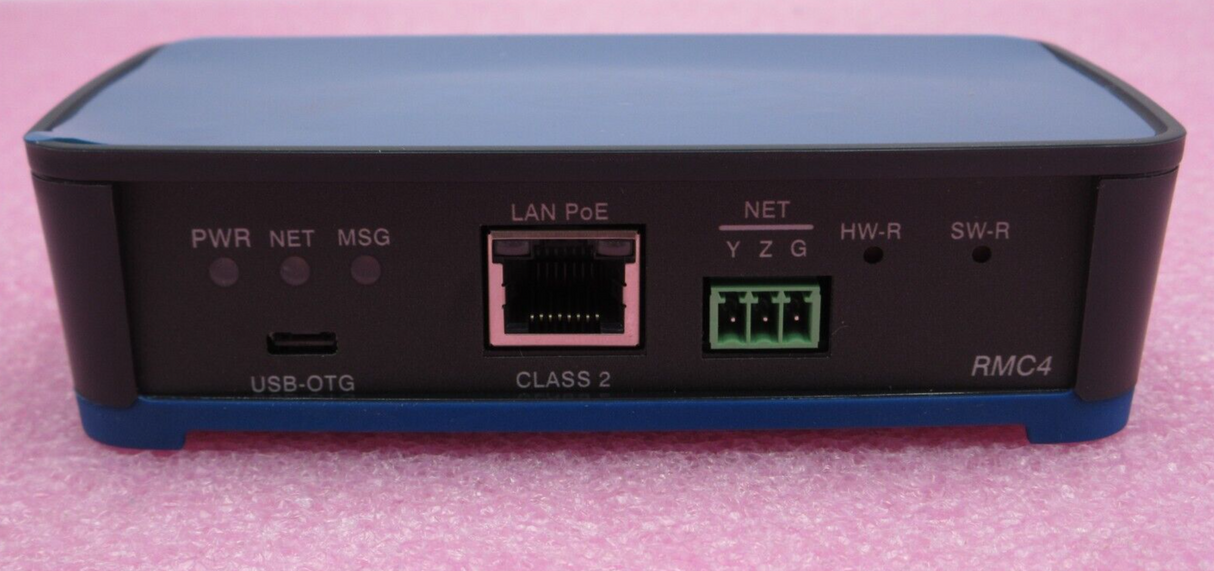

Controls and Indicators
PWR    (1) Bicolor green/amber LED, indicates operating power is present;
Amber indicates that the device is booting and is not yet ready to operate;
Green indicates that the device is ready to operate
NET    (1) Amber LED, indicates communication with Cresnet devices
MSG    (1) Red LED, indicates processor has generated an error message
HW-R    (1) Recessed push button, initiates hardware reset
SW-R    (1) Recessed push button, initiates software reset
LAN PoE    (1) Green and (1) Amber LEDs;
Green LED indicates Ethernet link status and connection speed;
Amber LED indicates Ethernet activity
Power
Power over Ethernet    IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device
Power Consumption    6.5 W
NOTE: The RMC4 does not use or supply any Cresnet power.
Environmental
Temperature    32 to 104 °F (0 to 40 °C)
Humidity    10% to 90% RH (noncondensing)
Heat Dissipation    22 BTU/hr
Construction
Enclosure    IFE micro form factor, black and blue plastic
Mounting    Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount;
Occupies 8 DIN module spaces (144 mm);
Surface/DIN rail mounting bracket included, optional rack mount and pole mount kits sold separately
Dimensions
Height    1.35 in (35 mm);
1.77 in (45 mm) with bracket
Width    5.04 in (128 mm);
5.36 in (137 mm) with bracket
Depth    2.86 in (73 mm)
Weight
6.4 oz (180 g)

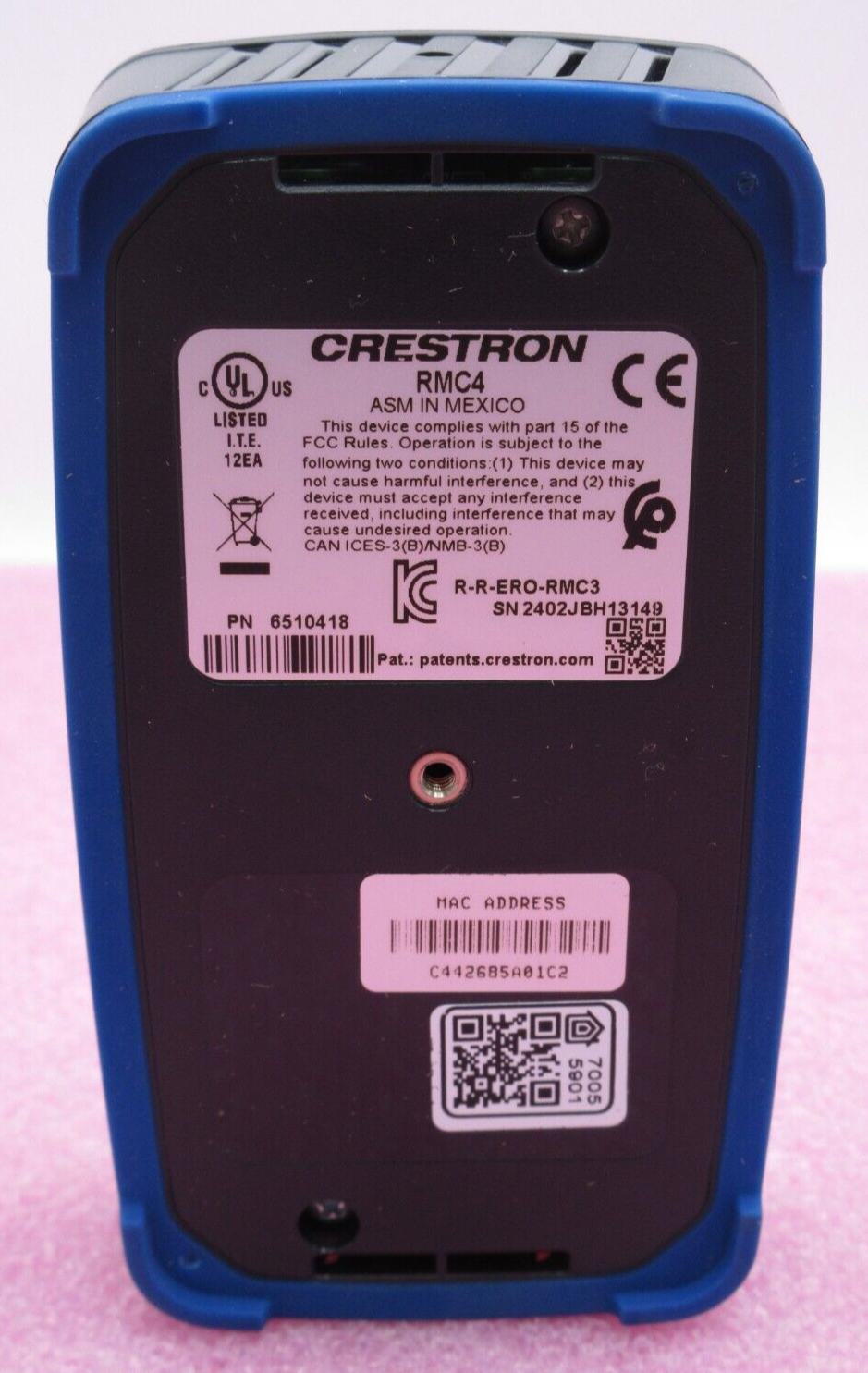

Compliance
Regulatory Model: RMC4;
UL Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
