Australian Monitor Amis 480P 4 Channel 80 Watt 70/100 Volt 8 Ohm Amplifier
Pre-owned
Australian Monitor Amis 480P 4 Channel 80 Watt 70/100 Volt 8 Ohm Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Australian Monitor
Type: Power Amplifier
Audio Inputs: XLR
Number of Channels: 4
Number of Inputs: 4
Model: AMIS480P
MPN: Australian Monitor AMIS 480P, Australian Monitor AMIS480P, AMIS480P, Australian Monitor
Number of Outputs: 4
Australian Monitor Amis 480P 4 Channel 80 Watt 70/100 Volt 8 Ohm Amplifier
In full working order. Powers on. Unable to test further.
Scratches on top and Base of unit.
Included:
1x Australian Monitor Amis 480P 4 Channel 80 Watt 70/100 Volt 8 Ohm Amplifier
More Info:
The Australian Monitor Installation Series AMIS480P is a robust, highly featured 4 channel power amplifier. Offering 4 independent channels, each delivering 80 watts into 4 ohms or 70/100 volt line, the AMIS480P is designed to operate in extreme conditions to give the contractor the most reliable 4 channel amplifier available today.
Engineered with maximum attention to channel isolation, with individual ground lift switches and level control for each channel, the AMIS480P will operate as 4 individual amplifiers in a rack space friendly, 2RU chassis.

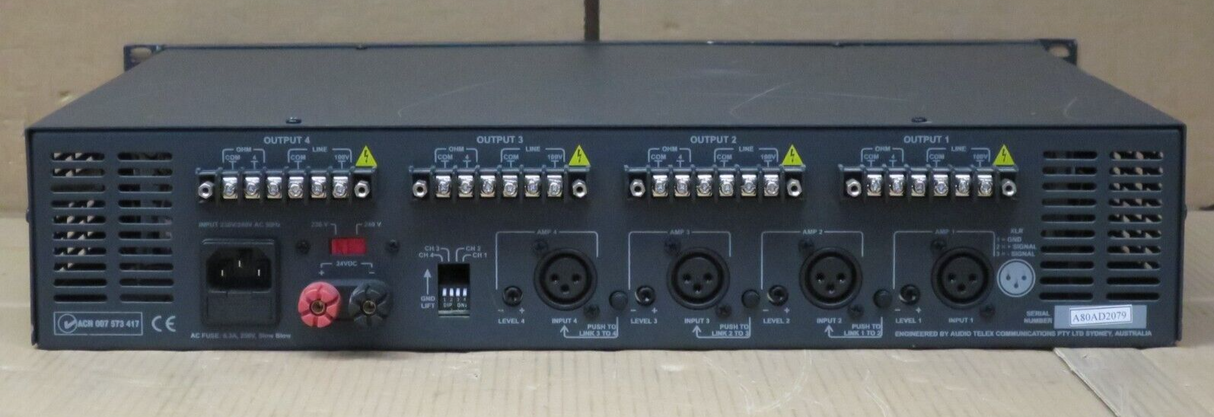

For ease of installation, each channel input can be routed to the next channel via rear panel link switches, eliminating the need for daisy chaining or Y-split cables. The AMIS480P also offers signal present and clip LED indicators for each channel as well as a thermal protect indicator.
Specifications:
Power Output: 4 x 80W
Freq. Response (1W): 80Hz - 20kHz
DISTORTION: 1% THD, all channels drive
Power Bandwidth: 85Hz - 20kHz
S/N Ratio: 94dB (ref 100V)
Crosstalk: 1kHz 80dB; 20Hz - 20kHz Better than 60dB
Input Sensitivity: 0.775V RMS (0dBu)
Input Impedance: 20K
Voltage Gain (pot at max): 100V out 129 (42dB), 70V out 90 (39dB), 4ohm out 23 (27dB)
Output Regulation: 95% (1kHz)
Dimensions (h x w x d): 4.36" x 19" x 17"
Weight: 44lb
