Crestron DM-MD6X4 DigitalMedia DM Media Distribution Center HD Matrix Switcher
Pre-owned
Crestron DM-MD6X4 DigitalMedia DM Media Distribution Center HD Matrix Switcher is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Crestron
Type: Distribution Switcher
Number of Inputs: 6
Model: DM-MD6X4
Connectivity: HDMI,USB,RJ-45

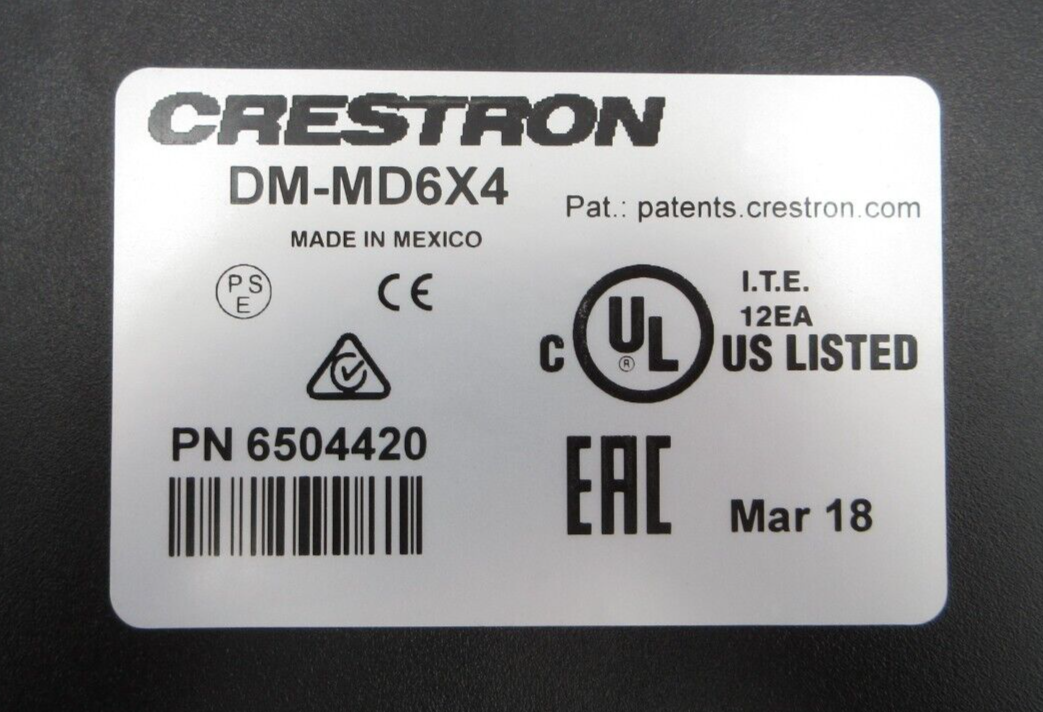

MPN: DM-MD6X4,6504420
Number of Outputs: 4

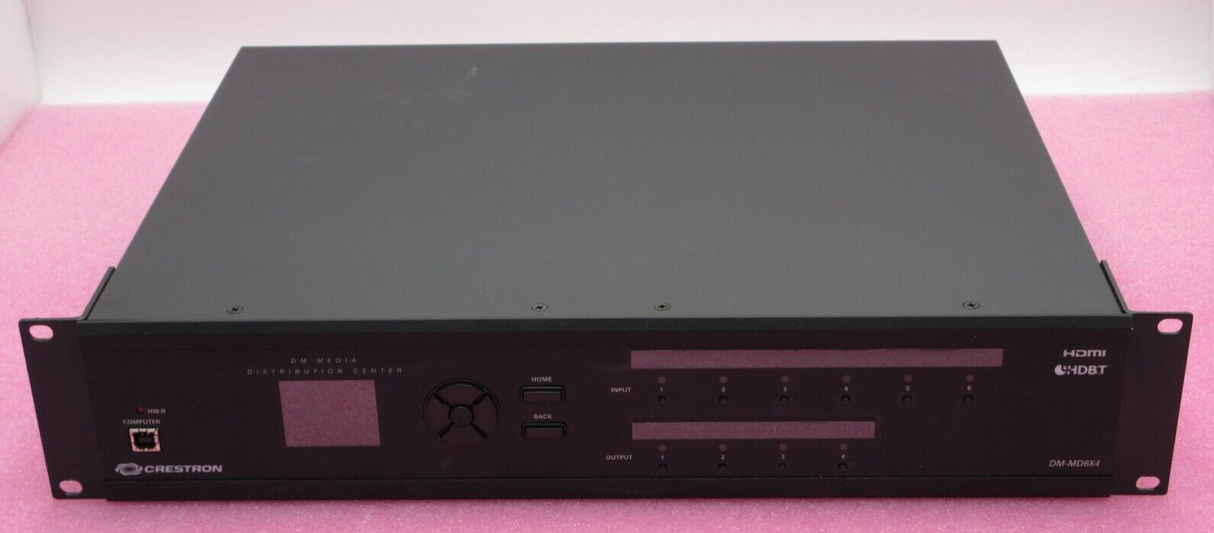

Crestron DM-MD6X4 DigitalMedia DM Media Distribution Center HD Matrix Switcher
In good condition and full working order
Included:
1x Crestron DM-MD6X4 DigitalMedia DM Media Distribution Center HD Matrix Switcher
Description:
DigitalMedia™ isn't just for large, expensive homes and facilities. The DM-MD6X4 DigitalMedia Distribution Center provides a very simple and cost-effective solution for distributing multiple high-definition sources to up to four rooms as part of a complete Crestron® system. Featuring DigitalMedia 8G+® and HDBaseT® technologies, the DM-MD6X4 delivers ultra-reliable, ultra high-bandwidth signal routing over inexpensive CAT5e wiring[1]. Everything about the DM-MD6X4 is engineered to deliver a transparent user experience and the highest performance.
HD Matrix Switcher:

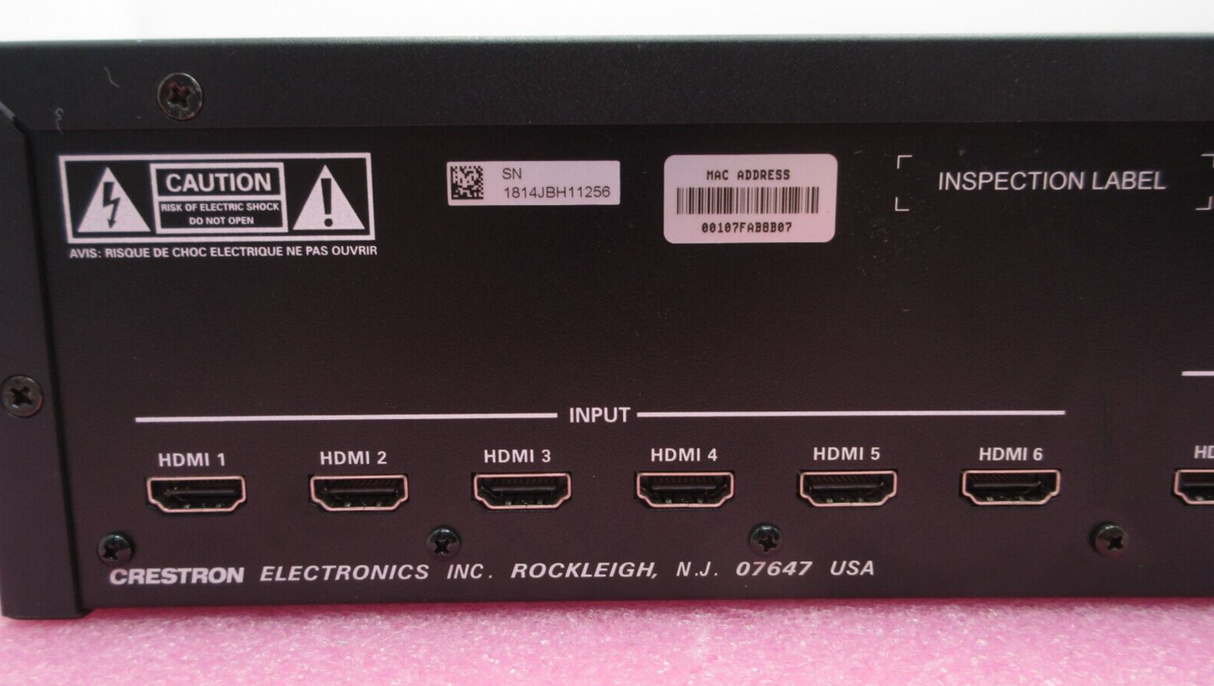

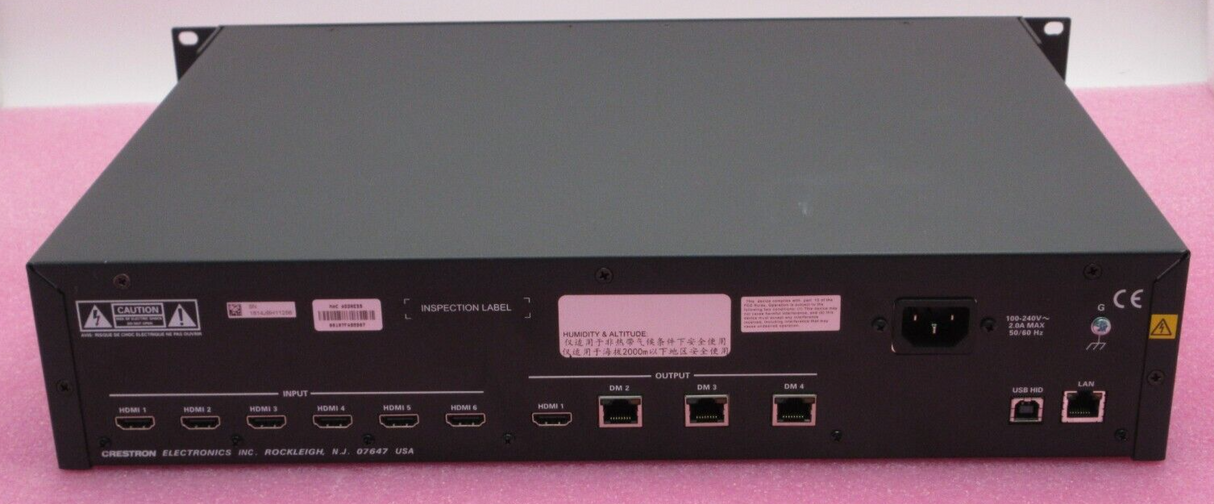

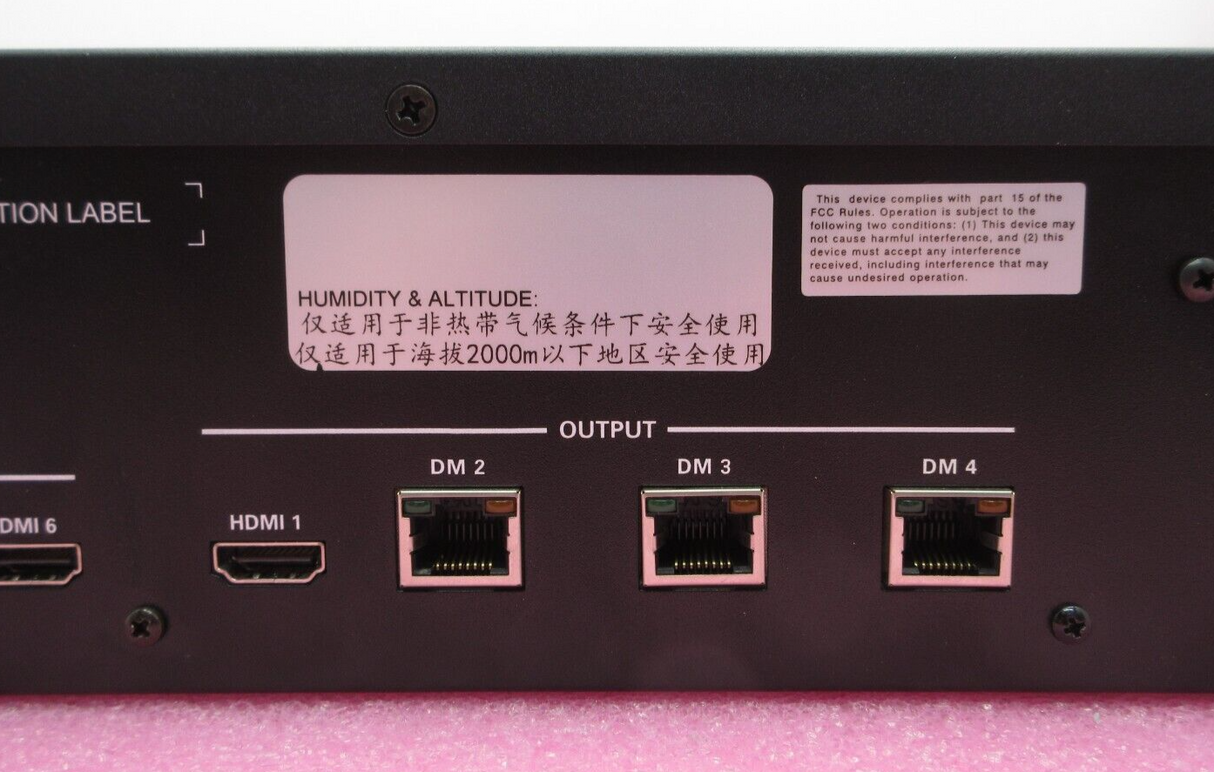

The DM-MD6X4 provides six HDMI® inputs to handle HDTV receivers, DVD or Blu-ray Disc® players, media servers, computers, and other HD digital sources. Outputs include one HDMI and three DigitalMedia ports, furnishing simple one-wire connectivity for a local display or audio processor, and three additional displays anywhere in the house. Six-by-four matrix switching allows any display to view any source at any time.
Key Features:
Provides a low-cost, high-performance multiroom HD AV signal routing solution
Distributes uncompressed digital video and audio over CAT5e twisted pair wire [1]
Affords a true one-wire solution using DigitalMedia 8G+® technology
HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
Features independently-switchable DM 8G+™ or HDBaseT outputs for 3 remote displays
Allows up to 330 ft (100 m) wire distance to each display
Includes one HDMI® output for a local display or audio processor
Provides inputs for 6 HDMI, DVI, or DisplayPort Multimode sources [4]
Handles video resolutions up to Full HD 1080p
Handles computer resolutions up to WUXGA
Handles 3D video and Deep Color
Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
HDCP compliant
QuickSwitch HD® technology manages HDCP keys for fast, reliable switching
Auto-Locking™ technology achieves rapid switching between disparate sources
Performs automatic AV signal format management via EDID
Allows independent scaling for every display through select DM® receivers [2]
Enables USB HID mouse and keyboard signal extension
Expanded USB routing capabilities available using USB-EXT-DM USB over Ethernet Extenders [3]
Includes integrated Ethernet switch
Private Network Mode — requires just one IP address for the complete DM system
Provides Power over DM for PoDM compatible receivers

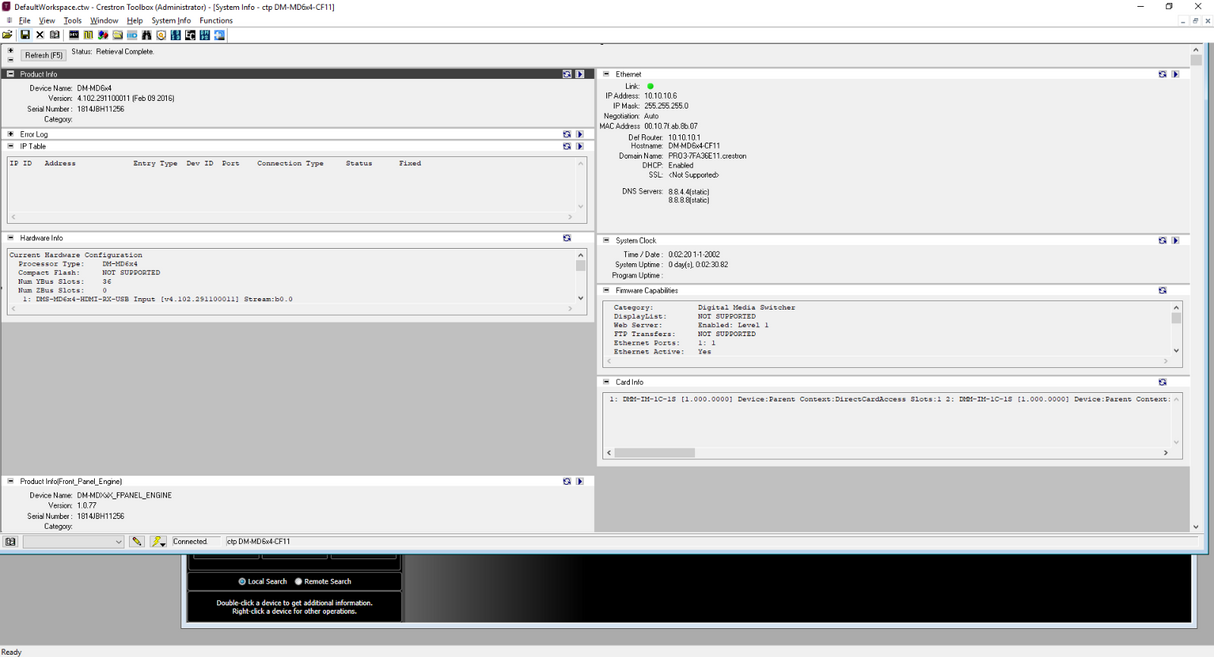

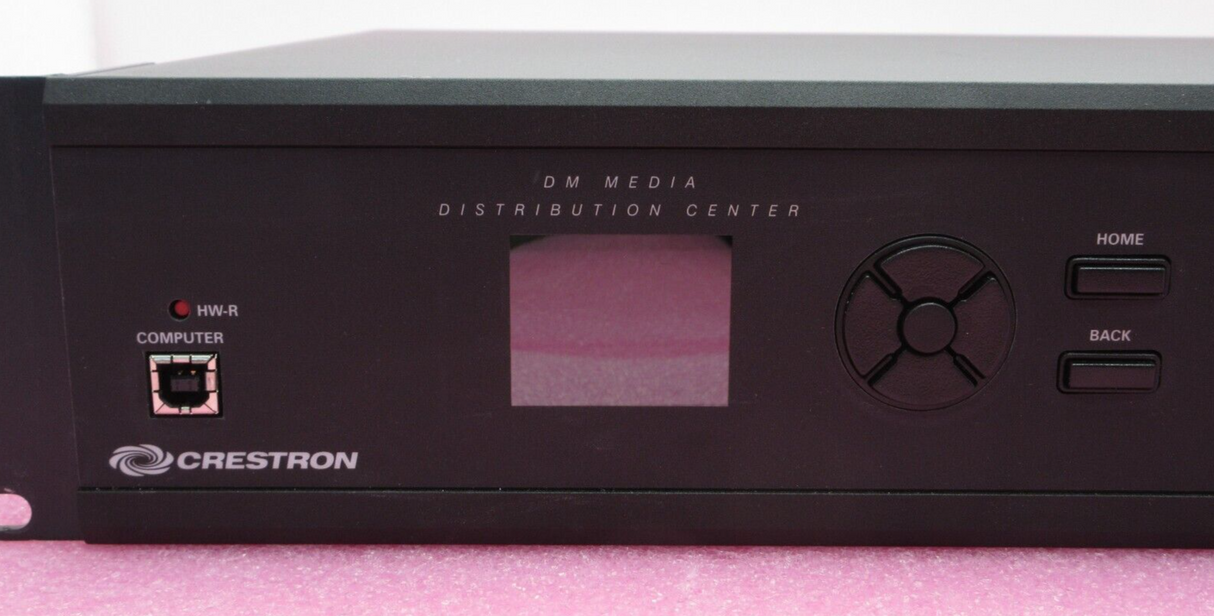

Provides easy setup and diagnostics tools via front panel or software
Includes built-in universal power supply
Allows native Crestron® system integration via Ethernet
Standard component width or 2-space rack-mountable
Specifications:
Video
Switcher 6x4 digital matrix switch, Crestron QuickSwitch HD®
Input Signal Types HDMI®, DVI[4], DisplayPort Multimode[4]
Output Signal Types HDMI, DVI[4], DM 8G+™ (DigitalMedia™ over one CAT type twisted pair copper wire), HDBaseT®[1]
Formats DM 8G+, HDBaseT, & HDMI w/Deep Colour & 3D; DVI; HDCP content protection support
Input Resolutions, Progressive 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1080@24Hz, 2048x1152@60Hz, plus any other resolution allowed by HDMI up to 165MHz pixel clock
Input Resolutions, Interlaced 720x480@30Hz (480i), 720x576@25Hz (576i), 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165MHz pixel clock
Output Resolutions Matched to inputs
Crestron DM-MD6X4 DigitalMedia DM Media Distribution Center HD Matr...
