Cobham Satcom Explorer 710 Portable Satellite BGAN Terminal TT-3703B TT-3732B

Brand: Cobham Satcom
Type: Portable Satellite BGAN Terminal
MPN: Explorer 710
Personalise: No
Cobham Satcom Explorer 710 Portable Satellite BGAN Terminal TT-3703B TT-3732B

In good condition. Unit powers on when power supply connected. Faulty Battery.

Raising the BGAN bar
EXPLORER 710 is a portable satellite terminal set to usher in a new era in the world of BGAN by setting new standards for size, speed and features.

Smallest and Lightest
The smallest and only full Class 1 BGAN terminal positioned to support broadcasters by enhancing the quality of mobile outside broadcasting.

Fastest ever BGAN
The first and only BGAN terminal to support the full High Data Rate on-demand streaming service from Inmarsat. With speeds averaging 650 kbps, the EXPLORER 710 sets a new standard for mobile video newsgathering. Double the speed with Plug & Play bonding; simply connect two EXPLORER 710 terminals with an ethernet cable and achieve streaming rates over 1 Mbps.

Smart and Easy
EXPLORER 710 introduces smart devices to the world of BGAN, enabling users to connect their own smart phone for terminal control, voice calls and connectivity. The EXPLORER Connect App is available on Android and IOS.

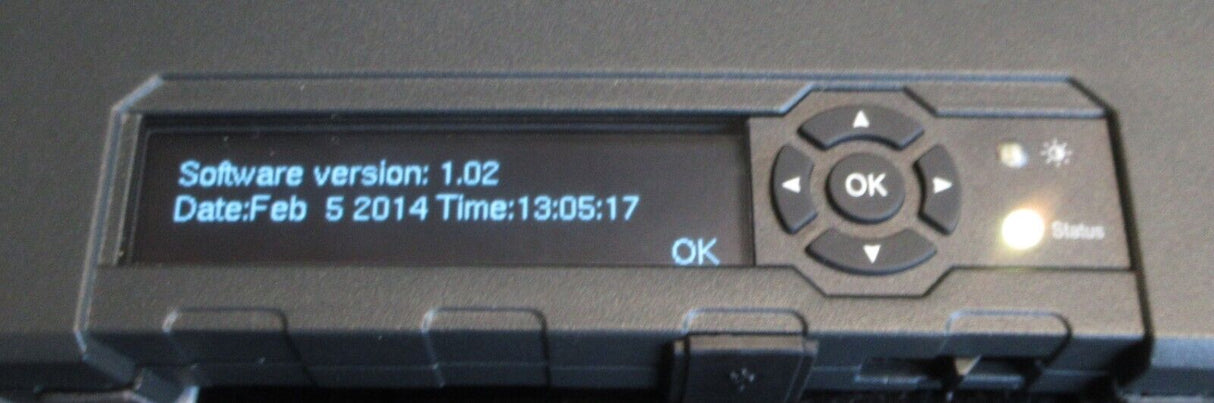

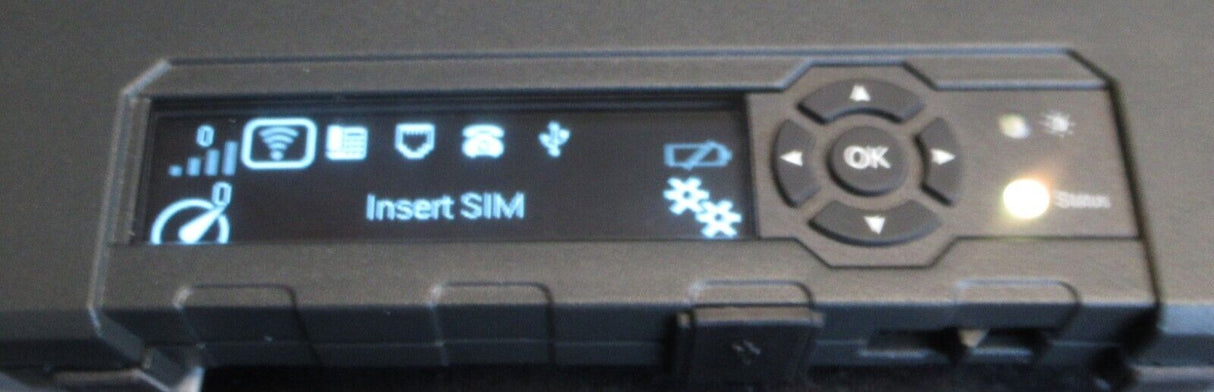

Other features include a USB host interface, hot-swappable batteries, a large easy-to-use LED display and multiple interfaces to support a wide range of applications.

Features:
Built-in SIP server
Embedded Webserver
Advanced Router with admin control
Wireless Access Point
Battery hot-swap and Built-in BGAN bonding
Remote activation and remote management

Dimensions:
Total H/W/D: 332 / 279 / 54 mm 13.07 / 10.98 / 2.13 inches
Total weight: 3.5 kg / 7.7 lbs (incl. battery)
Antenna: 1.9 kg / 4.2 lbs
Transceiver (incl. battery): 1.6 kg / 3.5 lbs

Global Services:
Voice: 4 kbps AMBE+2
Premium voice: 3.1 kHz audio, 64 kbps
Standard IP: Up to 492 kbps
Streaming IP: 32, 64, 128 kbps (256 kbps BGAN X-Stream)
HDR Streaming: Min. 600 kbps Min. 300 kbps (½ channel HDR)
ISDN: UDI 64 kbps / RDI 56 kbps
SMS: Not supported

Inmarsat frequencies:
1518.0 - 1525.0 MHz (Rx) (EMEA)
1525.0 - 1559.0 MHz (Rx)
1626.5 - 1660.5 MHz (Tx)
1668.0 - 1675.0 MHz (Tx) (EMEA)

Interfaces:
1 x Analogue RJ-11 phone/fax interfaces
2 x LAN (RJ-45) interface
Power over Ethernet: PoE Cl. 2 on one RJ-45 interface
Max. cable length: 100m / 328ft (Cat5 UTP)
1 x USB host interface
2.0 (host), Charging up to 2A
1 x ISDN interface
Connector type: RJ-45
Max. units per port: 8, max. total power supplied 1W
1 x Transceiver / Antenna interface
Connector type: TNC-TNC
Max. cable loss: 1.4 / 20dB @ 1.5GHz

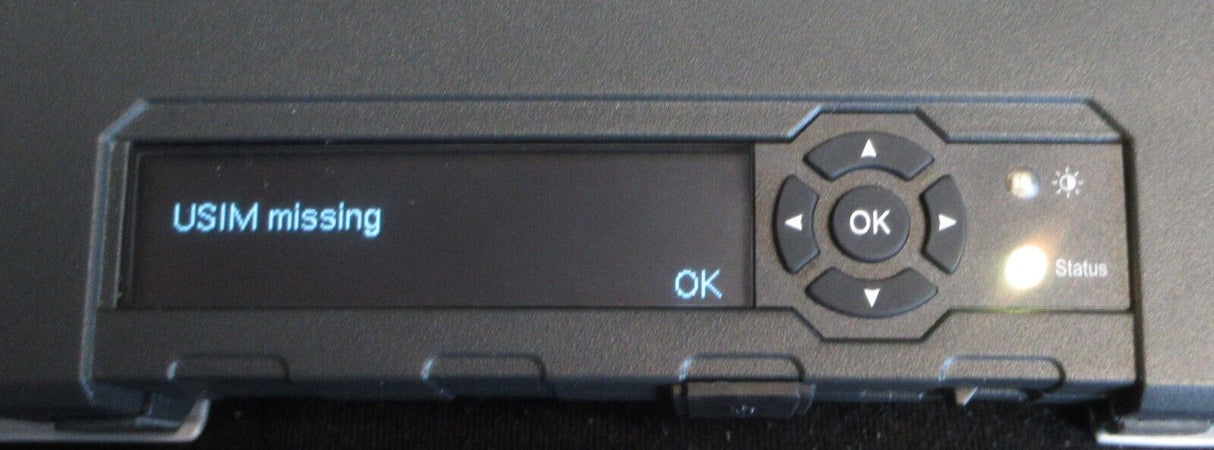

1 x BGAN SIM-Card slots
WLAN Access Point
Standard: IEEE 802.11 b/g

Environmental Conditions:

Temperature:
Operational (ambient): -25°C to +55°C / -13°F to +131°F
Storage (excl. battery): -40°C to +80°C / -40°F to +176°F

Battery storage temperature:
1 month: -20°C to +60°C / -4°F to +140°F
3 months: -20°C to +45°C / -4°F to +113°F
1 year: -20°C to +20°C / -4°F to +68°F
Water and dust: Transceiver: IP52 / Antenna: IP66
Relative humidity: 95% non-condensing at +40°C / +104°F

Power:
DC input range: 10-32VDC
Power consumption Intelligent Power Management 65W (max.)
AC/DC power supply Input
100-240VAC, 47-63Hz, 65W=
Output: 19VDC
Connector type: 2.5 / 5.5 mm power jack
Battery: Lithium ion, rechargeable
Stand-by time: 36 hours
Transmit time, max.: 2h30m @ 144 kbps
(25°C / 77°F) 1h30m @ 650 kbps
Receive time, max.: 3h30m @ 492 kbps

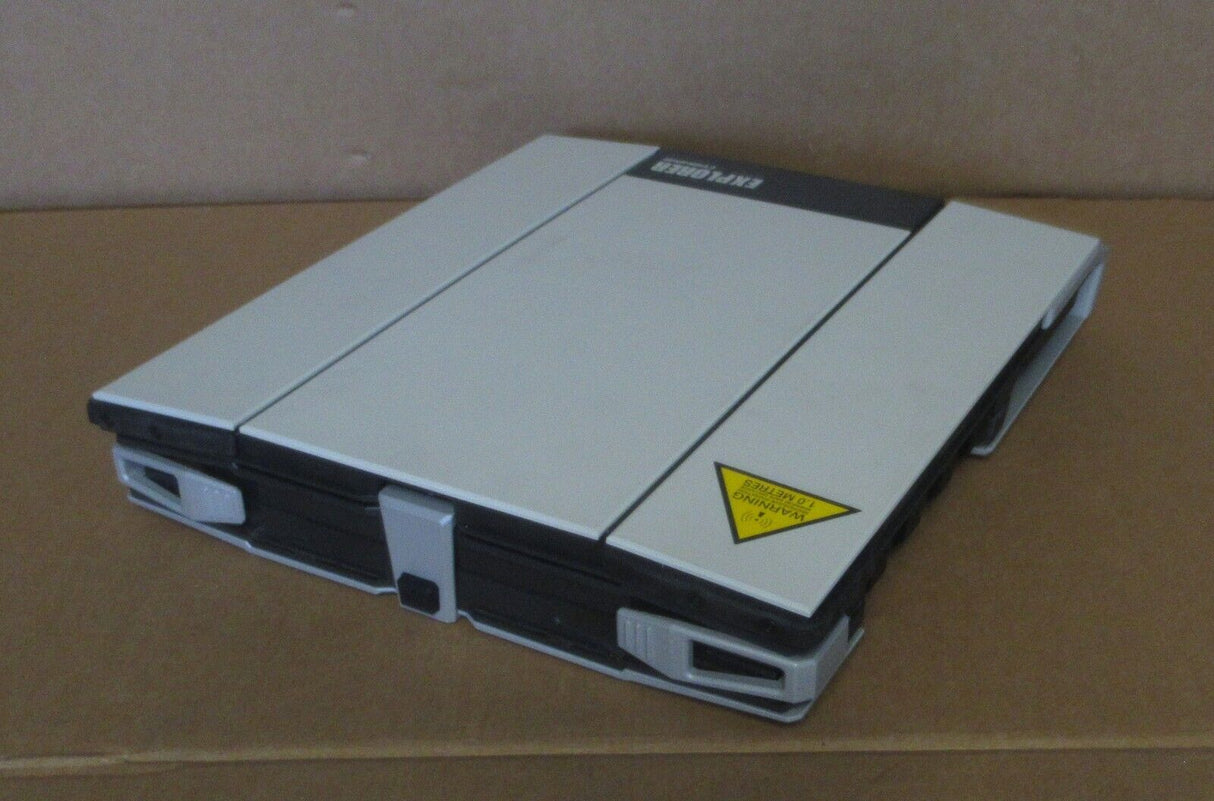

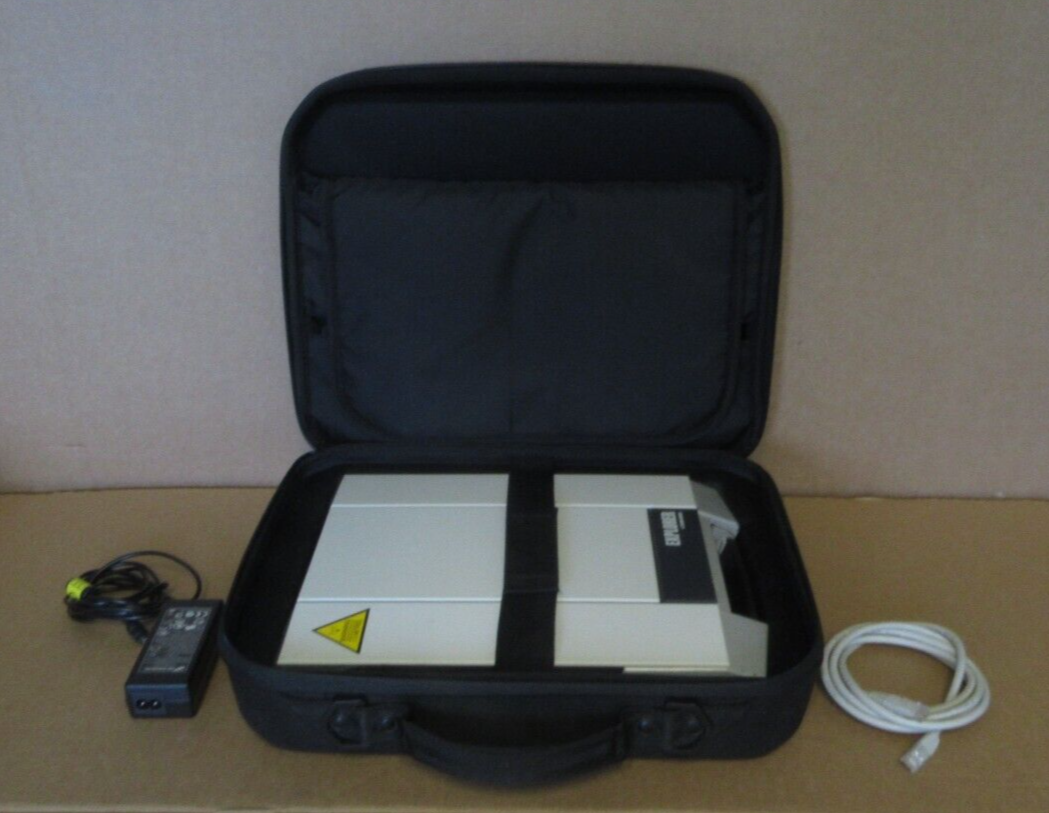

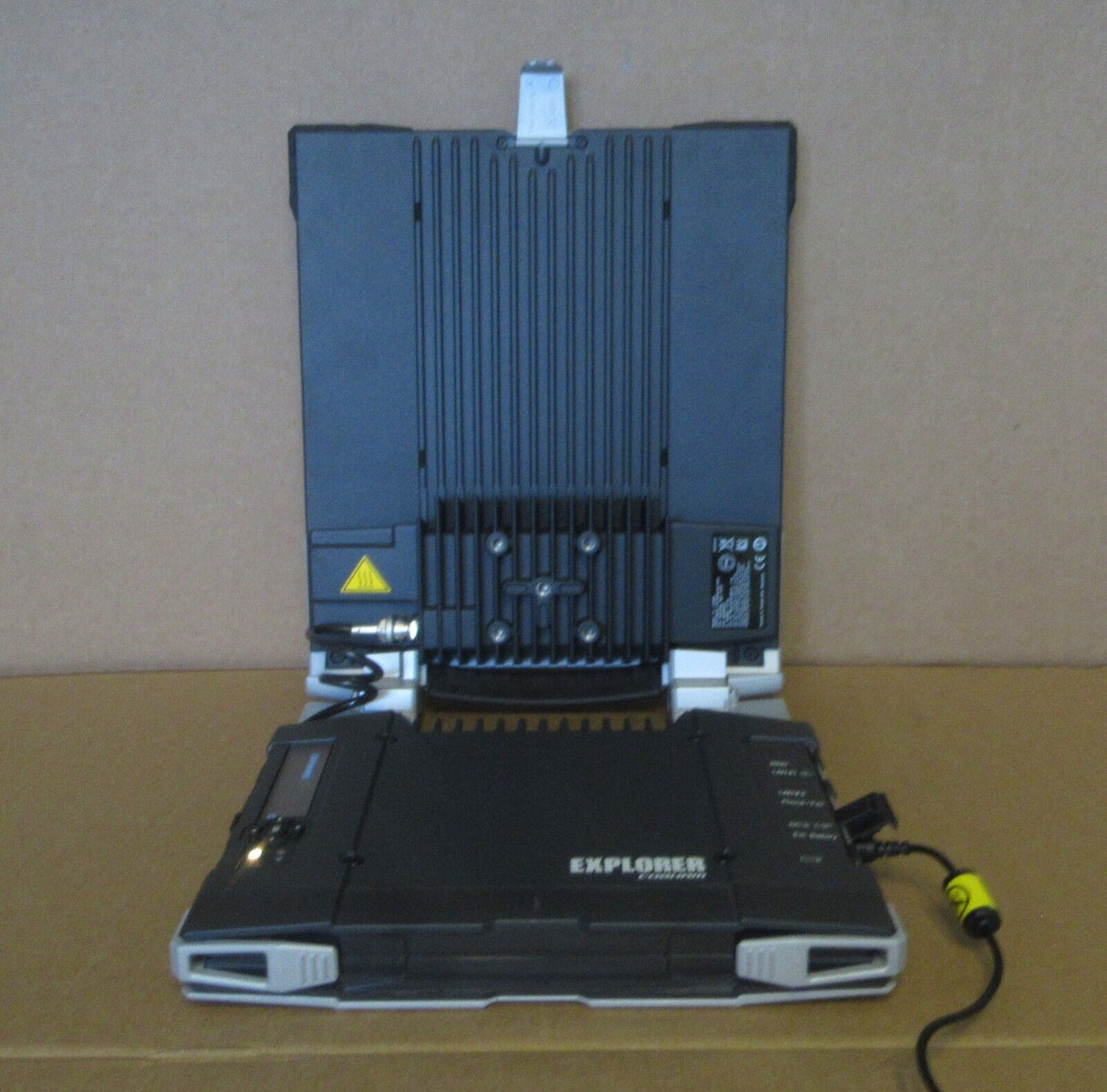

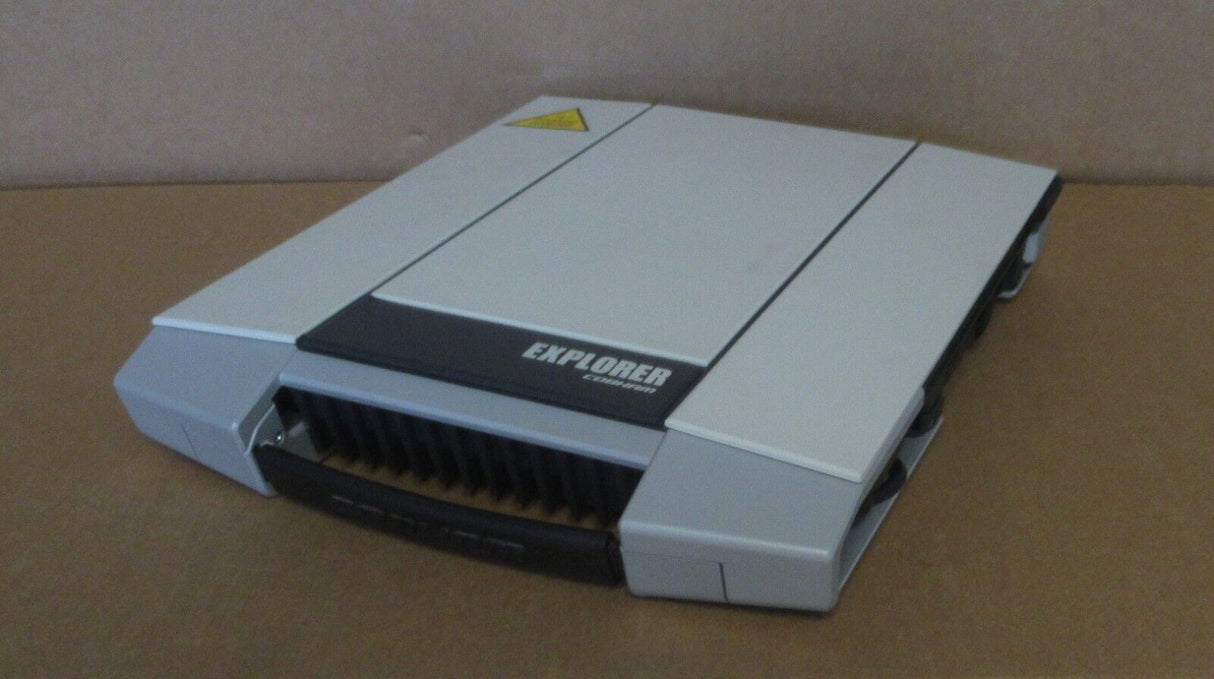

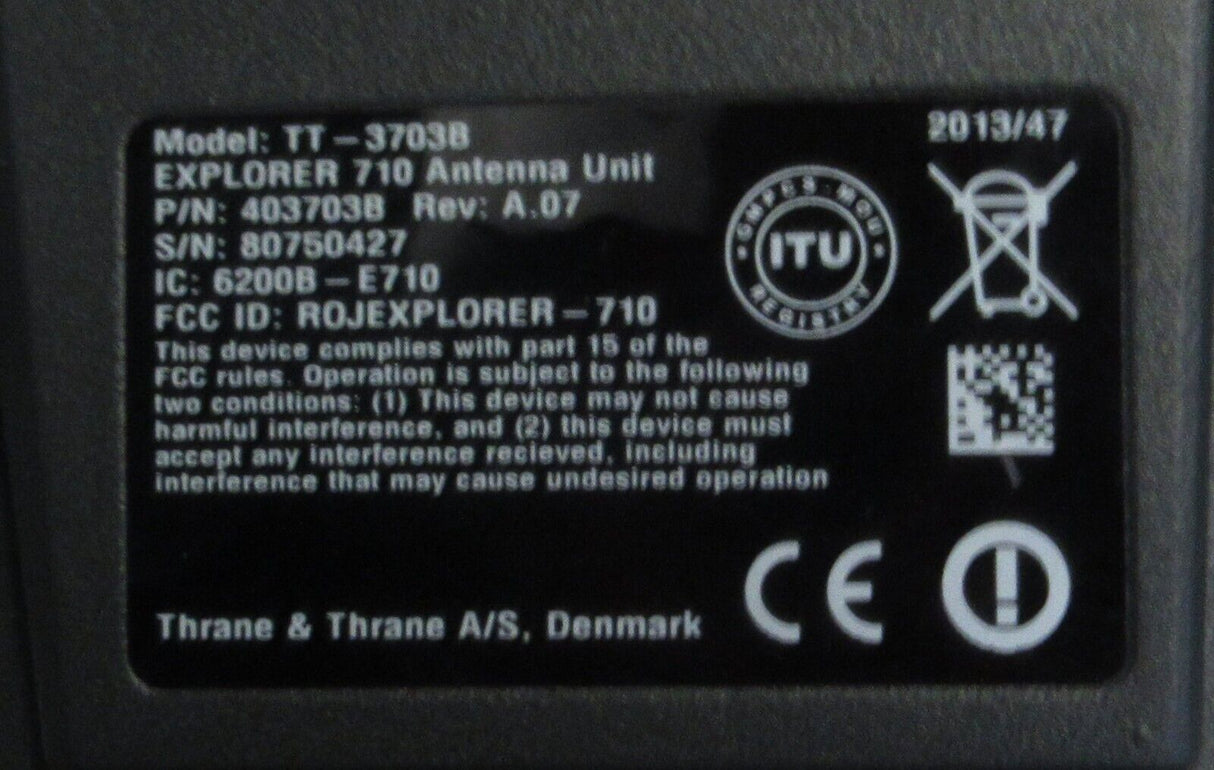

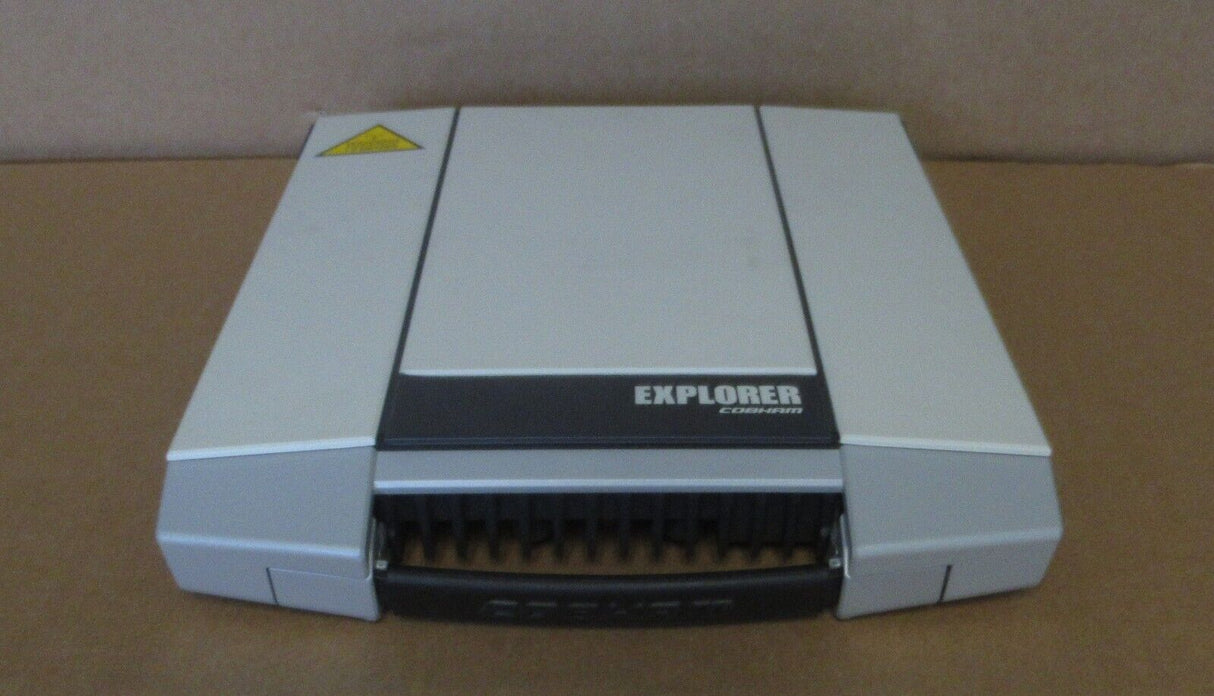

1x Cobham Explorer 710 Portable Satellite BGAN Terminal TT-3703B Antenna Unit - 403703B

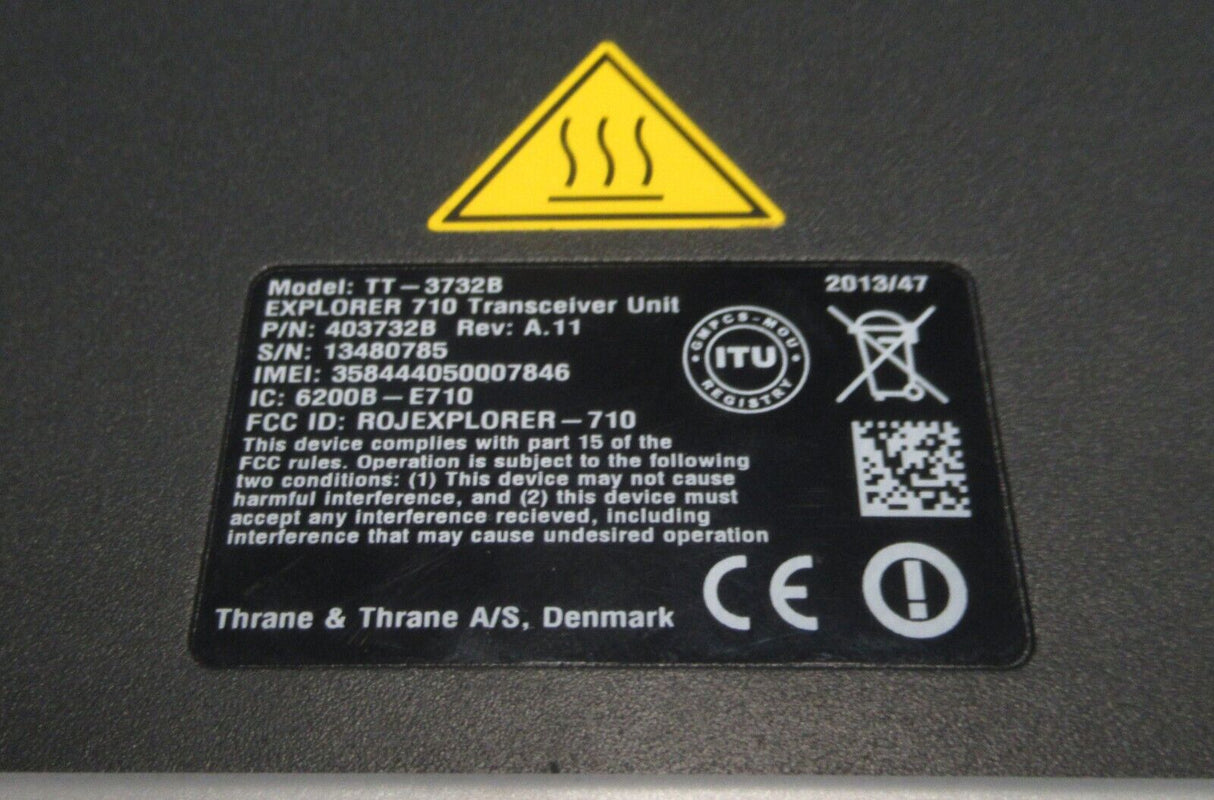

1x Cobham Explorer 710 Transceiver Unit TT-3732B - 403732B
1x Power Supply
1x Ethernet RJ-45 Cable

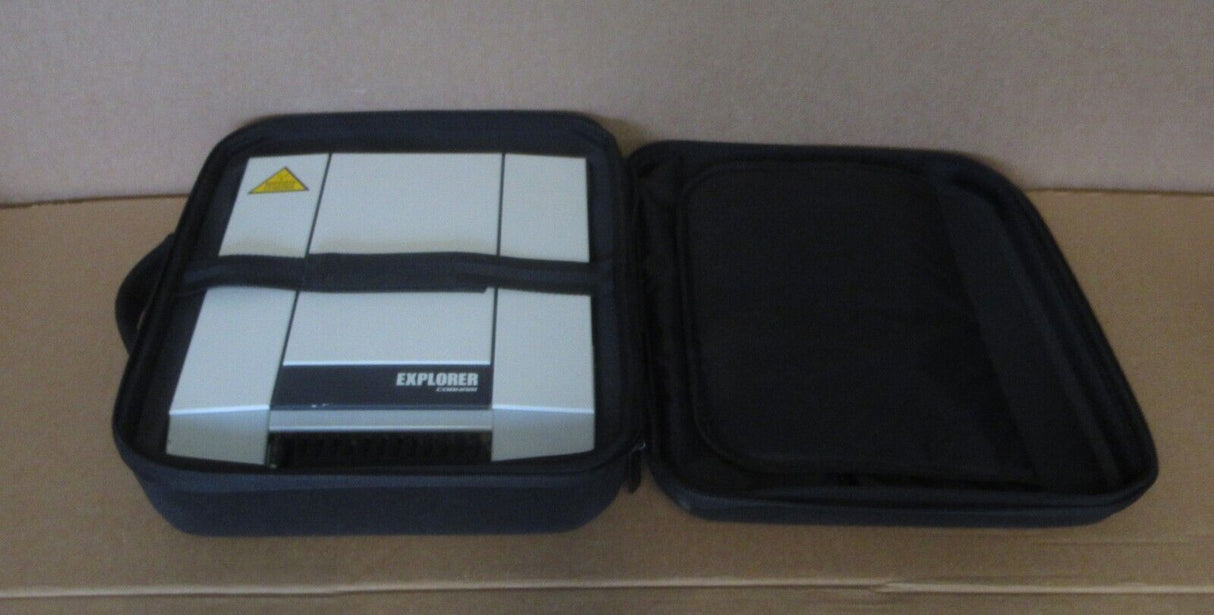

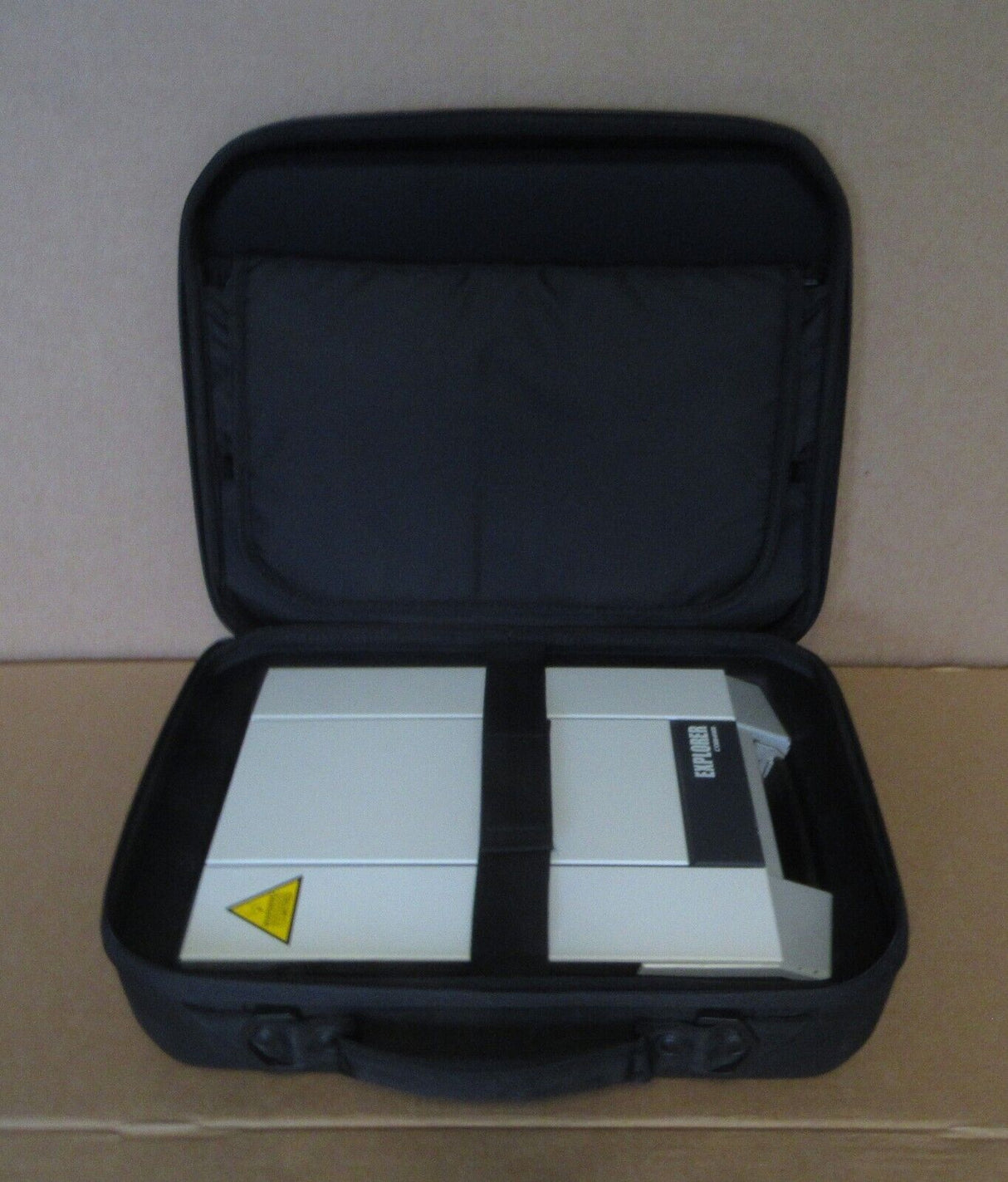

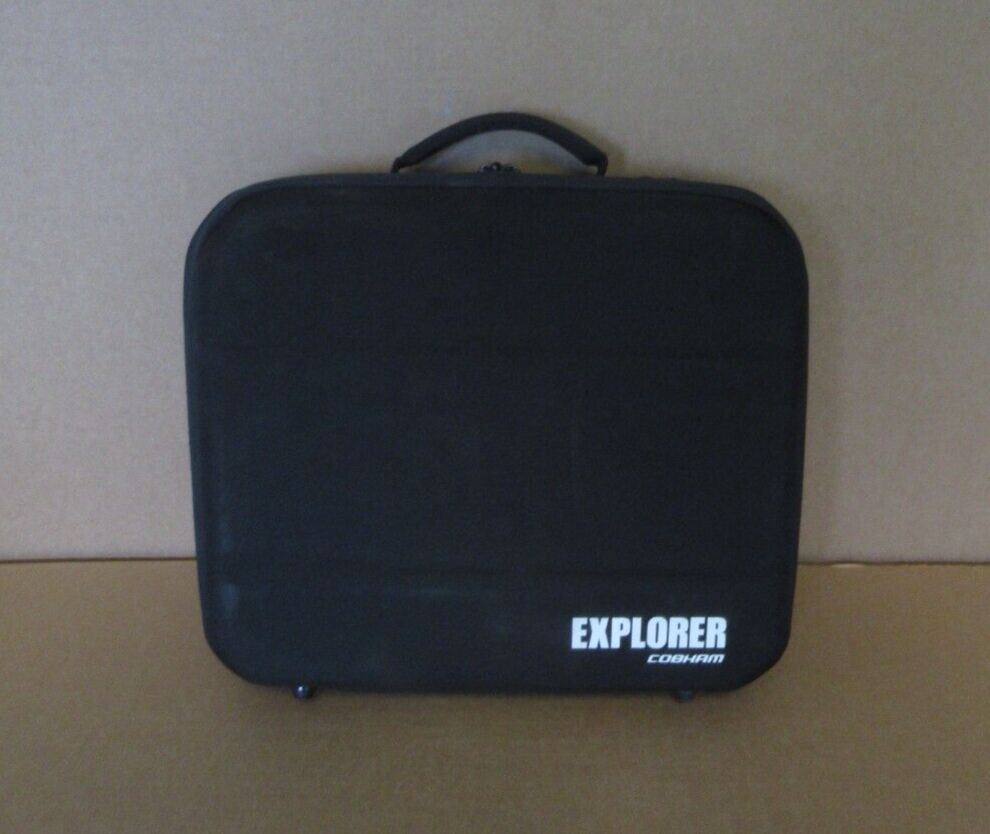

1x Soft Carry Case
