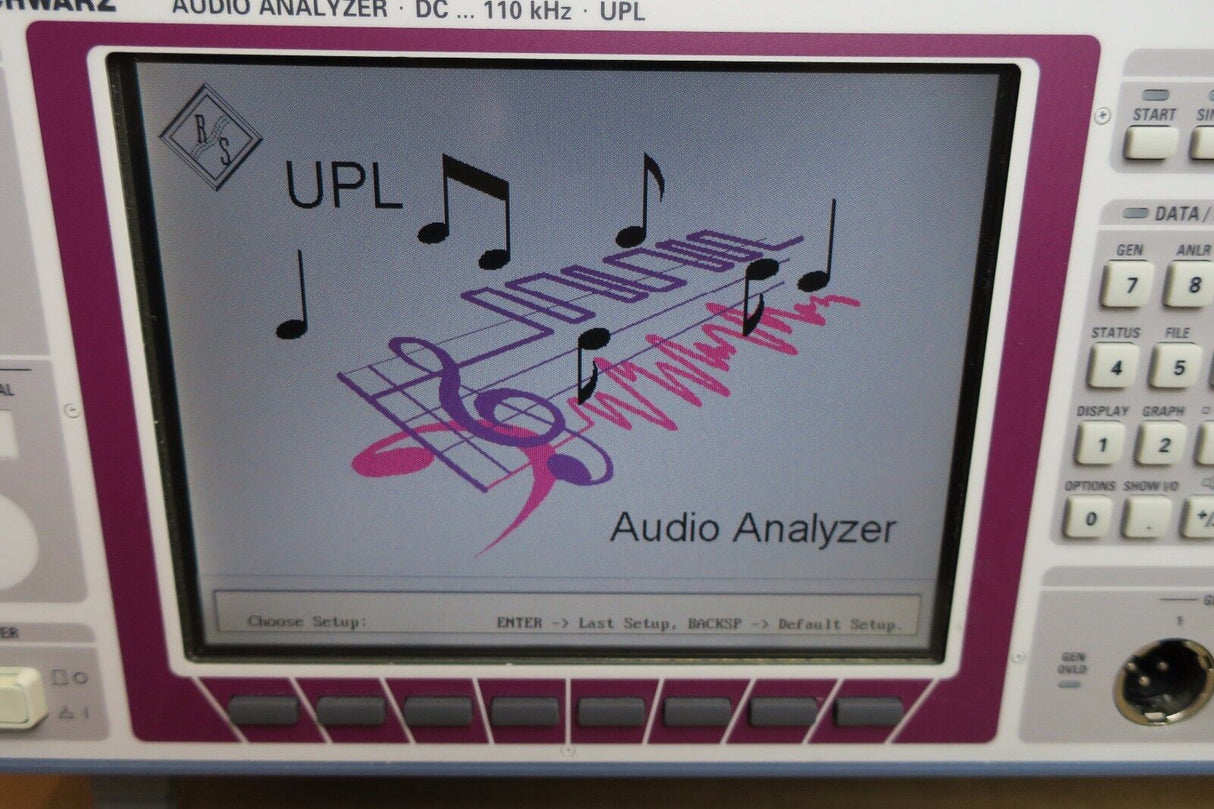

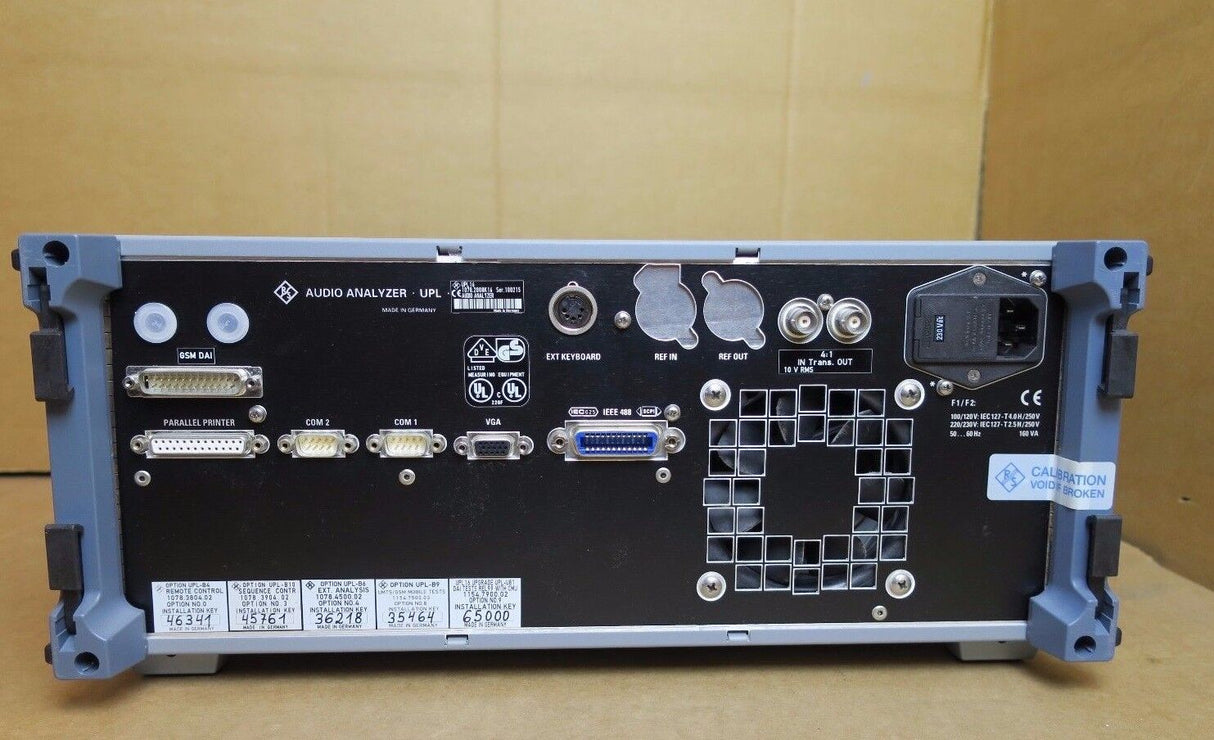

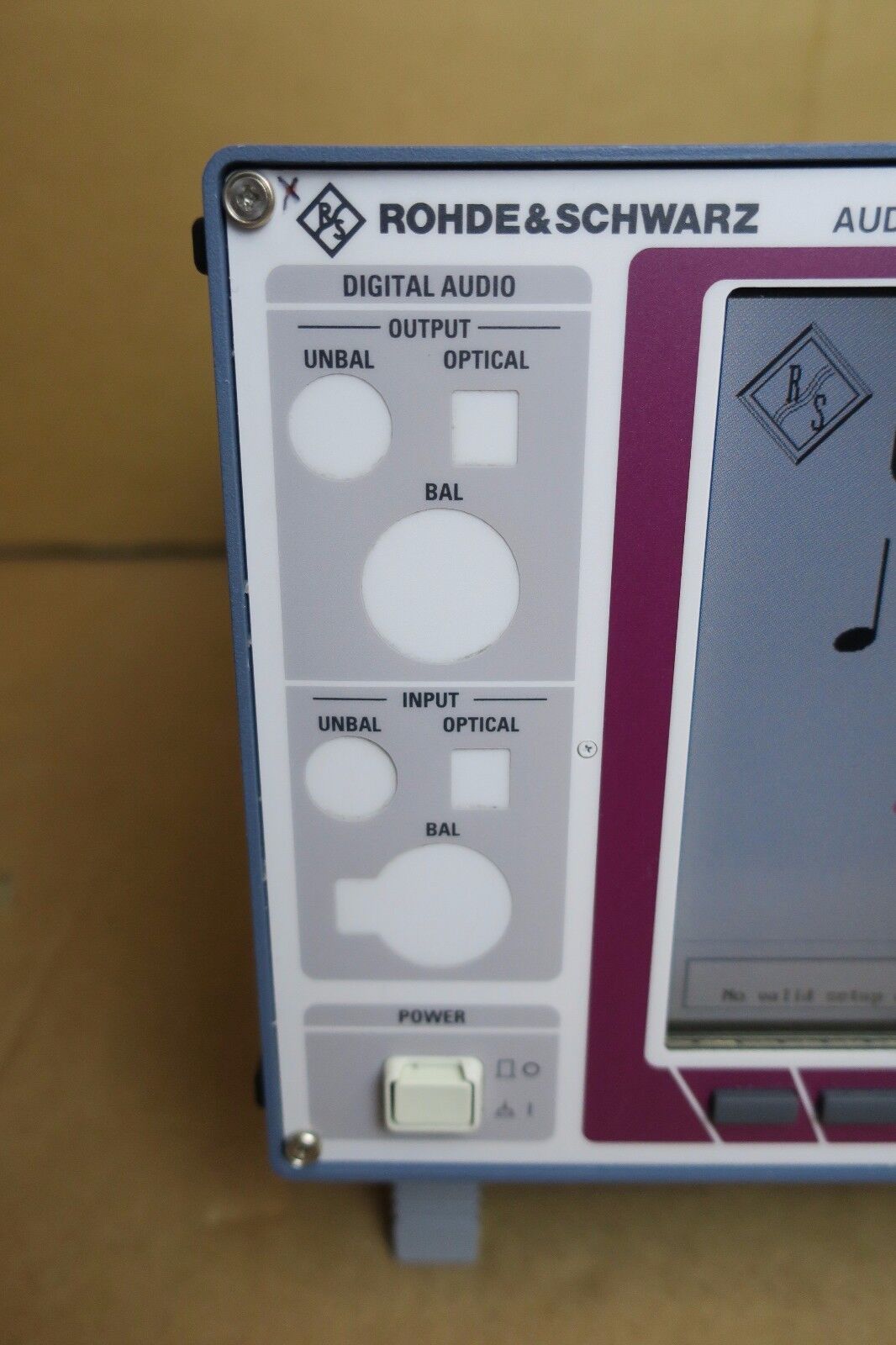

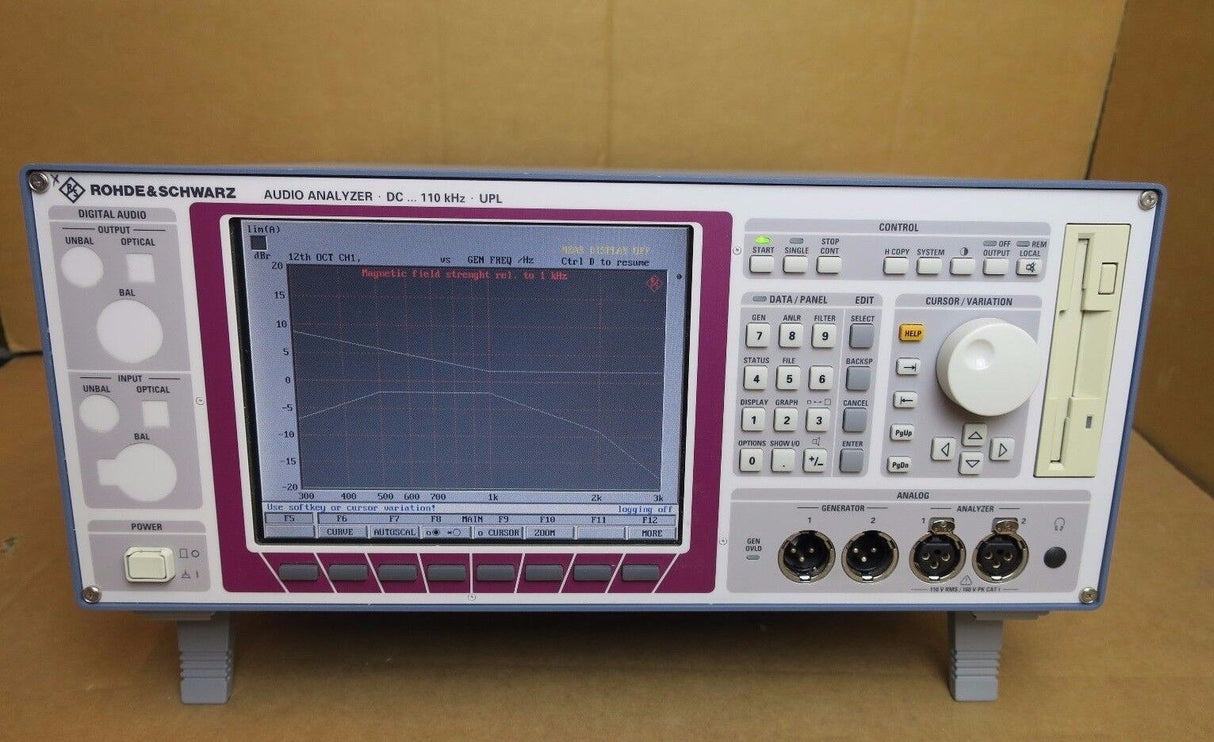

Rohde & Schwarz UPL16 B4/B6/B9/B10 Audio Analyzer DC to 110 kHz UMTS/GSM R&S

Brand: Rohde & Schwarz
Type: Audio Analyzer
Equipment type: Analyser Analyzer
Part No.: 1078.2008K16
Options Installed: B4/B6/B9/B10 UPL-U81
MPN: UPL16 B4/B6/B9/B10

Rohde & Schwarz R&S SMF 100A 1 - 22GHz Signal Generator 1167.0000.02 Tester R&S Audio Analyzer, DC to 110 kHz

In good condition and full working order

Unit with options:

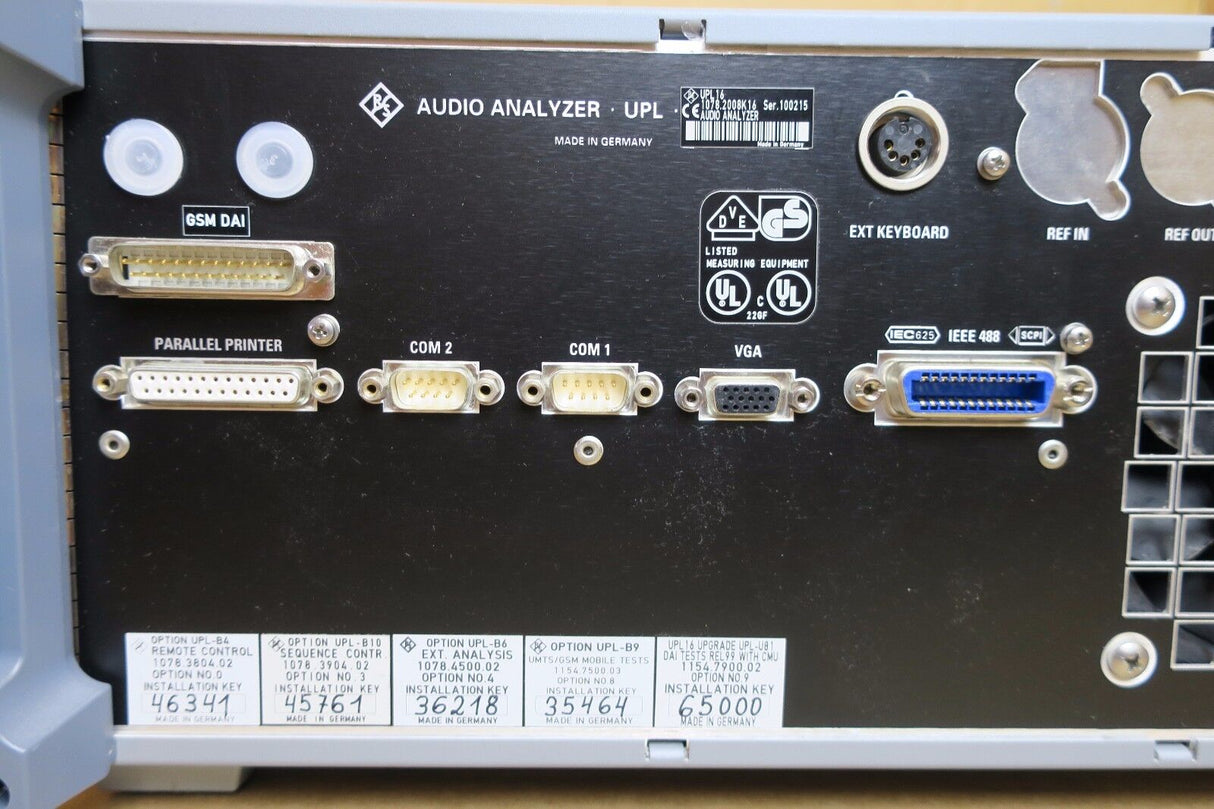

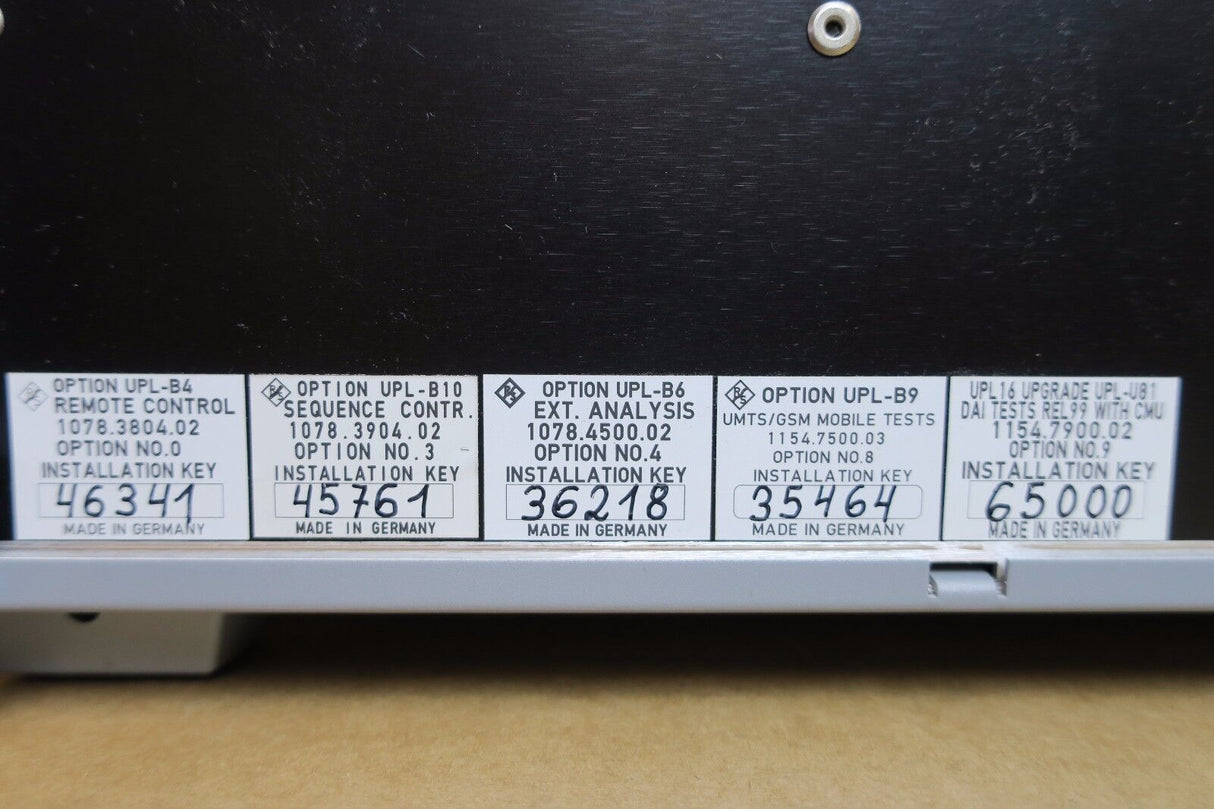

B4 = Remote Control for IEC625/IEEE-488 and RS232
B6 = Extended analysis functions
B9 = UMTS/GSM mobile phone test cases
B10 = Universal Sequence Controller
UPL16 Upgrade UPL-U81

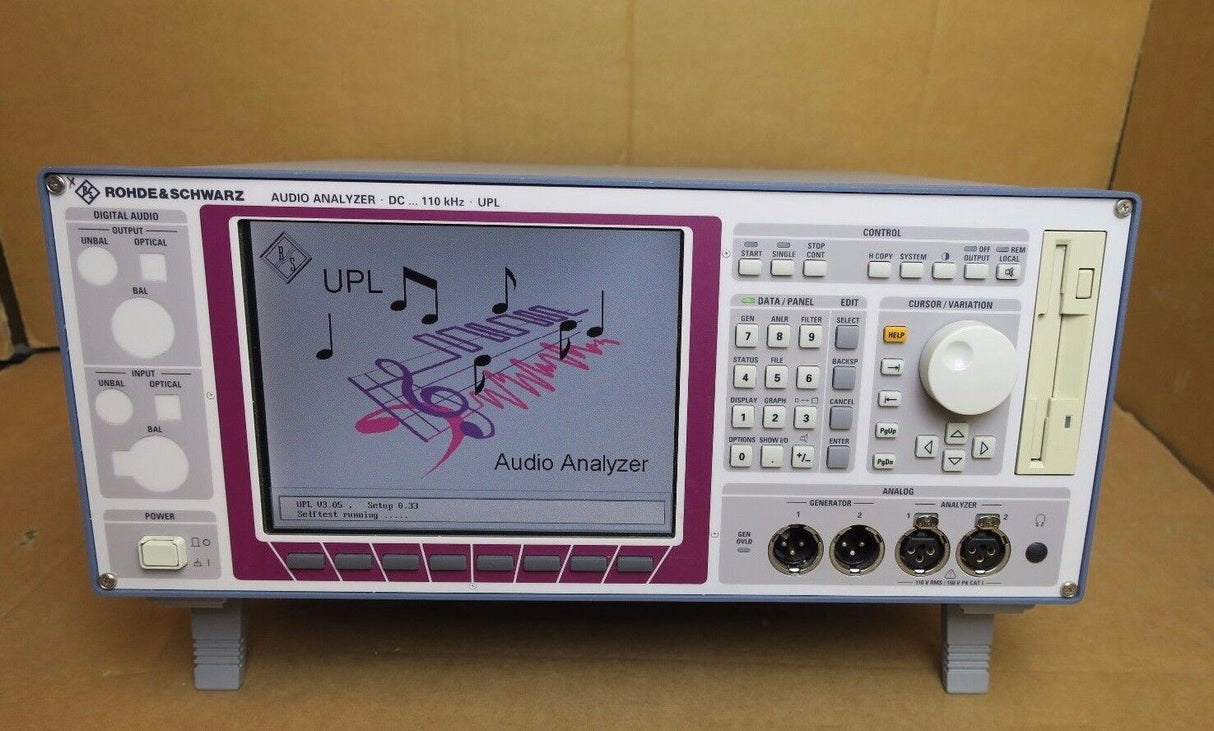

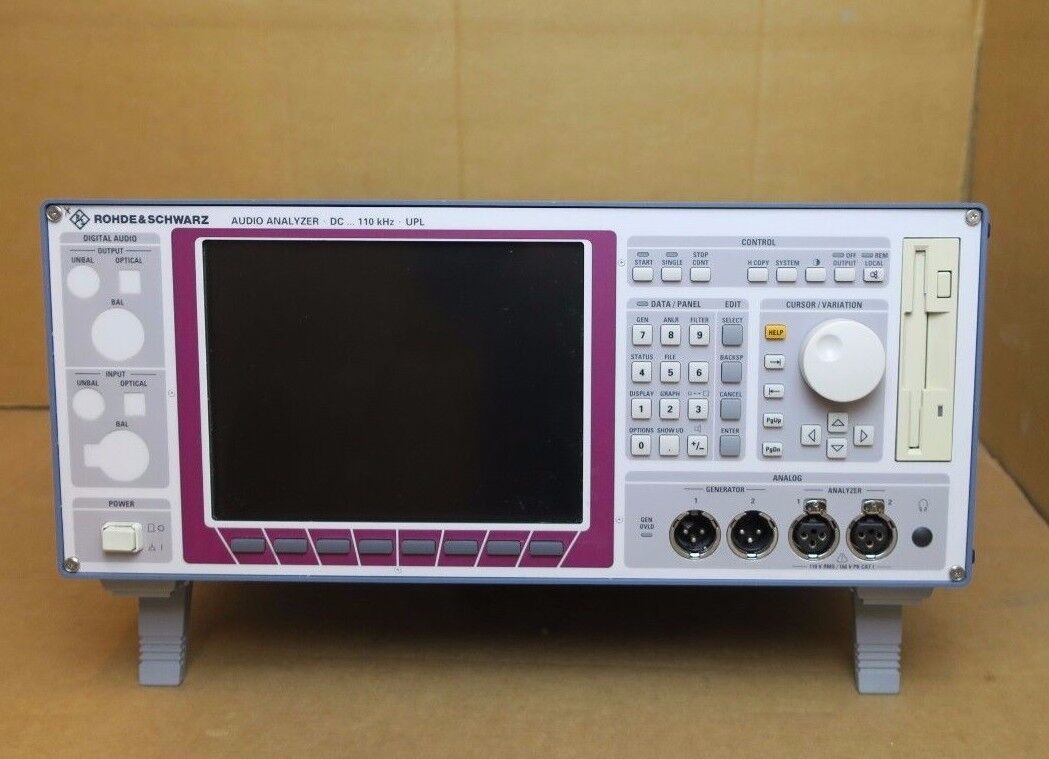

Audio analyzer for GSM mobiles, DC to 110 KHz, 2 channels, analog and digital input, colour TFT display, GPIB.

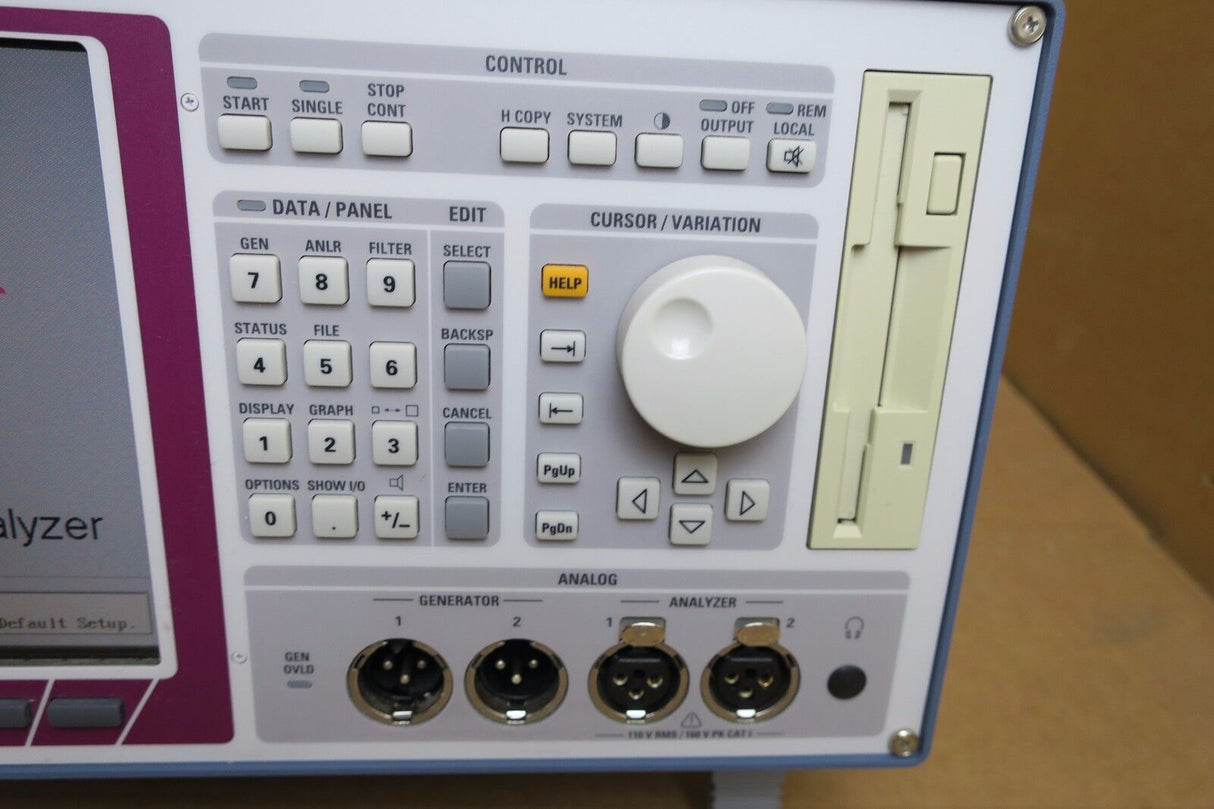

Compact instrument for audio measurements at analog and digital interfaces.

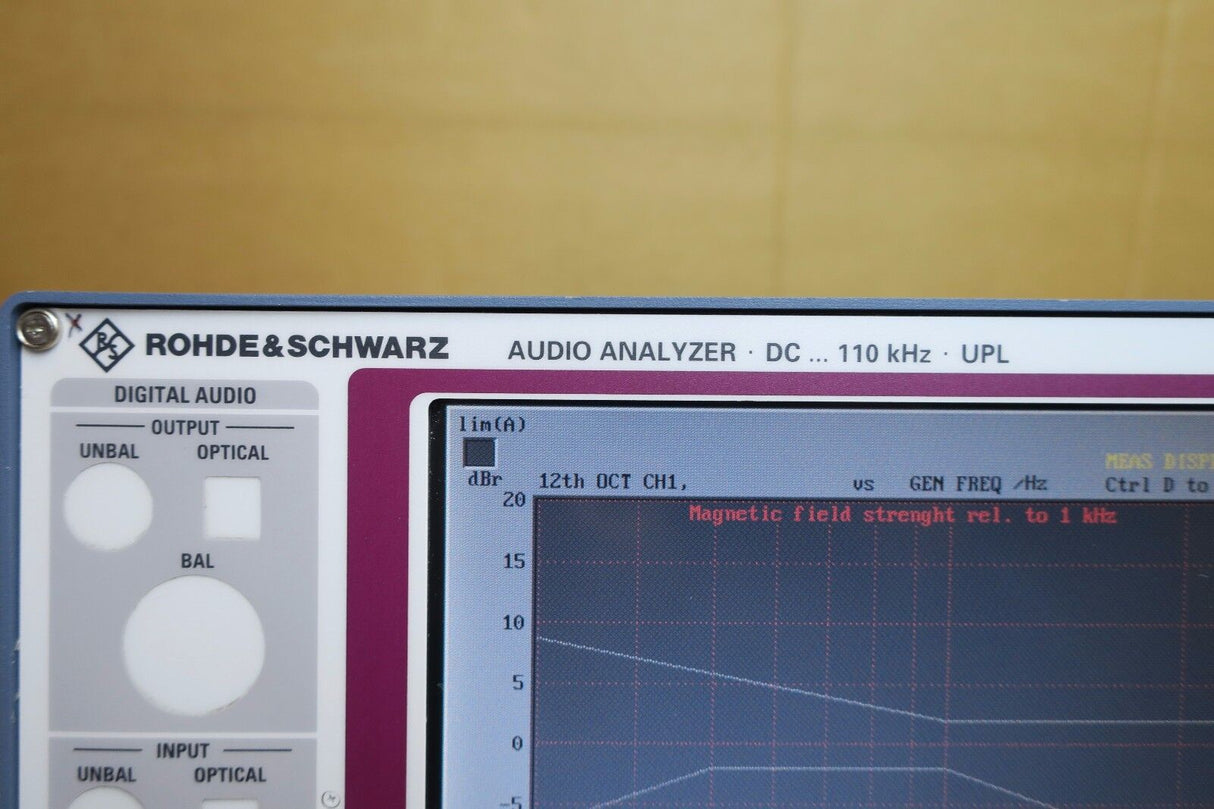

Audio Analyzer UPL performs practically all types of analog measurement, from frequency response measurements through to externally controlled sweeps with reference traces, determination of 3rd-order difference frequency distortion, spectral display of demodulated wow and flutter signals, etc.
In contrast to many other audio analyzers, UPL is capable of performing real dual-channel measurements in the audio-frequency range, i.e. there is no need for switchover between two inputs and this facility is not limited to a few special cases.
The generator is every bit as versatile:
It supplies any conceivable signal from sinewave and noise signals through to multi-sinewave signals comprising up to 7400 frequencies.
In addition to all this, UPL features excellent technical data:
Analog sine-wave generation with harmonics of typ. -120 dB, spectrum displays with a noise floor below -140 dB for analog and -160 dB for digital interfaces, FFT with a maximum frequency resolution of 0.05 Hz, etc.
UPL provides signal monitoring via loudspeaker during the test, jitter measurements on digital audio signals, resynchronization of jittered digital audio signals by means of a jitter-free clock signal, and many more features.
Audio Analyzer R&S UPL16 has the same superior analysis concept as all members of the R&S UPL family. The instrument is able to handle both analog and digital processing. It carries out practically all types of measurement in the audio range from frequency response measurements to distortion measurements, FFT analysis, etc.
The R&S UPL16 is especially designed for acoustical tests on GSM mobiles.
It is equipped with the digital audio interface (DAI) as defined in GSM phase 2 recommendation 11.10, section 36.4.
Thanks to this interface the R&S UPL16 can act as a system simulator or simulate a mobile.
General benefits UPL:
Compact instrument with integrated PC
Wide variety of test functions and numerous test signals for performing virtually all measurement tasks
Versatile analysis thanks to internal FFT analyzer of wide dynamic range and high frequency resolution
New test functions can be loaded from diskette
Any number of digital filters, also for analog measurements
Maximum dynamic range for the analysis of high-grade components
Intelligent operator guidance and context-sensitive help system in
German and English
Mnemonic analysis and generation of channel status data of digital audio interfaces
Measurement/generation of protocol errors at digital interfaces
Variety of sweep functions
More than 10 weighting filters highpass, lowpass, bandpass filters
UPL16:
Built-in Digital Audio Interface DAI
Test cases according to 3GPP TS 51.010-1
All kinds of analog and digital test signals including artificial voice
Measurements in analog and digital domain
UPL16 is part of Type Approval System TS8916
UPL16 + CRTx or CMU for type approval measurements
Validated measurements via Air Interface with option UPL-B9
Option B4:
Remote Control :
Enables remote control via the RS-232-C interface or the IEC/IEEE-bus interface (IEC 625/IEEE 488)
Option B6:
Extended Analysis Functions:
Coherence and transfer functions, rub & buzz measurement, third-octave analysis
Option B9:
UMTS/GSM mobile phone test cases:
Validated Mobile Phone Tests for air interface tests according to 3GPP TS 26.132
Option B10:
Universal Sequence Controller:

Enables measurement sequences to be generated and executed with the aid of a built-in program generator

1x Rohde & Schwarz R&S SMF 100A 1 - 22GHz Signal Generator 1167.0000.02 Tester R&S Audio Analyzer, DC to 110 kHz
