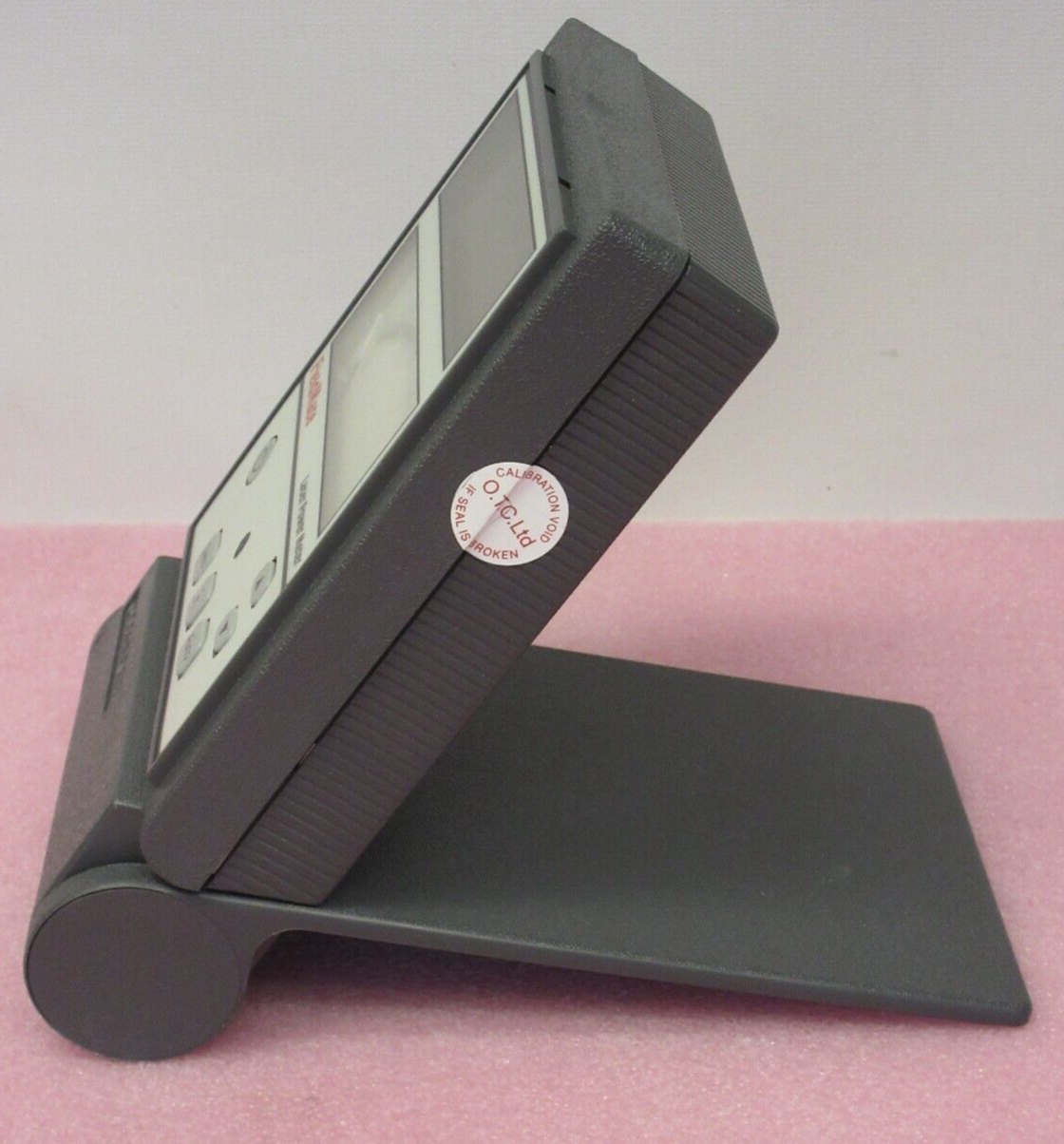

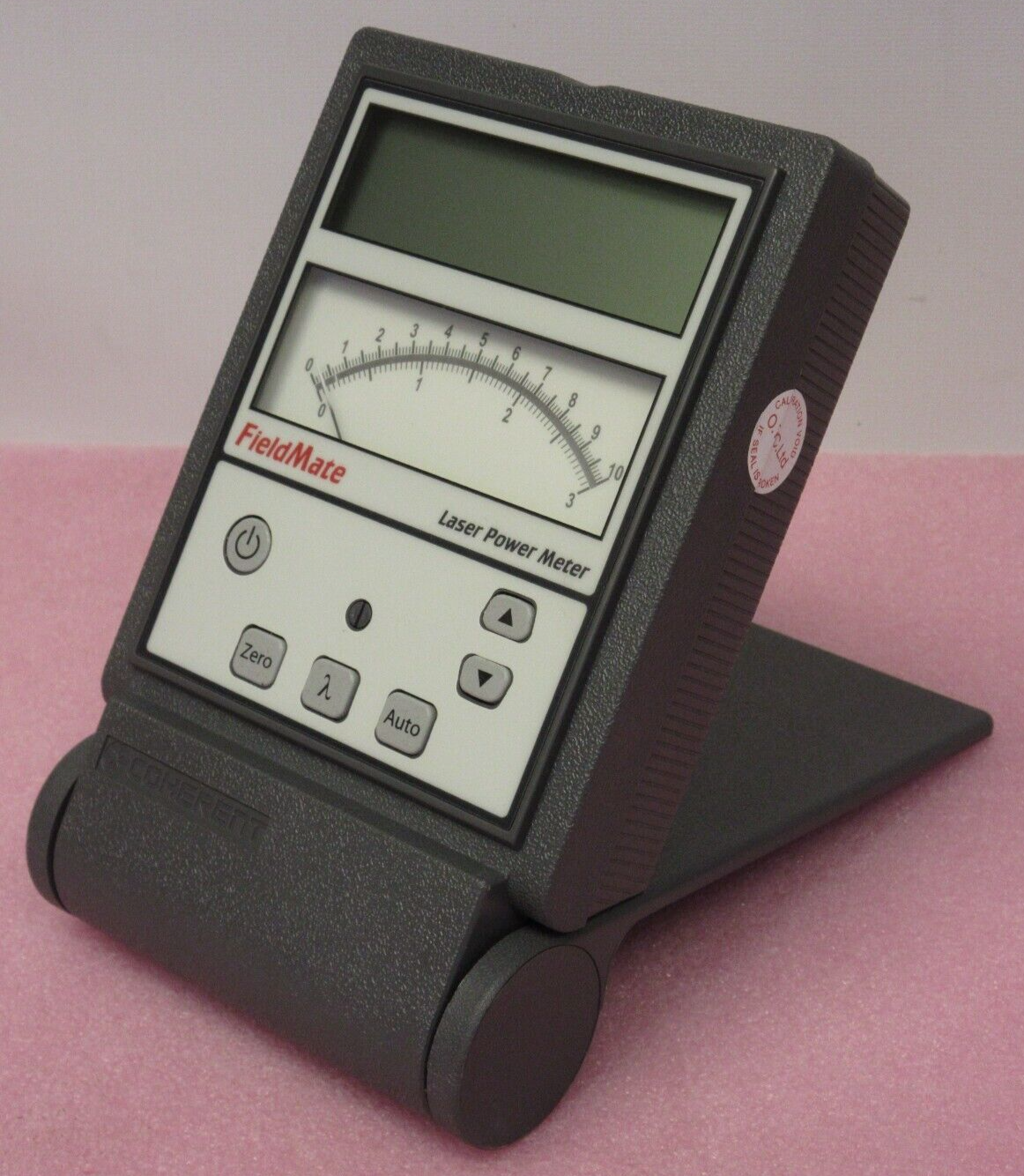

Coherent 1098297 FieldMate Laser Power Meter Measurement PM150-19C Sensor
Pre-owned
Coherent 1098297 FieldMate Laser Power Meter Measurement PM150-19C Sensor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
More Info:
FieldMate combines a digital display and analog meter with sophisticated digital processing to enable rapid, sensitive laser adjustment. This meter also offers an economical way of measuring laser power when advanced data analysis is not necessary.
Specifications:
Model FieldMate
Power Resolution: 0.1% of full-scale for all ranges in the 10s scale, 0.3% of full-scale for all ranges in the 3s scale
Measurement Range: Sensor dependent (reference sensor specifications)
Analog Meter Accuracy (%): ±3.0
Analog Output Accuracy (%): ±1.0
Calibration Uncertainty (%) (k=2): ±1.0
Power Sampling Rate: 20 Hz (thermopile and optical)
Display: 26 x 89 mm, custom fixed-segment LCD
Analog Needle: Scale 0 to 10 (100 divisions), 0 to 3 (60 divisions), Response 80 ms time constant
Analog Output: Voltage: 0 to 2 VDC, Update Rate: 20 times/sec.
Temperature: Operating Range: 5 to 40°C (41 to 104°F), Storage Range: -20 to 70°C (-68 to 158°F)

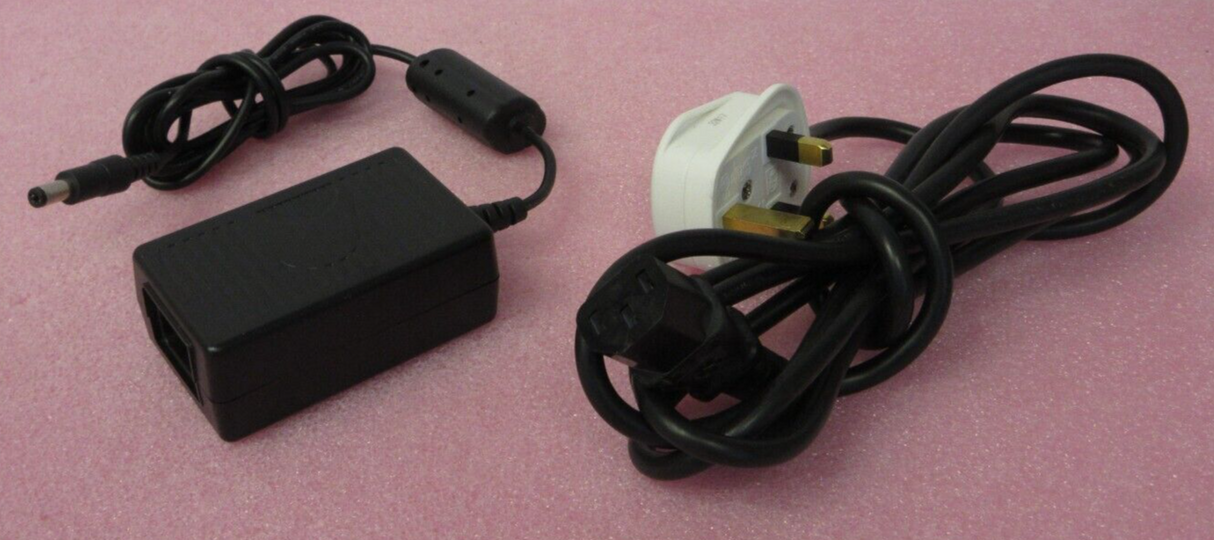

Instrument Power: 100 to 240 VAC, 50/60 Hz
Instrument Batteries: Two 9V alkaline batteries (Not Included)
Compliance: CE, RoHS, WEEE, ISO 17025
Dimensions (H x W x D): 193 x 117 x 46 mm, (7.6 x 4.6 x 1.8 in.)
Weight: 0.8 kg (1.8 lbs.)

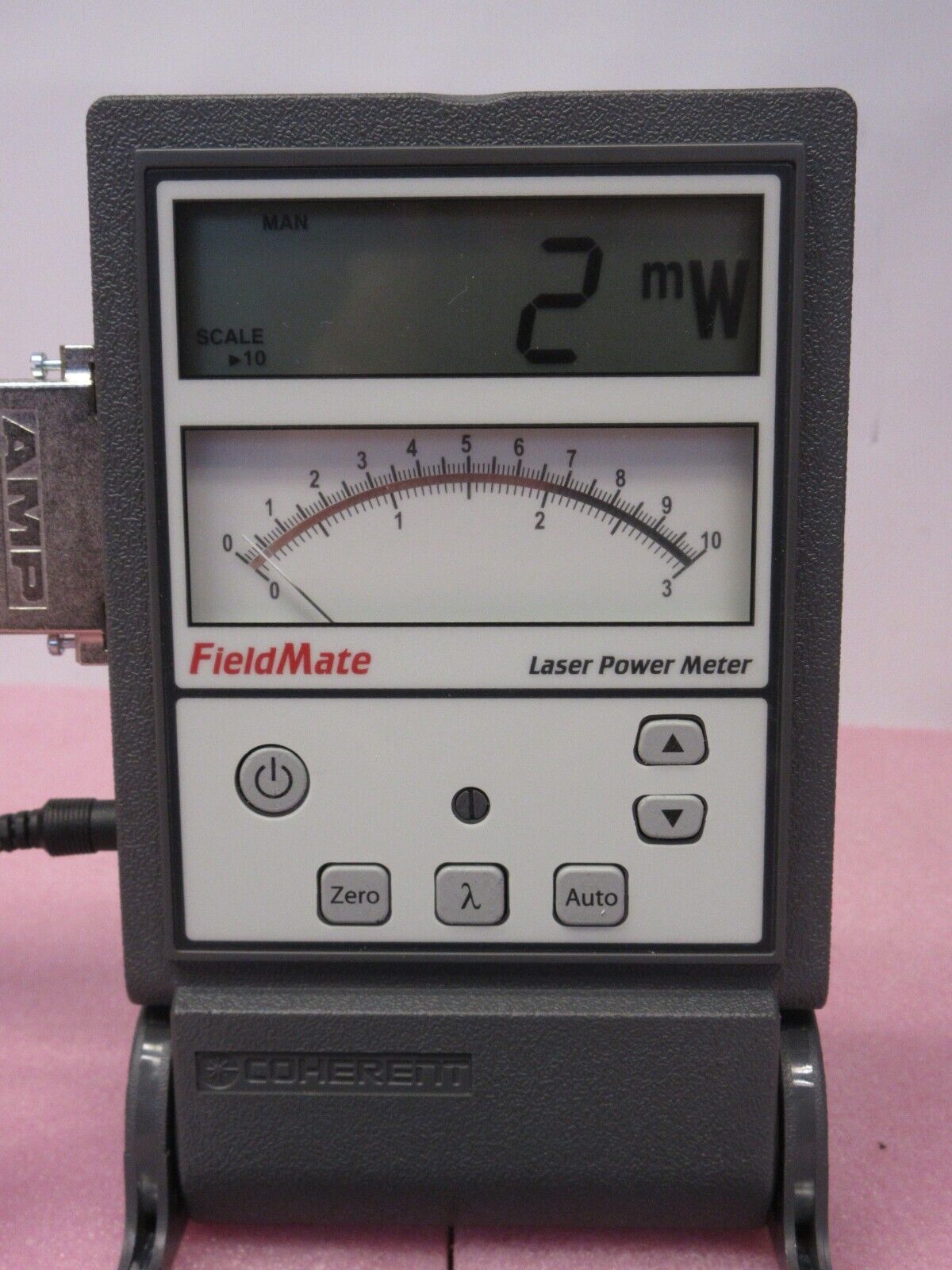

Front Panel: PWR, ZERO, AUTO, λ, ARROW KEYS

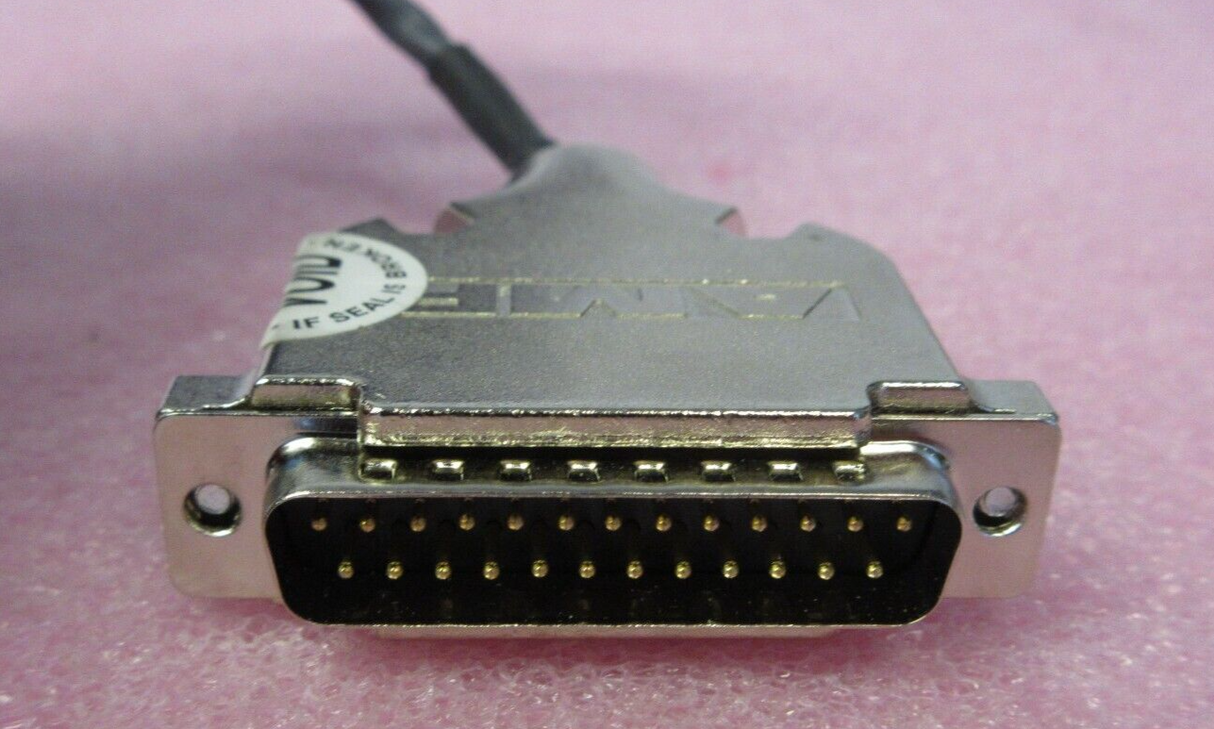

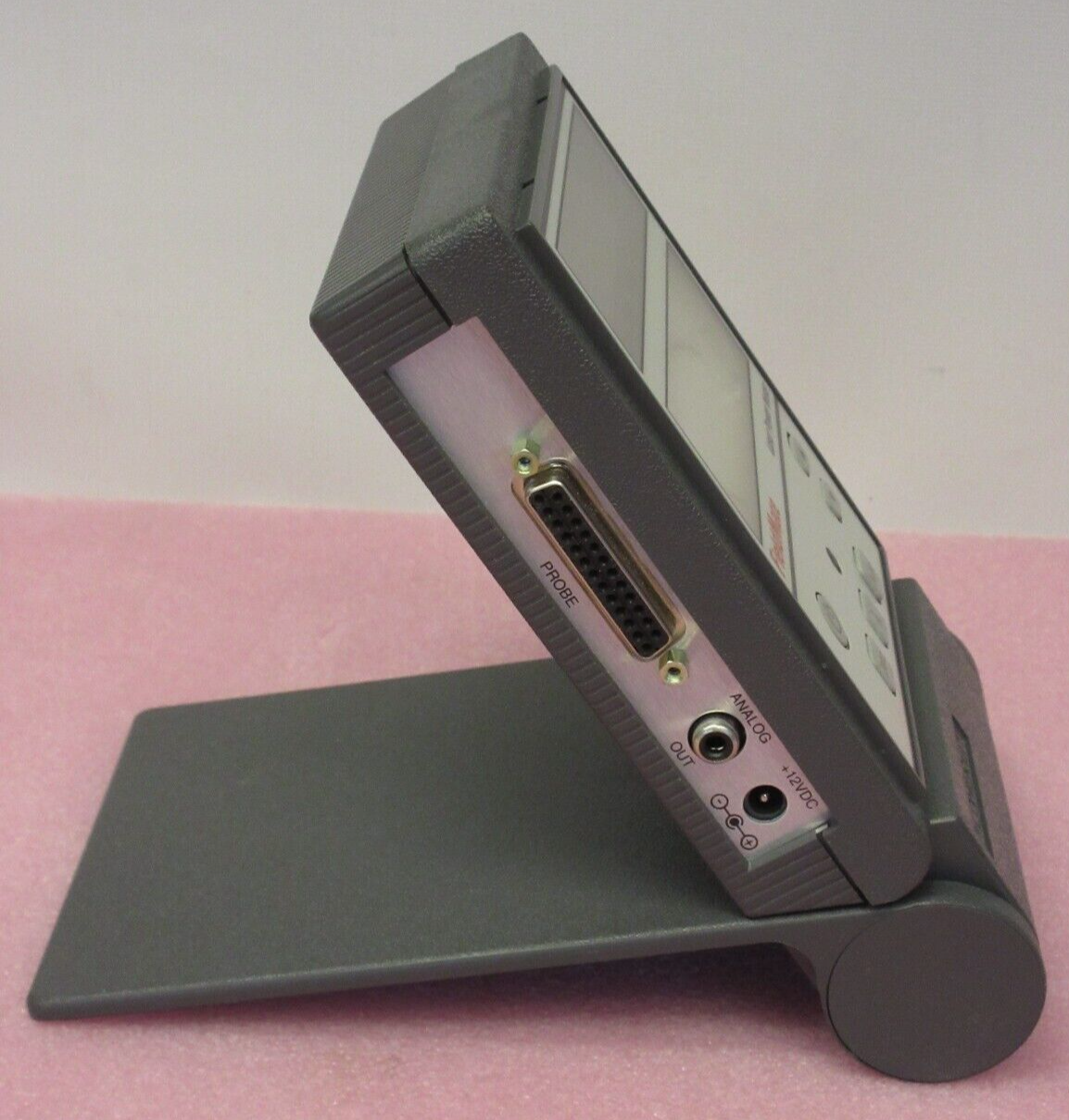

Left Side Panel: Power jack, Analog output, DB-25 sensor port

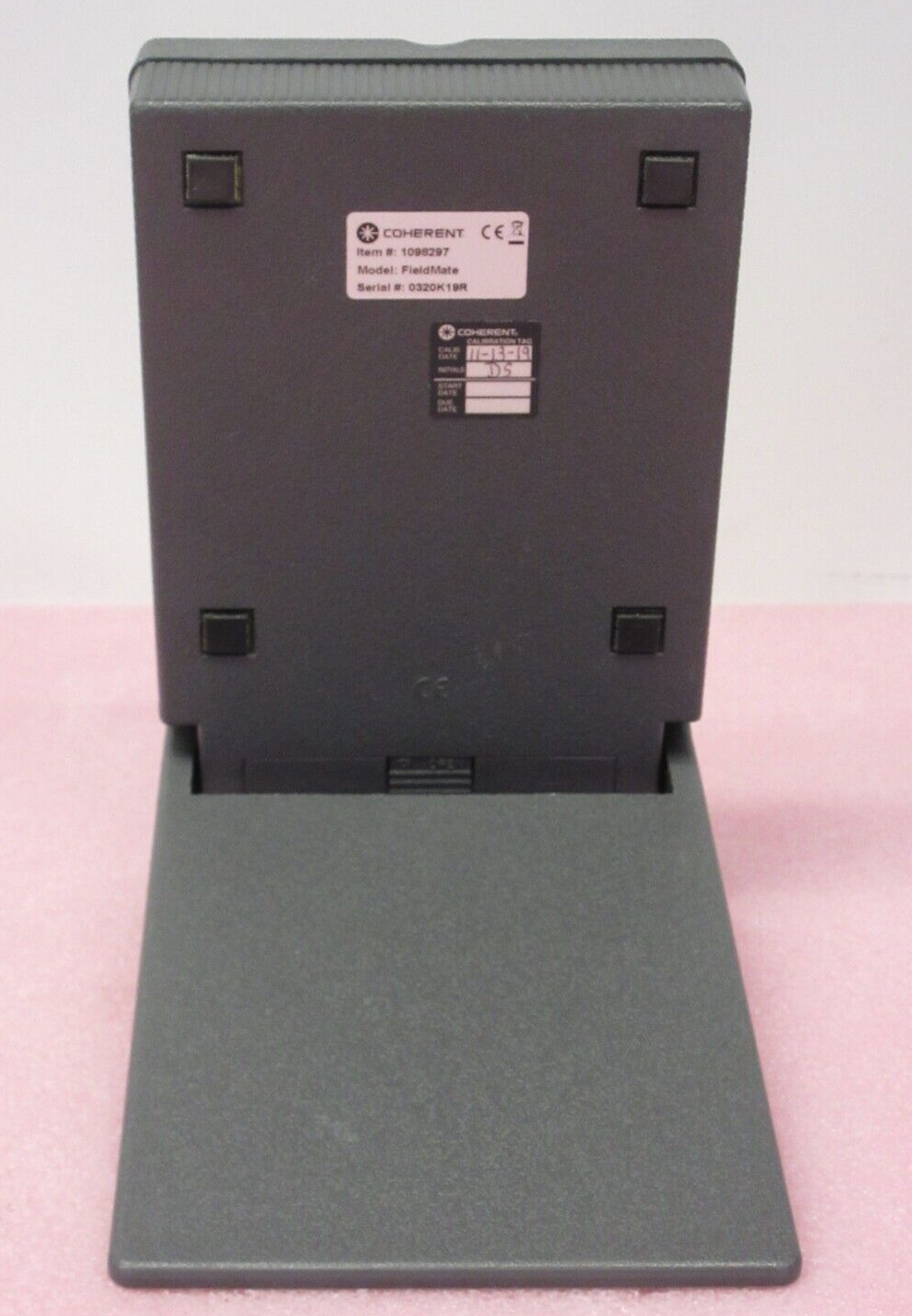

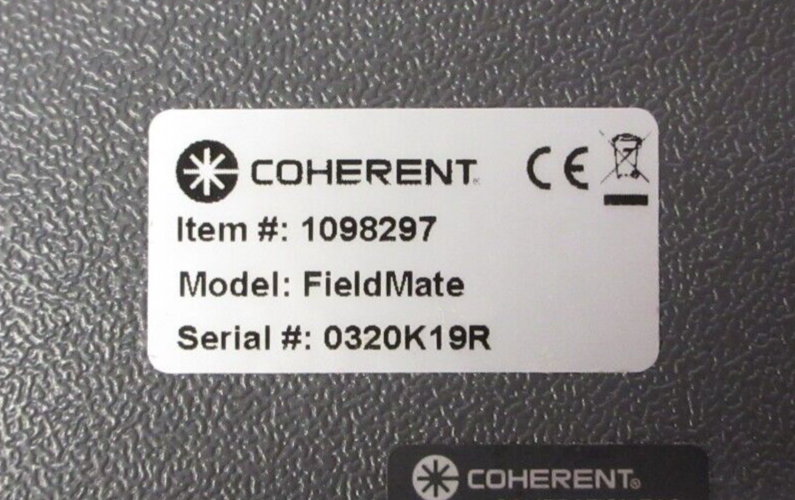

Part Number: 1098297

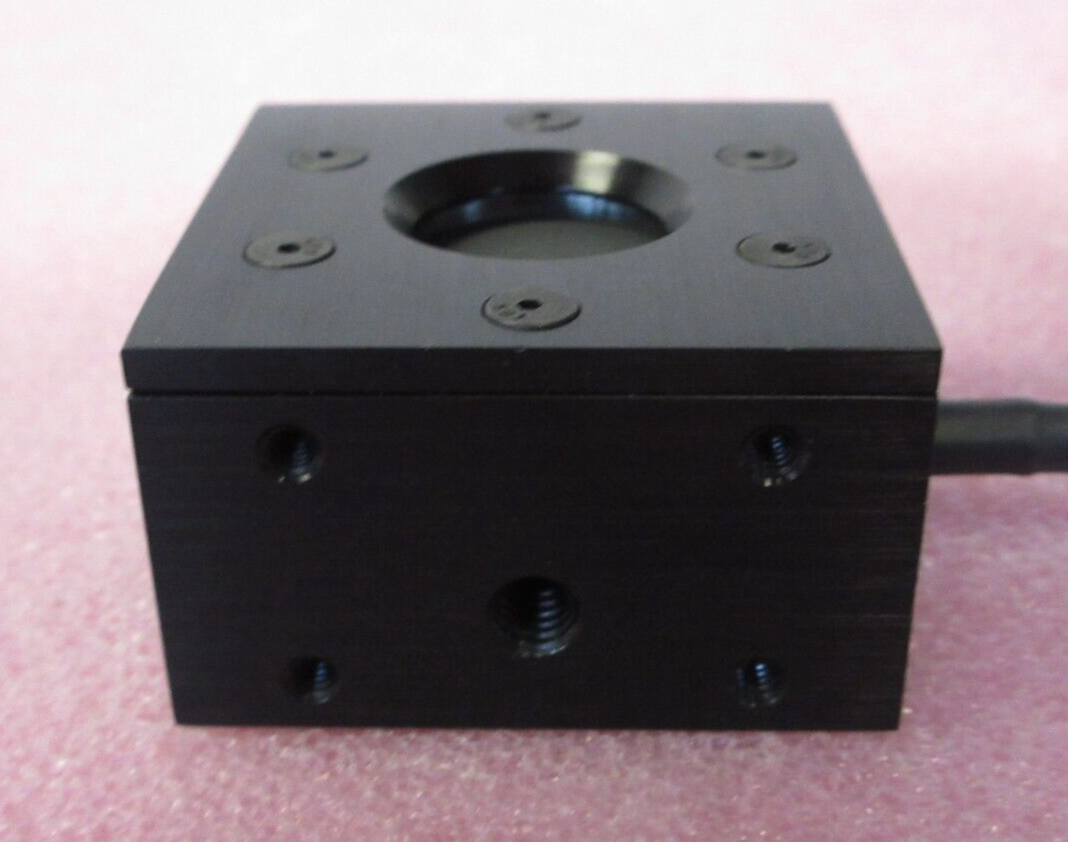

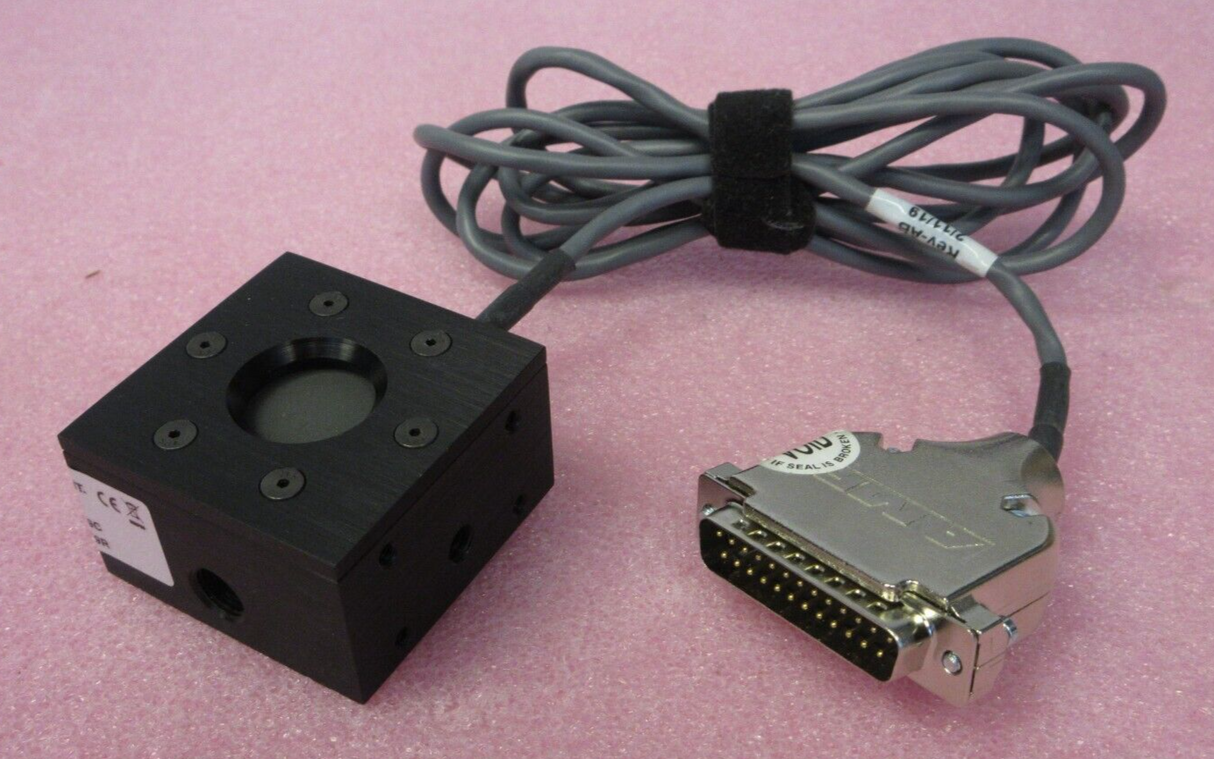

Sensor Specifications:
Wavelength Range (µm): 0.19 to 11
Power Range (water-cooled): 300 mW to 150 W
Max. Intermittent Power (W) (<5 min.) 20 (air-cooled)
Long-Pulse Joules (J): 1 to 150
Noise Equivalent Power (mW): 1
Maximum Power Density (kW/cm2): 6
Maximum Energy Density (mJ/cm2): 600 (10 ns, 1064 nm)
Response Time (sec.) (0% to 95%)
Speed-up On: 2
Speed-up Off: 4
Detector Coating: Broadband
Detector Element: Thermopile
Optic: None
Detector Diameter (mm): 19
Calibration Uncertainty (%) (k=2): ±2
Power Linearity (%): ±1
Spectral Compensation Accuracy (%): ±1.5
Long-Pulse Joules Accuracy (%): ±3
Calibration Wavelength (nm) 10,600
Cooling Method: Water/Air (intermittent)

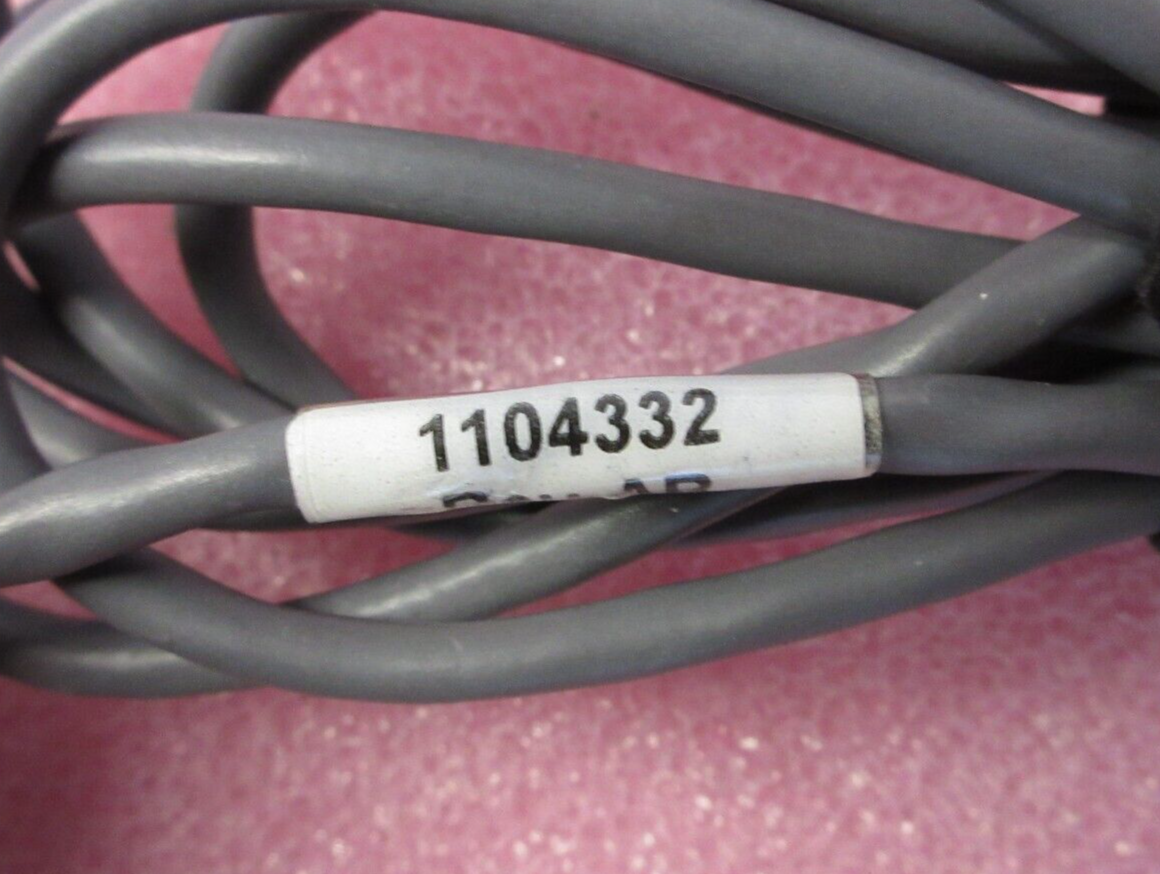

Cable Type: RS
Part Number: 1168347 (RS)

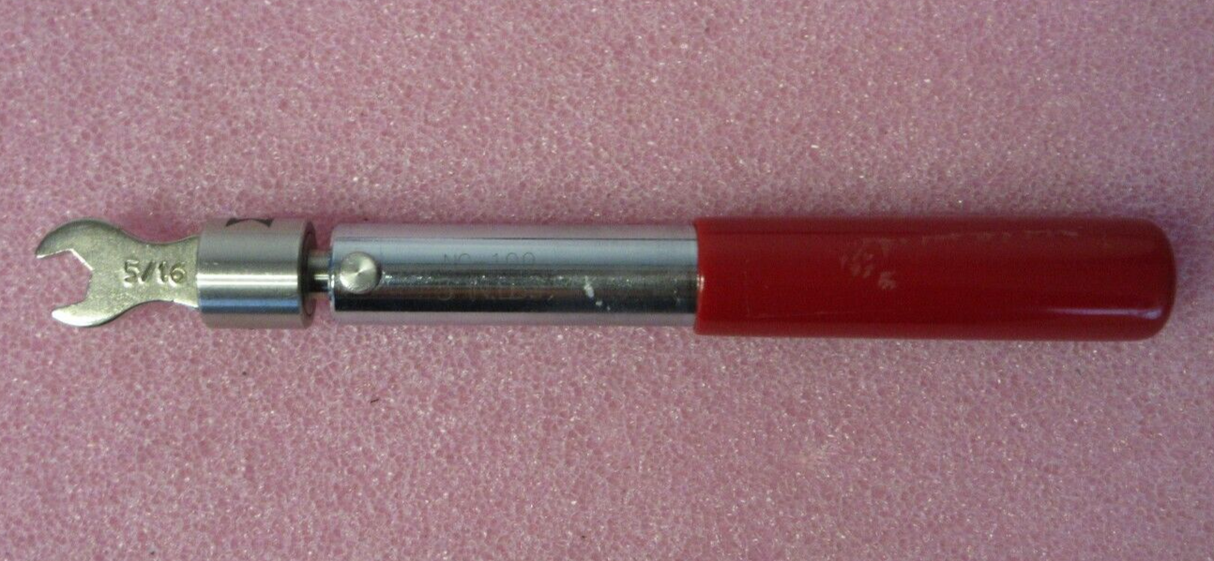

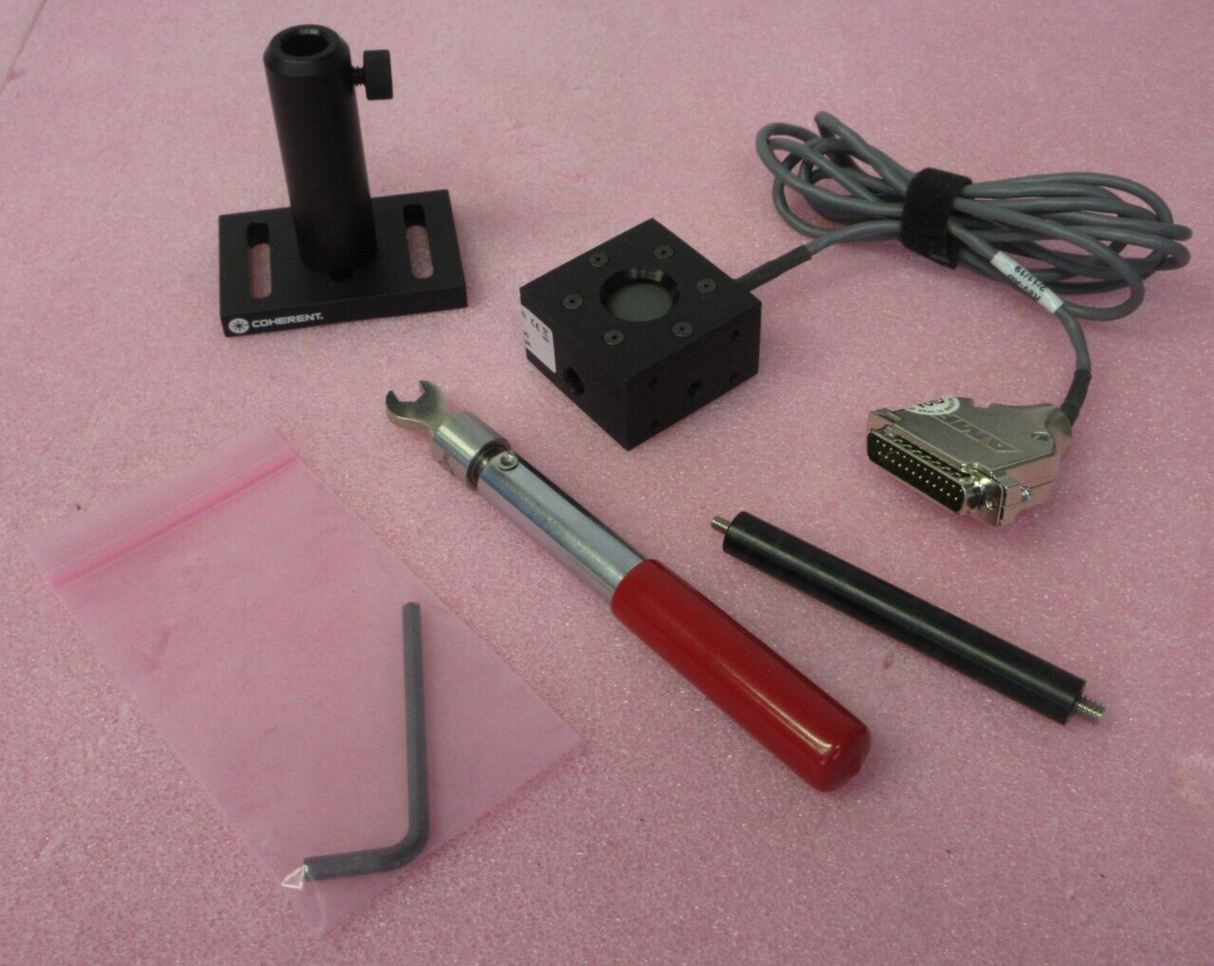

What's Included
What's Included

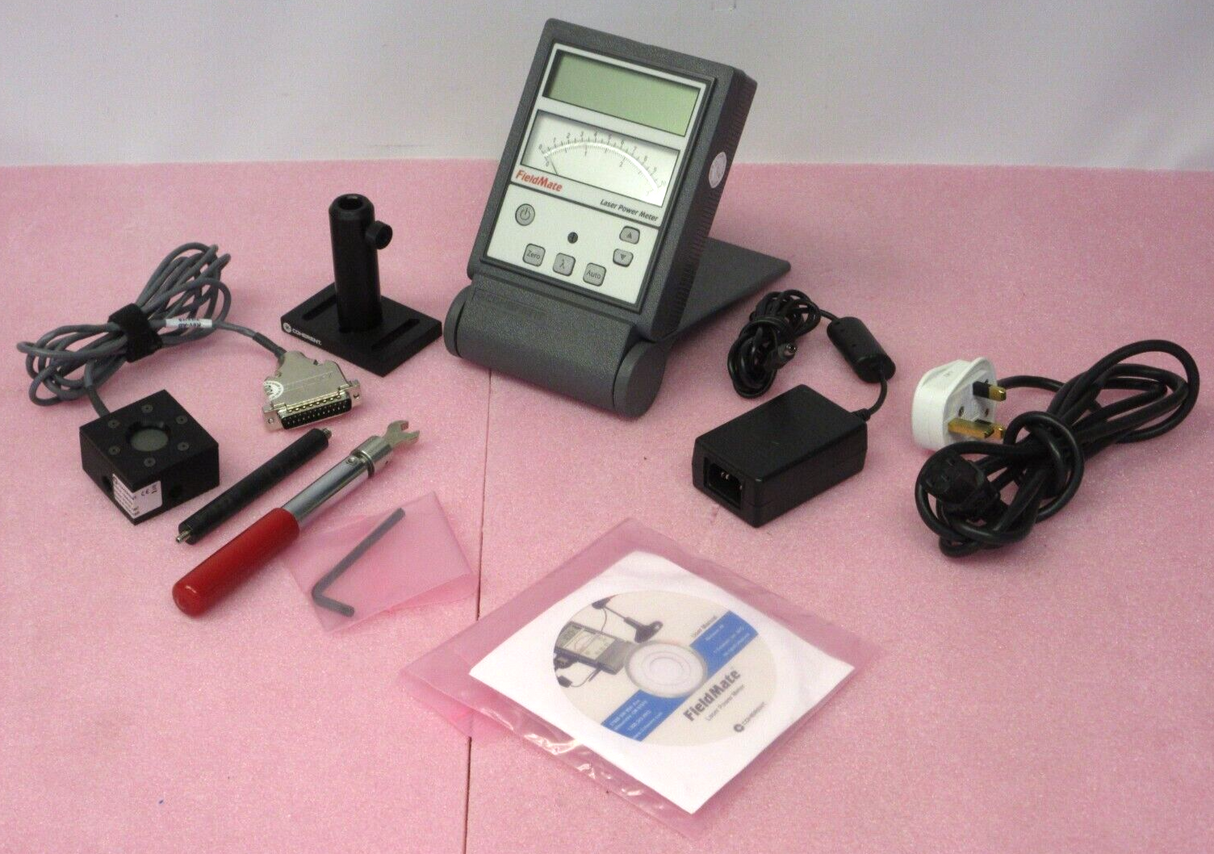

Coherent 1098297 FieldMate Laser Power Meter Measurement PM150-19C ...
