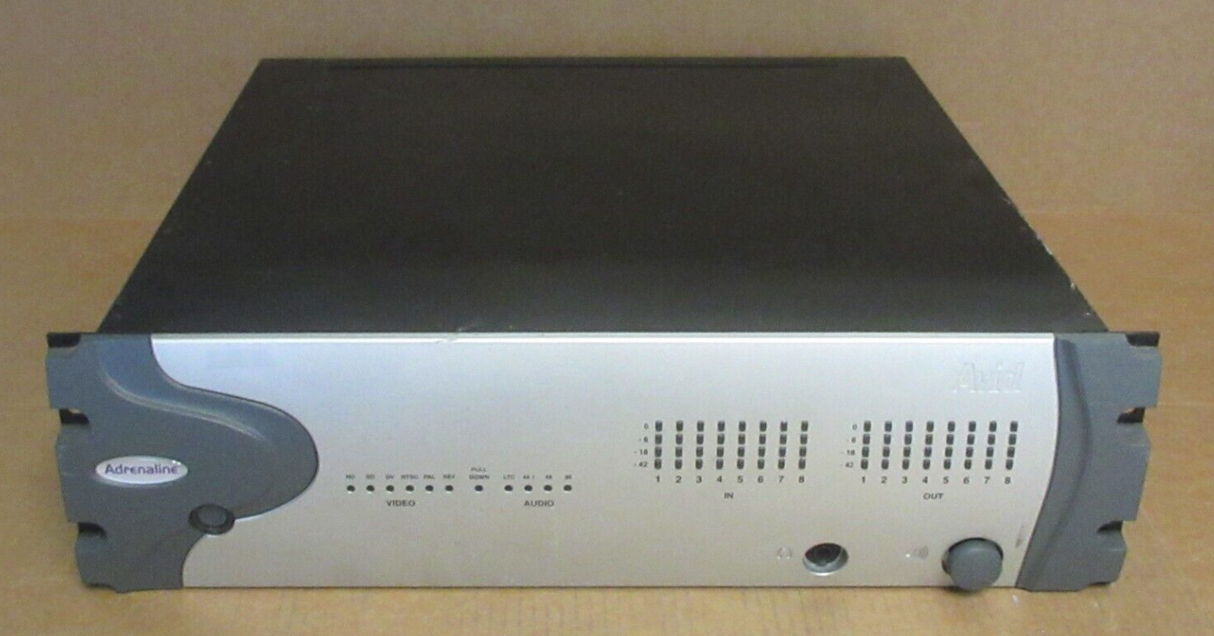

AVID Adrenaline DNxcel Expansion HD Breakout Box 7020-03332-02 7030-03226-02
Pre-owned
AVID Adrenaline DNxcel Expansion HD Breakout Box 7020-03332-02 7030-03226-02 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Model: Adrenaline DNxcel Expansion Media Composer
Type: Breakout Box
MPN: 7020-03332-02 7600-03179-01 7030-03226-02
Brand: Avid
AVID Adrenaline DNxcel Expansion HD Breakout Box 7020-03332-02 7030-03226-02
In good condition. Powers on and gives video output but unable to test further.
Included:
1x AVID Adrenalive DNxcel 7020-03332-02
1x AVID Adrenaline HD DNXcel Board 7030-03226-02
1x Kettle Power Supply Cord
Product Details:
Avid Adrenaline hardware offers accelerated effects processing with real-time 10-bit SDI and 96 kHz audio I/O.
Avid Adrenaline hardware offers 10-bit SDI, component, S-Video, and composite I/O, plus DV I/O with real-time
analog-to-DV and DV-to-analog conversion, to support a wide range of projects and formats.
Adrenaline A/V Break-Out Box
10-bit SMPTE 259M SDI serial digital I/O
Component YPbPr, S-Video, and composite I/O
DV I/O with real-time analog-to-DV and DV-to-analog conversion
Uncompressed PAL and NTSC ITU-R-601 formats
Sync reference input
Serial deck control and 1394 deck control
Audio I/O
48 kHz, 44.1 kHz, and 32 kHz (hardware supports up to 96 kHz)
16 or 24-bit resolution
8 channels ADAT audio I/O or stereo Toslink optical S/PDIF
4 channels AES/EBU digital audio I/O
4 channels RCA analog audio inputs
4 channels XLR analog audio inputs
Separate stereo monitor output
HD freedom begins with the high-performance Avid DNxcel Board: a single, easy-to-install component that slides into the Avid Adrenaline hardware's HD expansion slot. Engineered for today's multi-resolution, multi-format postproduction workflows, the Avid DNxcel Board is packed with professional-grade components and media processing horsepower. Turn your Media Composer Adrenaline HD or NewsCutter Adrenaline system into a high-throughput HD workstation. Why add the Avid DNxcel Board?
HD Flexibility
* Capture and output HD via industry-standard HD-SDI input/output for connecting to HDCAM, DVCPRO HD, D5, and other popular decks and cameras
* Real-time multistream HD editing with real-time effects viewable on an HD monitor
* Full complement of connectors plus tri-level sync HD Quality
* Hardware encoding of the only HD encoding technology specifically designed for post production: Avid DNxHD
* Supported resolutions include: 1080i 59.94, 50 fps; 1080p at 25, 24, 23.976 fps; 720p at 59.94, 23.976 fps
* Avid DNxHD encoding provides mastering-quality HD media with the storage and bandwidth footprint of uncompressed SD media
HD Efficiency
* Full 10-bit HD hardware with choice of 10-bit and 8-bit Avid DNxHD encoding settings
* Real-time SD downconvert
* Simultaneous output of HD and SD masters
Boost your HD power with Avid DNxcel
Avid Adrenaline hardware with the Avid DNxcel board (Avid Part Number: 7030-03226-02) delivers real-time 10-bit HD-SDI I/O to and from HDCAM, DVCPRO HD, and D5 decks and cameras. Edit multistream HD with real-time effects viewable on an HD monitor, save time with real-time SD downconvert, and output HD and SD simultaneously. Take advantage of Avid DNxHD encoding for everything from offline HD editing to projection of HD dailies.
