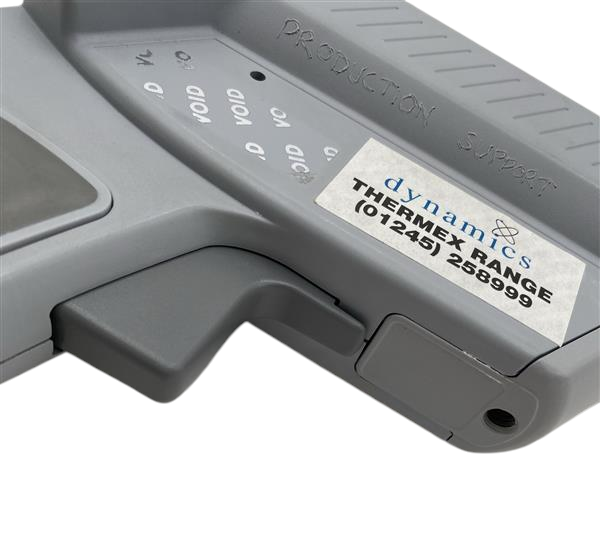

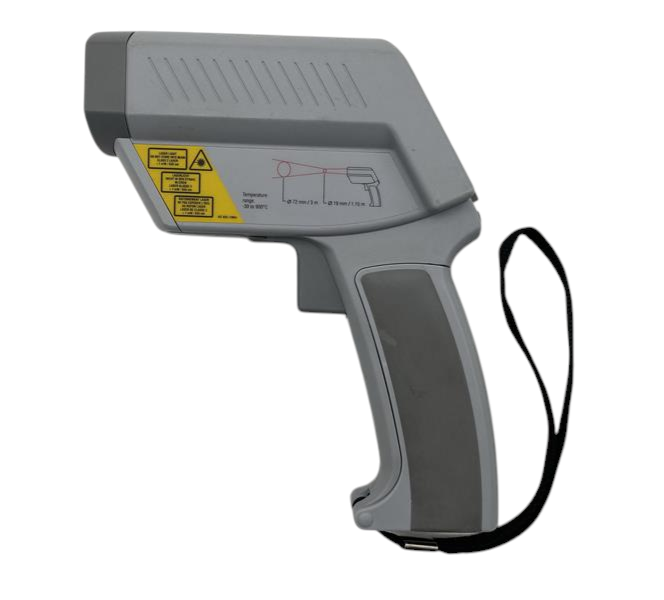

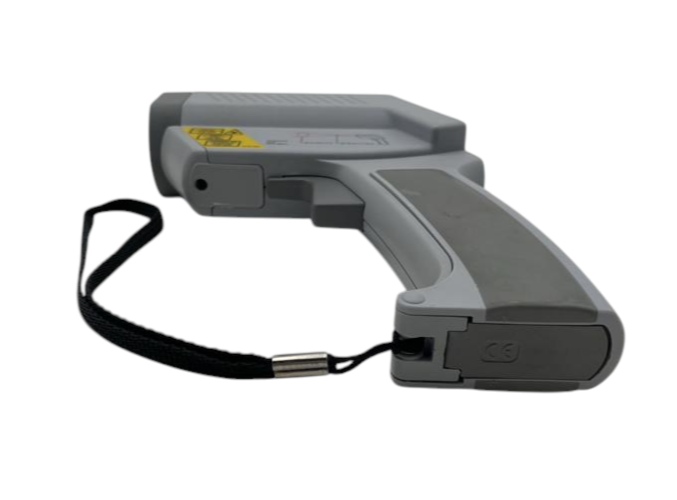

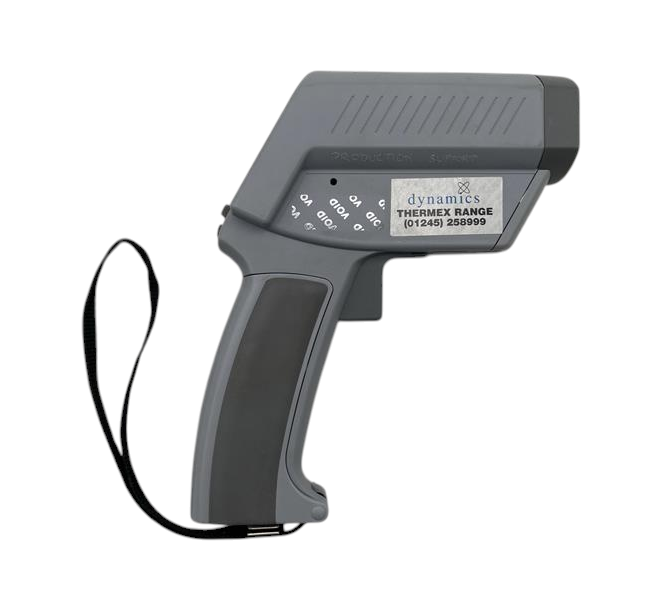

Dynamics Thermex Range Laser KL5 Infrared IR Thermometer Gun with LCD Display
Pre-owned
Dynamics Thermex Range Laser KL5 Infrared IR Thermometer Gun with LCD Display is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: Dynamics
Accuracy: ±1°C (±1.5°F)
Non-Contact Thermometer Type: Laser Infrared Thermometer
Temperature Range: -30°C to 900°C / 25°F to 1600°F
Distance to Spot Ratio: 60:1
MPN: dynamics-thermexKL5
Country of Origin: United Kingdom
Display: Digital
Dynamics Thermex Range Laser KL5 Infrared IR Thermometer Gun with LCD Display Tested and in full working order
Included
1 x Dynamics Thermex Range Laser KL5 Infrared IR Thermometer Gun with LCD Display

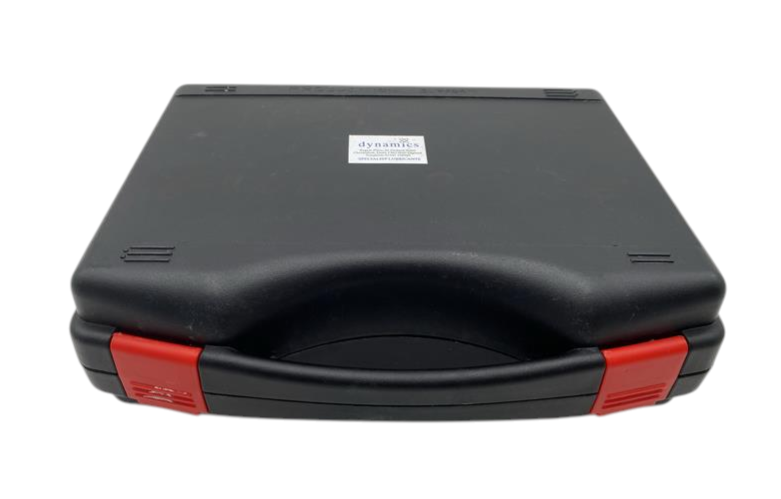

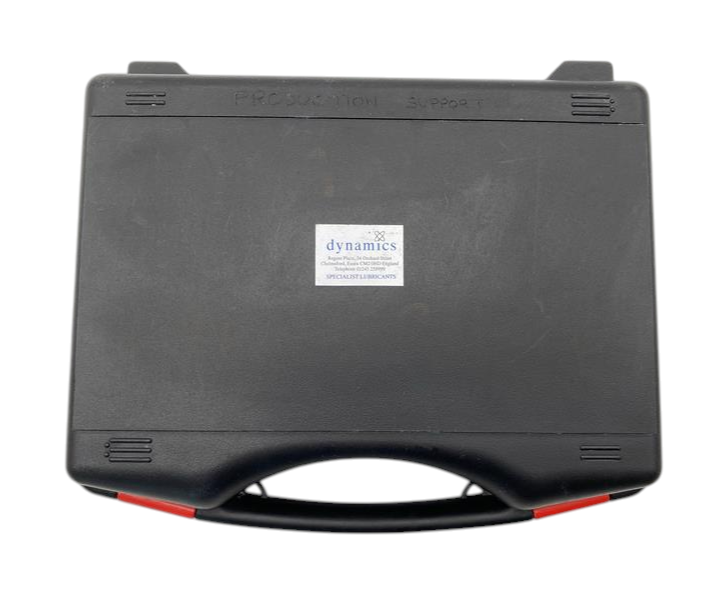

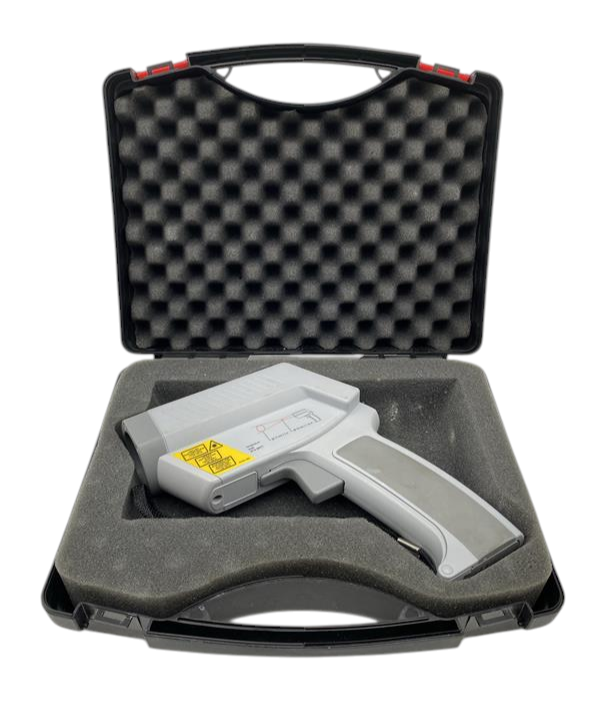

1 x Original Bag
2 x Battery

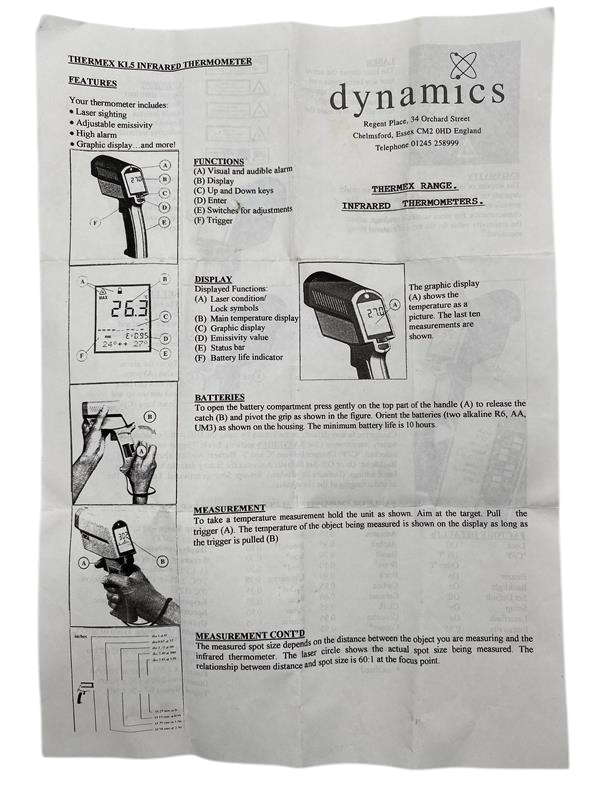

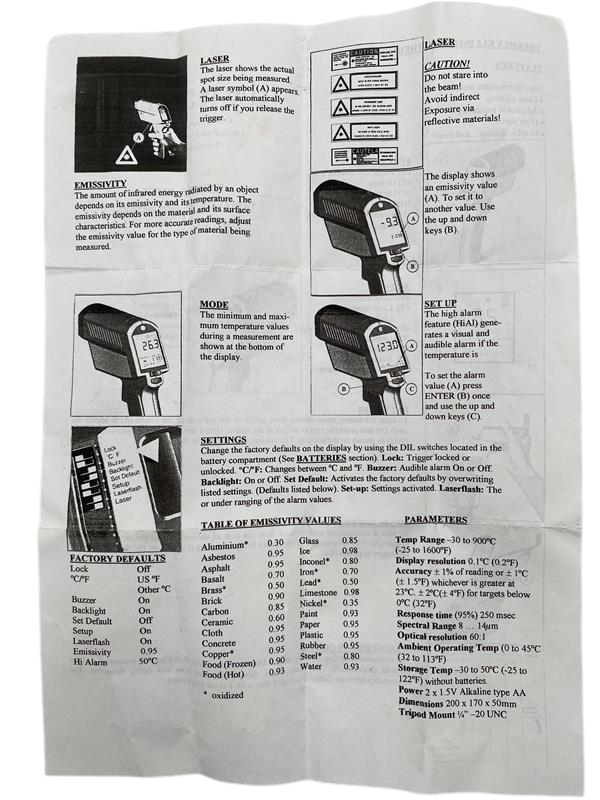

1 x User Manual
Brand & Model
Manufacturer / Distributor: Dynamics
Specific Model / Product Line: Thermex Range KL5 Infrared Thermometers

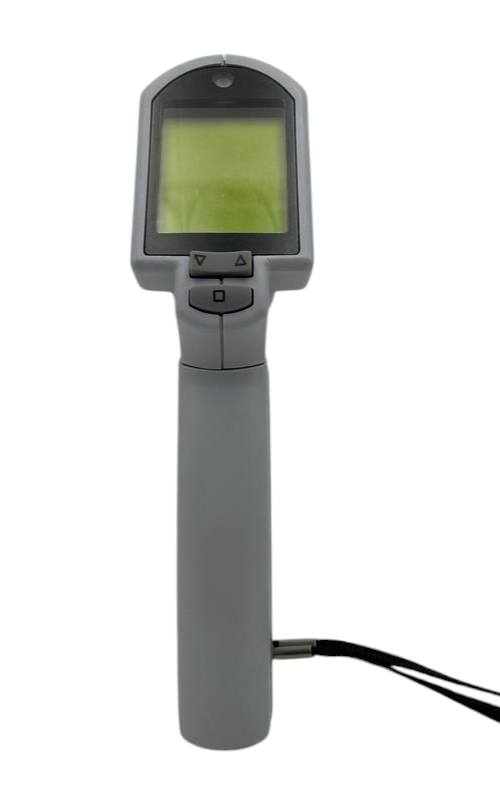

Advanced Display Features
Graphic History Display: The screen features a unique graphic panel that displays temperature changes visually as a picture, storing and plotting the data for the last ten measurements.

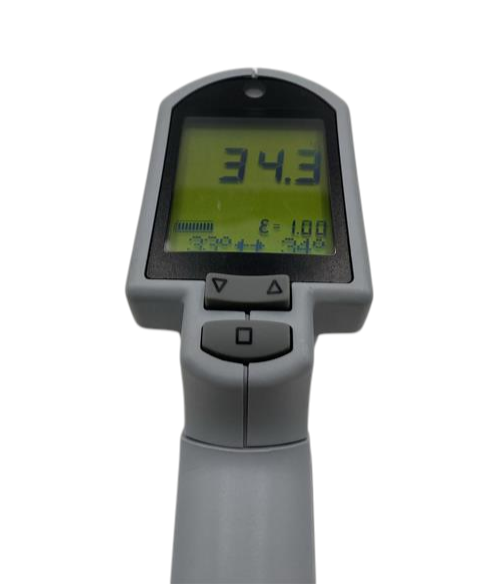

Comprehensive Screen Layout: The LCD simultaneously displays:
Main real-time temperature reading: Graphic trend display, Configured Emissivity value ($\mathcal{E}$), Current status bar & battery life indicator, Laser condition and trigger lock icons
Operation

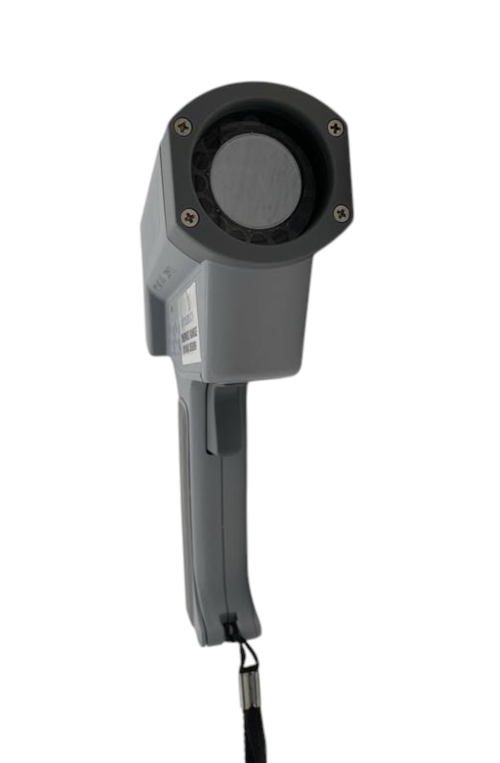

Targeting System: Uses circular laser sighting where the laser circle outlines the exact spot size being actively measured.
Optical Focal Ratio: Operates at a precise distance-to-spot ratio of 60:1 at the focus point.

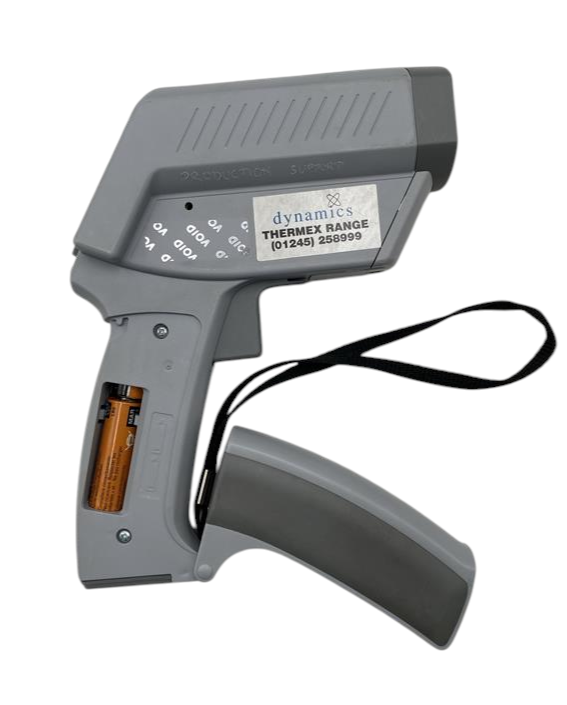

Battery Requirements: Runs on two standard AA alkaline batteries (referenced as R6, AA, or UM3).
Battery Endurance: Delivers a minimum continuous battery lifespan of 10 hours.
Core Specifications
Temperature Range: -30°C to 900°C (-25°F to 1600°F)
Optical Resolution (Distance to Spot): 60:1 (Excellent for long-range or small-target measurements)
Accuracy: ±1% of reading or ±1°C (±1.5°F), whichever is greater
Display Resolution: 0.1°C (0.2°F)
Spectral Range: 8 to 14 µm
Response Time: 250 milliseconds (95% response)
Key Features
Laser Targeting: Displays the actual spot size being measured.
Adjustable Emissivity: Range can be adjusted manually; features a built-in pre-set chart for common materials (e.g., Concrete: 0.95, Glass: 0.85, Iron: 0.70).
Alarms: High Alarm (HiAl) setting that triggers both a visual flashing light ("Laserflash") and an audible buzzer.
Measurement Modes: Tracks and displays minimum and maximum temperature values simultaneously on the bottom of the screen.
Power & Hardware
Batteries: Power by 2 x 1.5V AA Alkaline batteries.
Physical Mounting: Built-in 1/4"-20 UNC tripod mount on the base.

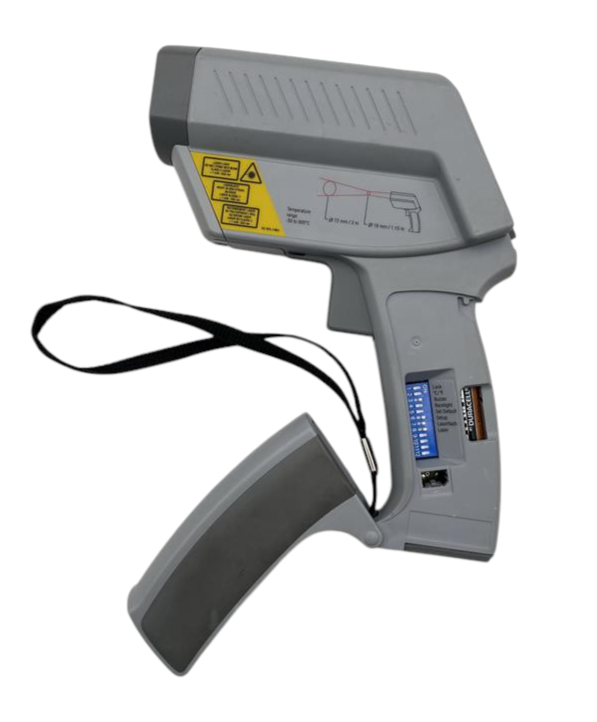

Internal Settings (DIL Switches): Located in the battery compartment to permanently toggle:
Trigger Lock (On/Off) / Buzzer & Backlight (On/Off)
