GN-Nettest InterWatch 95000 ATM/LAN/WAN Protocol Analyzer
Pre-owned
GN-Nettest InterWatch 95000 ATM/LAN/WAN Protocol Analyzer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: GN-Nettest
Type: ATM/LAN/WAN Protocol Analyzer
MPN: 95000

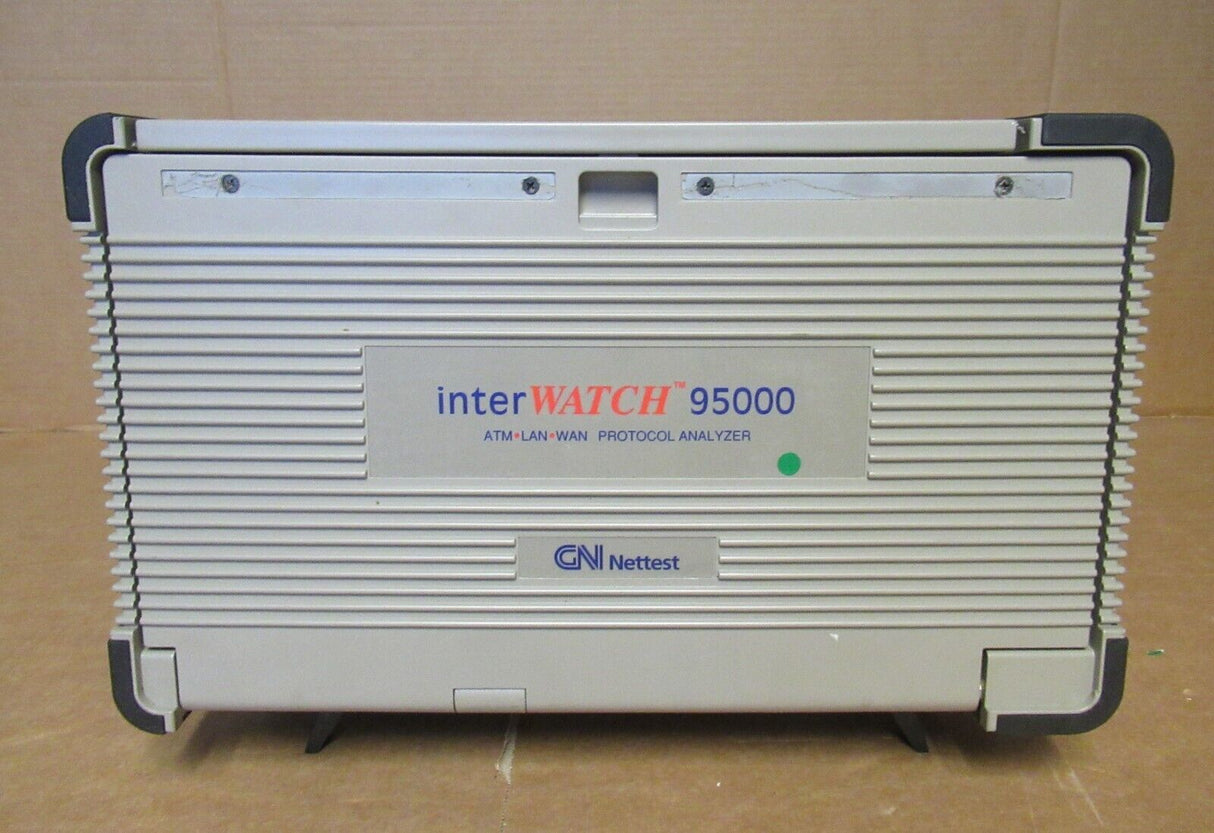

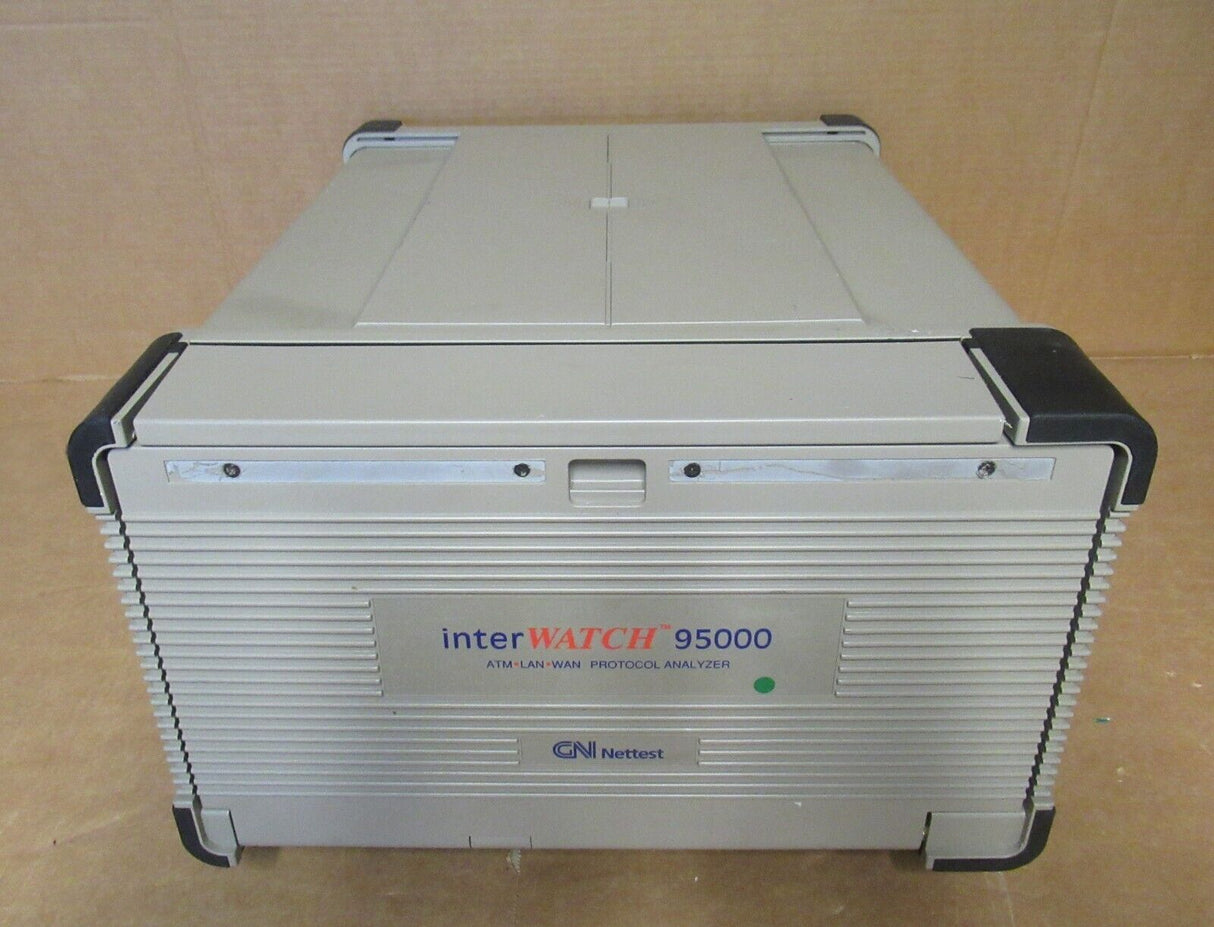

GN-Nettest InterWatch-95000 ATM/LAN/WAN Protocol Analyzer

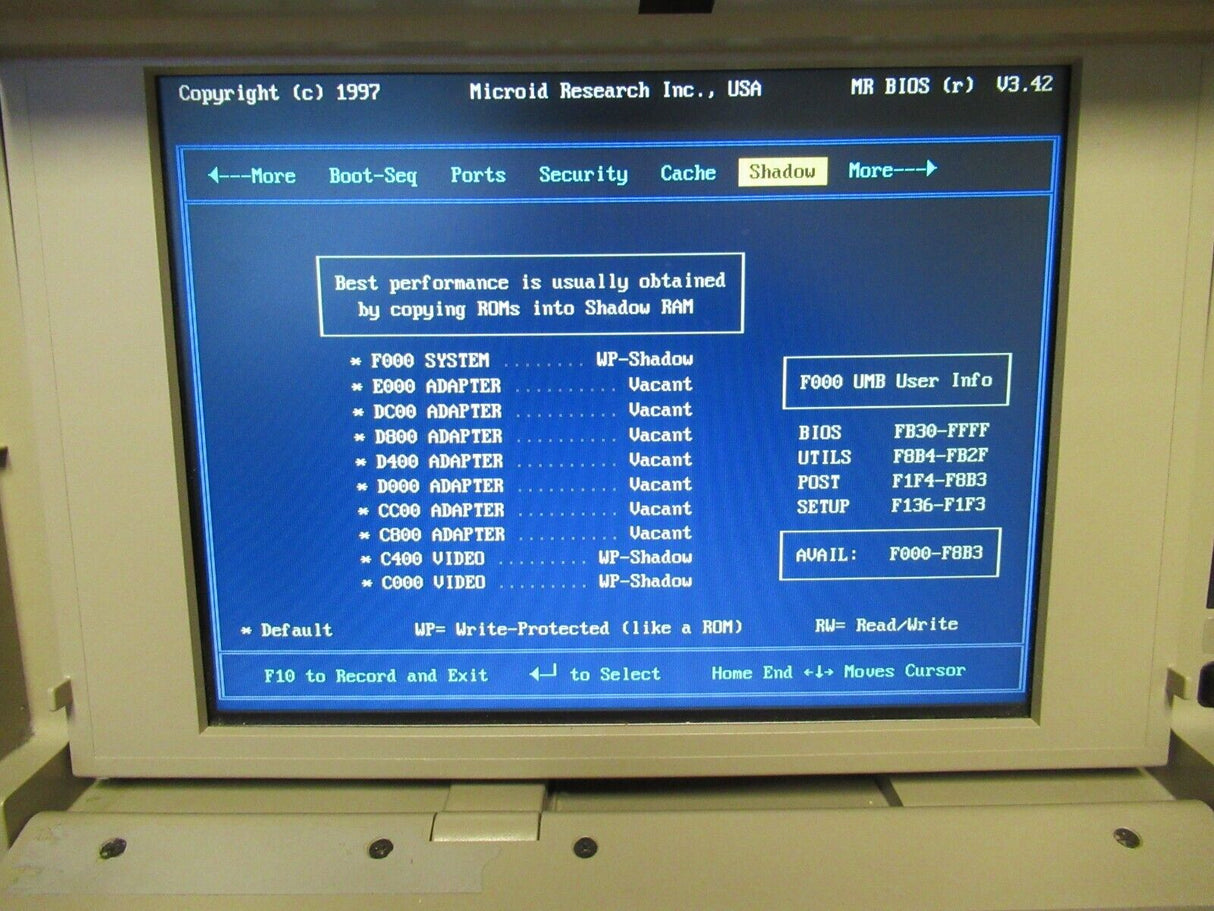

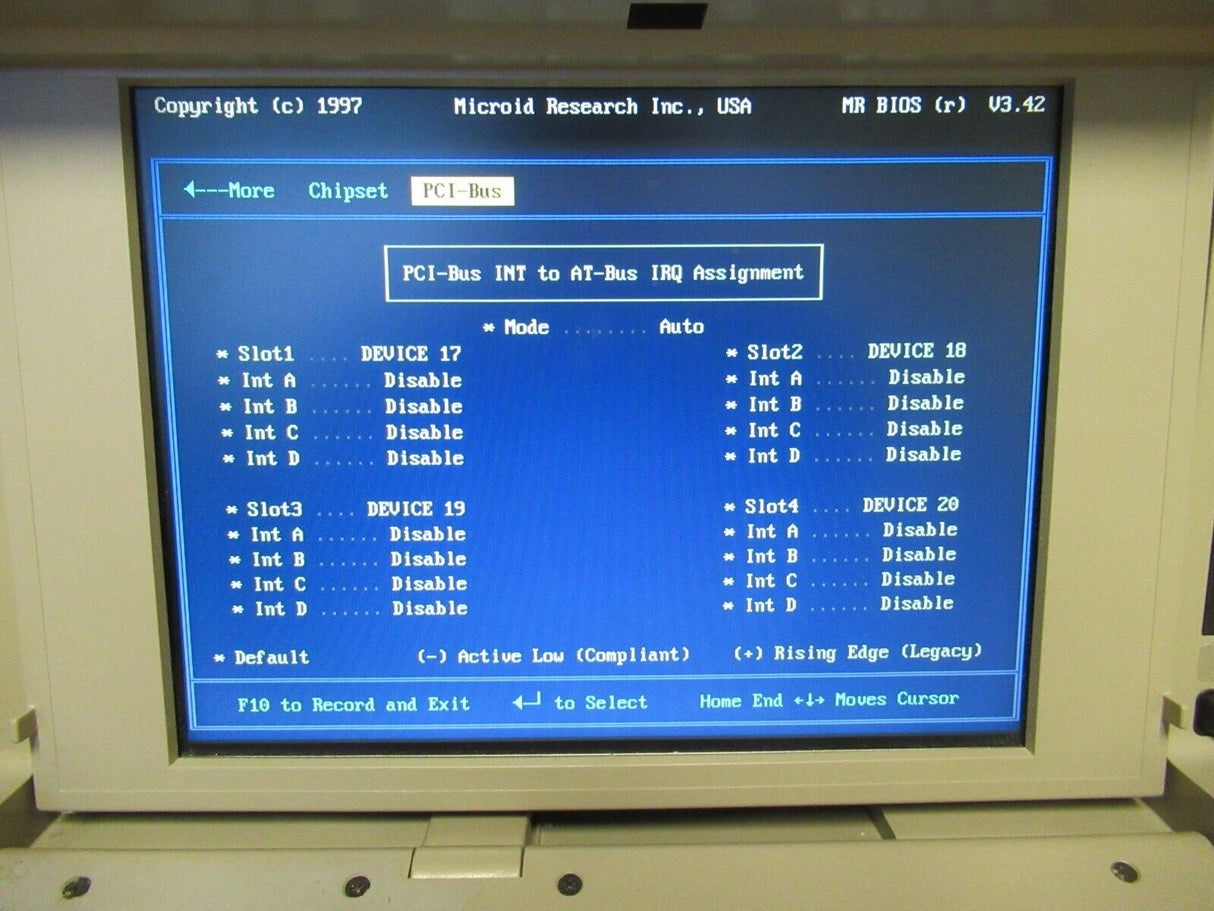

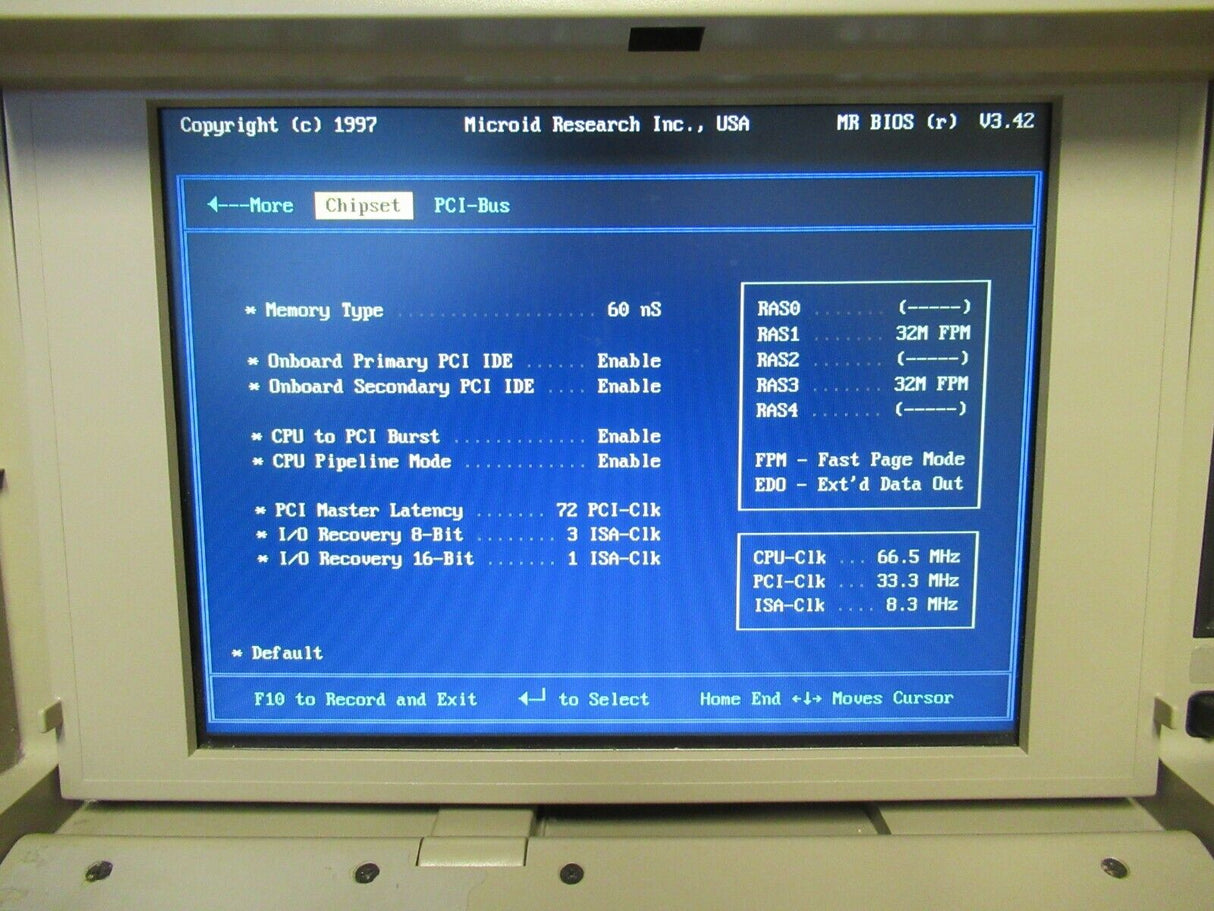

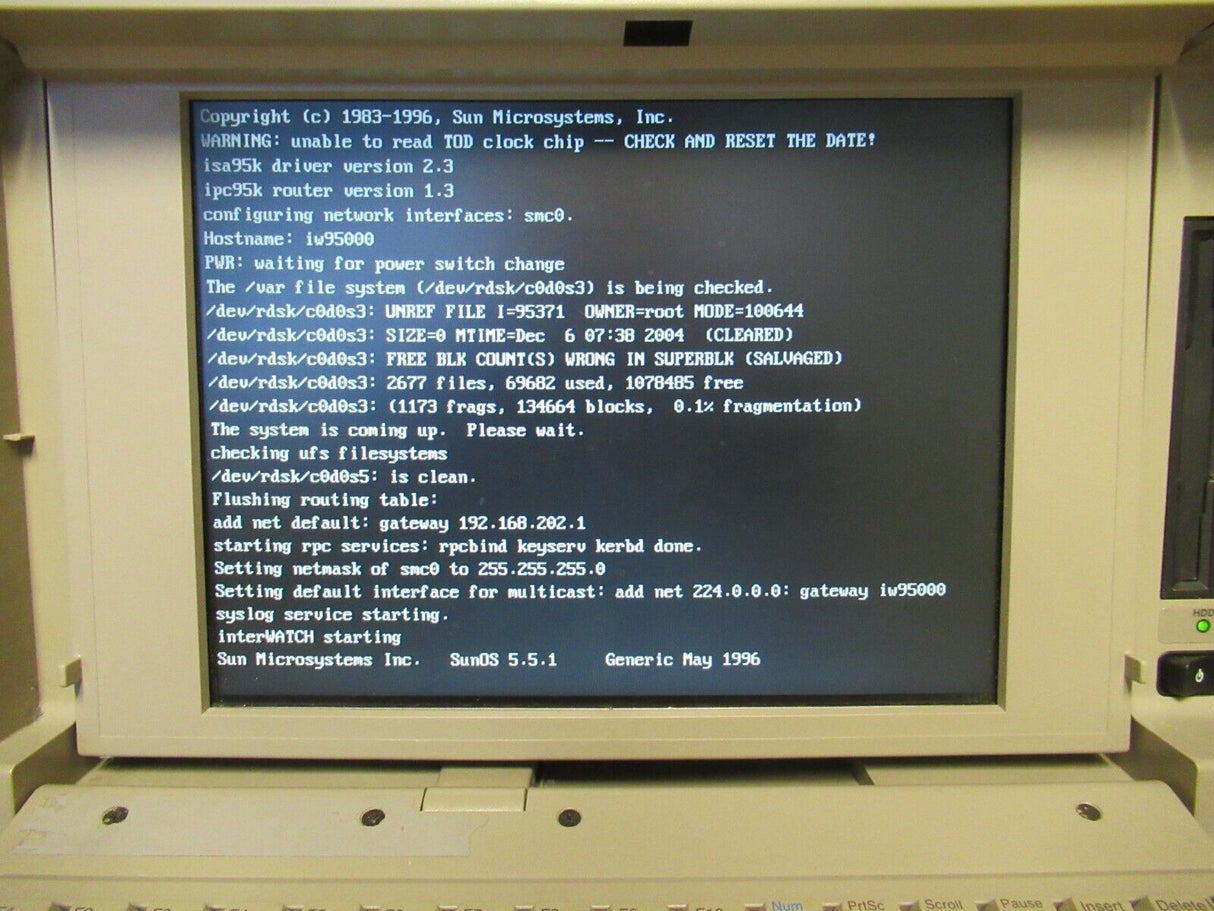

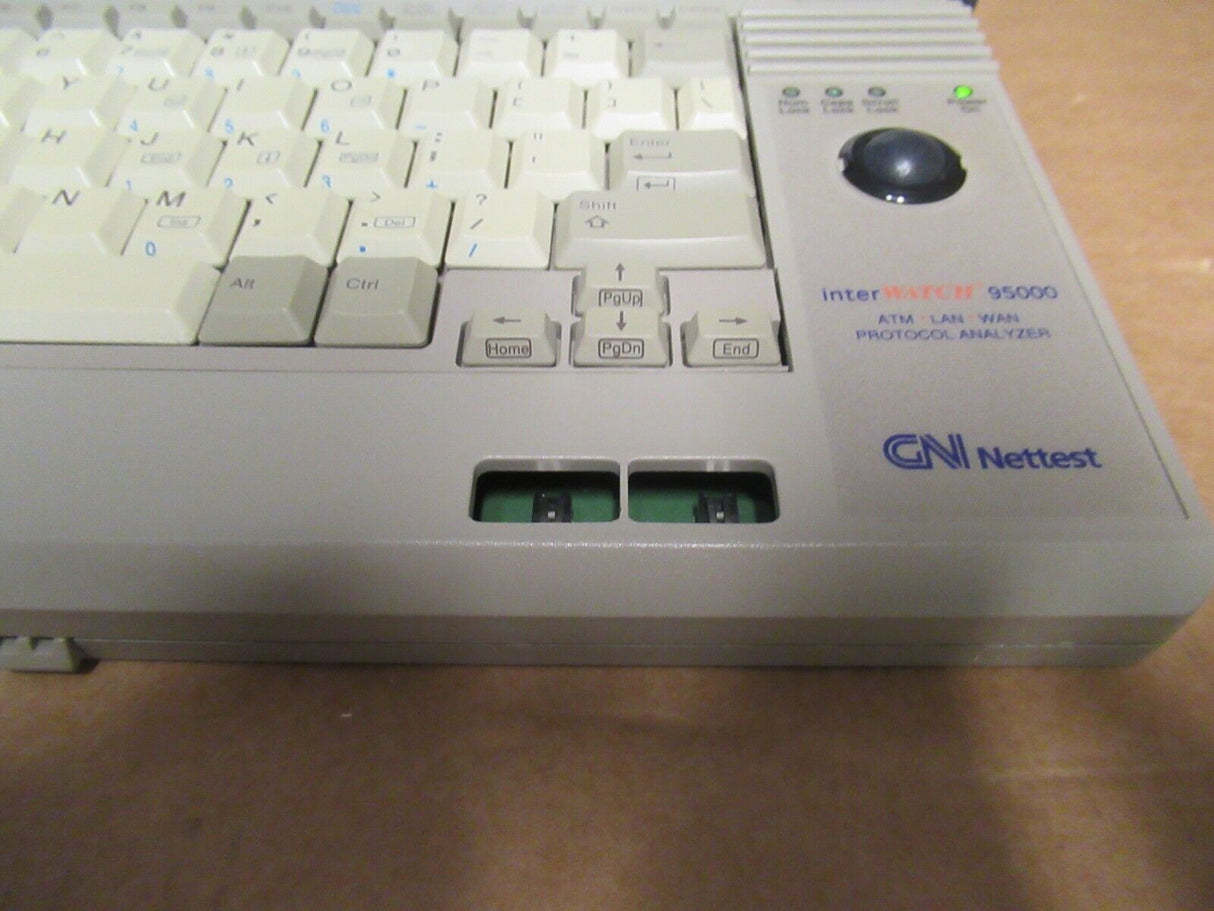

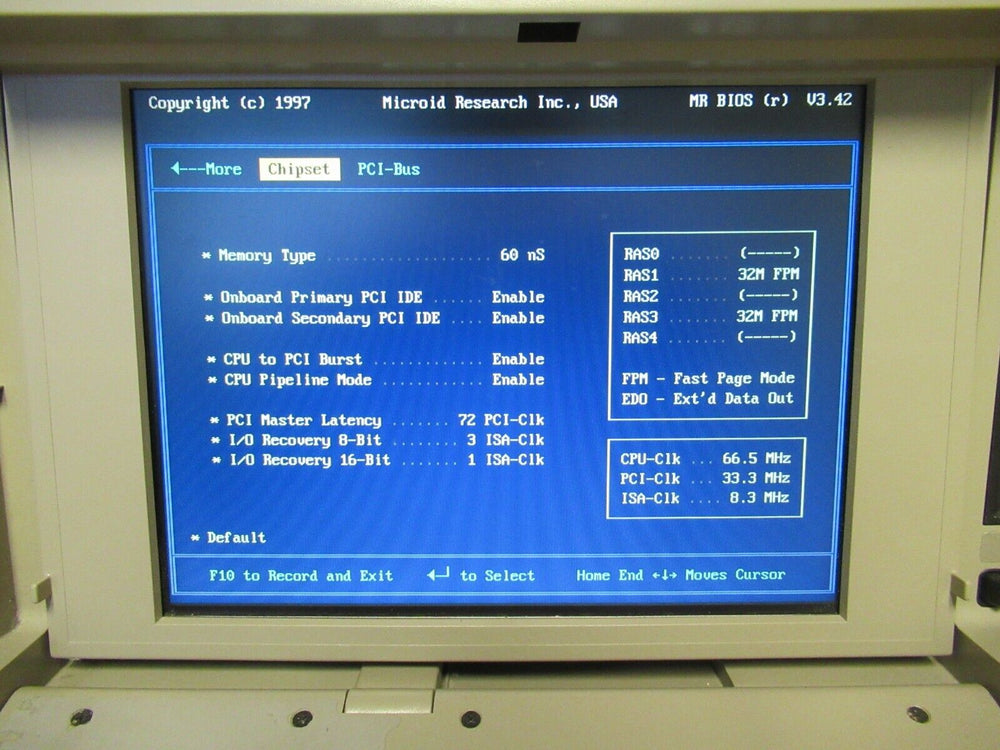

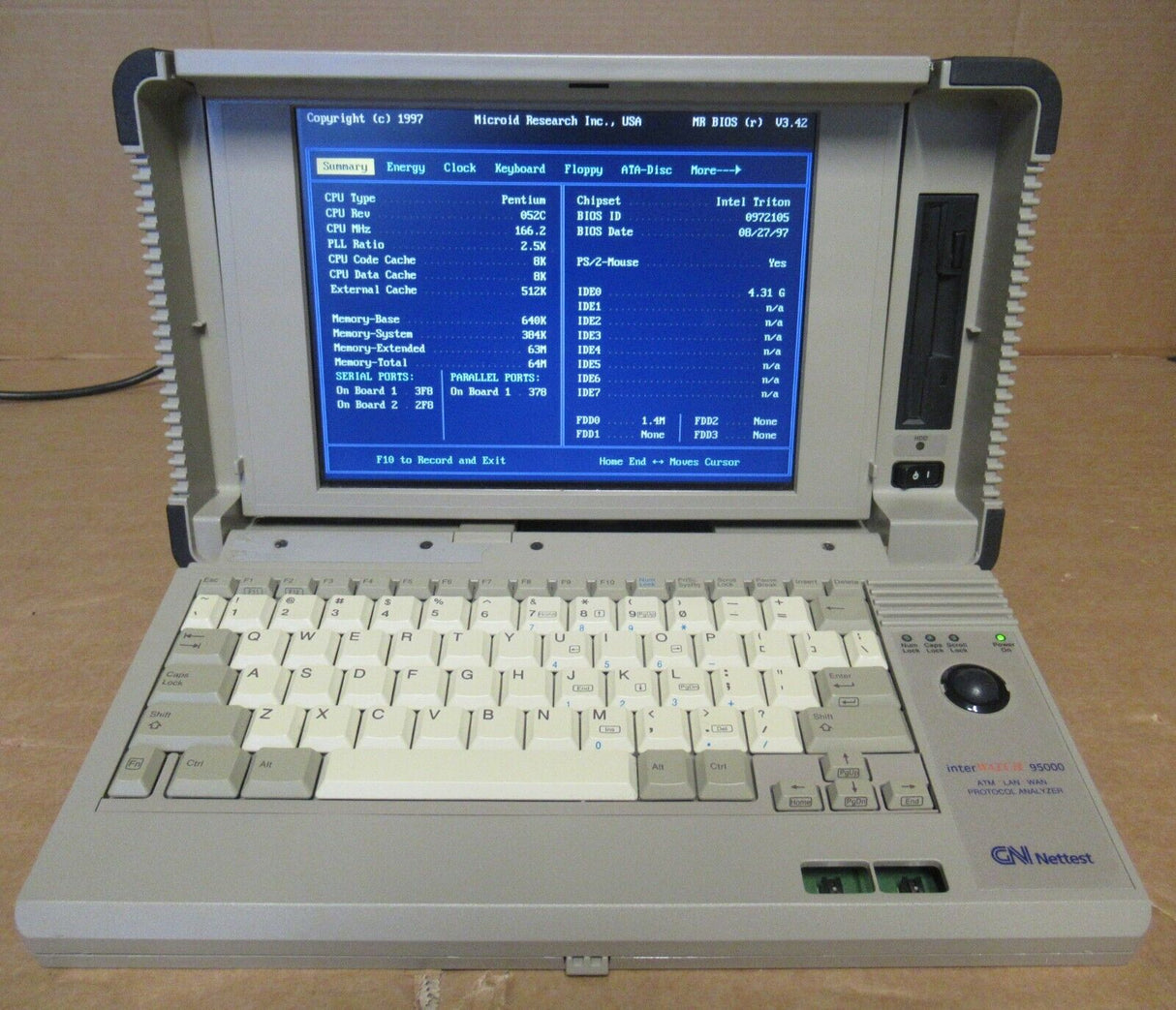

unit functional, mouse button 1 and 2 missing - see pictures
Included:
1x GN-Nettest InterWatch-95000 ATM/LAN/WAN Protocol Analyzer

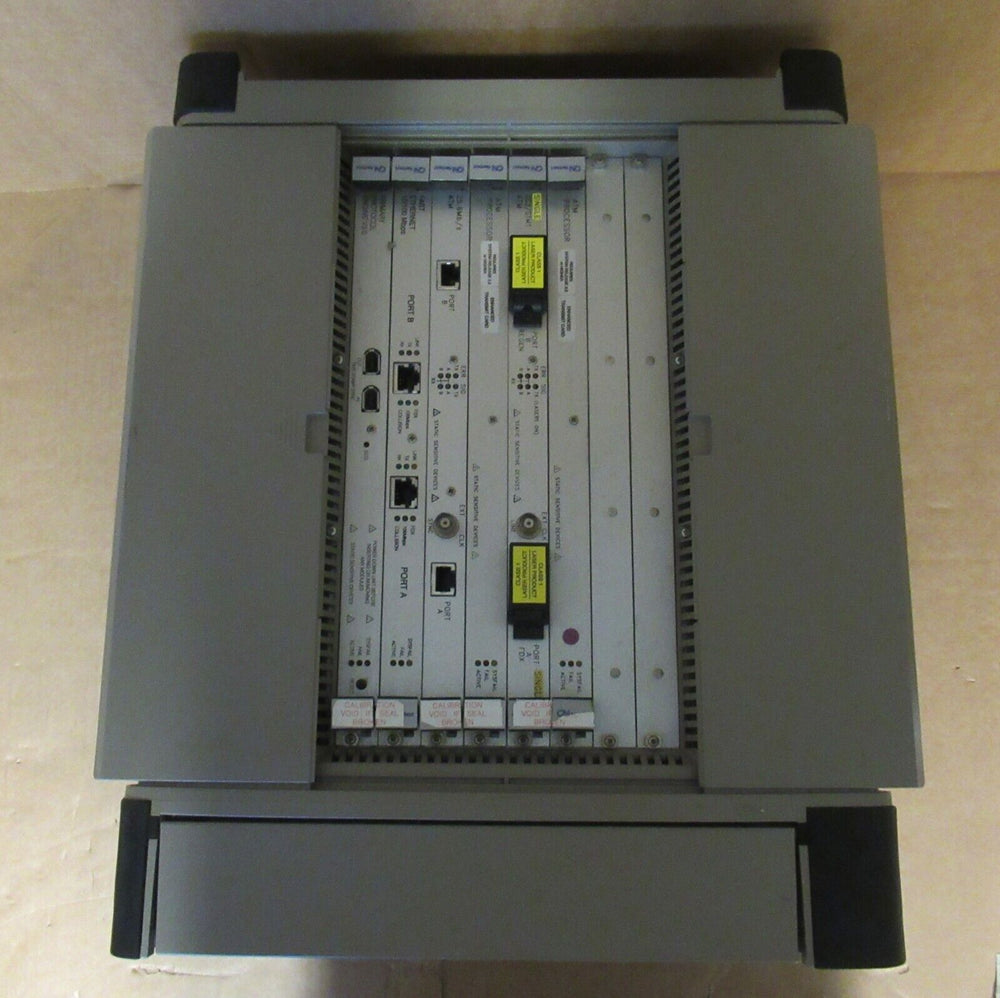

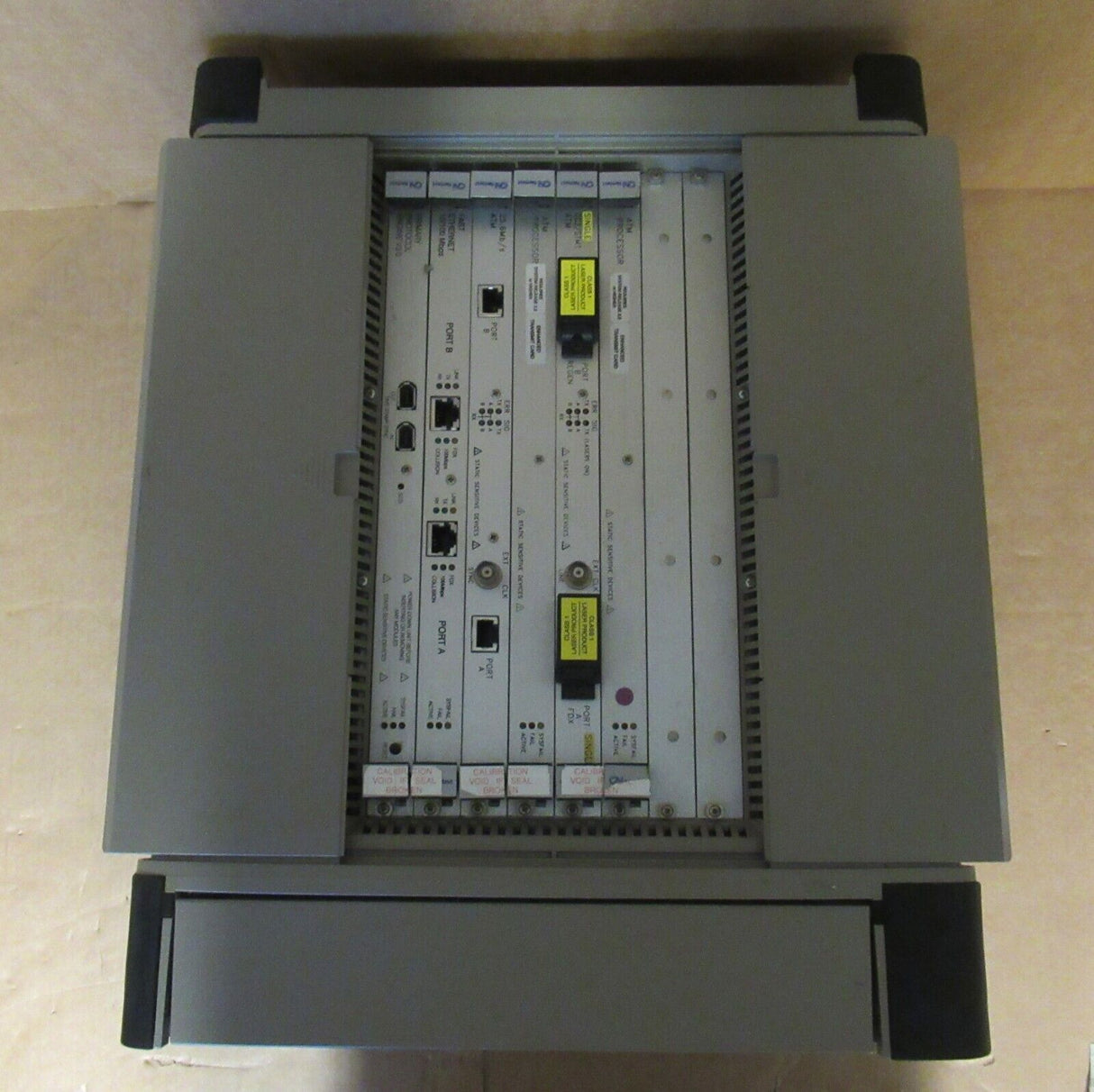

Cards Included:
1 x PPE - Primary Protocol Engine (P/N 01-103121)
64M RAM, VME64 Interface, ISA Bus Interface
Supports multiple interface cards
1 x ETHERNET LAN Module
2 Ethernet ports on a single interface card
Connectors: Dual AUI, BNC RJ-45 (P/N 01-103102)
2 x 25.6 Mbps ATM Module
Clock: BNC TTL (Ext. Line)
1 x Daughter Card - OC-3c/STM-1 SINGLE MODE
Test Slots Occupied 2
Processor i960
Data Paths 1 Transmit 2 Receive 1 Regenerator
Encoding STS-3c SONET or STM-1 SDN
Fiber 8 micron core
Wavelength 1260 to 1360 nm
Connectors Dual Duplex SC
BNC AC-coupled ECL (External Line Clock)
Output Power -8 dBm (maximum) / -15 dBm (minimum)
Receive Sensitivity -28 dBm (minimum) / -33 dBm (typical)
Clocking 155.52 Mbps +/- 20 ppm (internal)
1 x Daughter Card
ATM 25.6 Mbps
Test Slots Occupied 2
Processor i960
Data Paths 1 Transmit 2 Receive 1 Regenerator
Encoding NRZ1
Connectors RJ-45 (Receive)
RJ-45 (Transmit)
BNC TTL male (Ext. sync clock)
Transmit Clock 25.6 Mbps +/- 100 ppm
The InterWATCH 95000 is a multiport, integrated ATM/LAN/WAN protocol analyzer providing: a reasonable entry cost; field upgradeable; and full multi-unit remote control capability, through standard SNM, letting expensive technical resources use InterWATCH 95000 to manage a network from a remote central location.
The 95000 provides solutions to complex testing problems. The ATAK option provides extreme flexibility and the capability for unlimited "smarts" by embedding industry standard Tcl scripting features directly into the interWATCH 95000 system.
Also the 95000 can monitor and correlate traffic on native LAN with the Frame Relay traffic and encapsulated LAN traffic on the WAN. An extensive set of filters, statistics and protocol decodes are also available for analyzing LAN Emulation over ATM (LANE), Frame Relay over ATM (FUNI) and PNNI.
Specifications:
Simultaneous, Multiport ATM/LAN/WAN Analysis
ATM standards
ATM physical layer (GCRA, UPC, CDV, etc) and AAL layer testing
ATM QoS (0.191): Cell Error, Cell Loss, Cell Delay, Cell Delay Variation, Cell Mis-insertion (at line rate)
ATM Signalling: Q.2931, UNI 3.0, 3.1, 4.0, (ILMI, PNNI, LANE, etc)
ATM Network Impairment (Cell Errors, Cell Loss, Cell Mis-insertion, etc)
Legacy network support for Ethernet, Token Ring and Frame Relay
Automated testing solutions - Pre-written packages and authoring tools
Automatic higher layer protocol detection in real time
Multiport traffic generation @ 100% Utilization (155Mb/s)
7-layer protocol analysis (decodes, filters, statistics and triggers)
