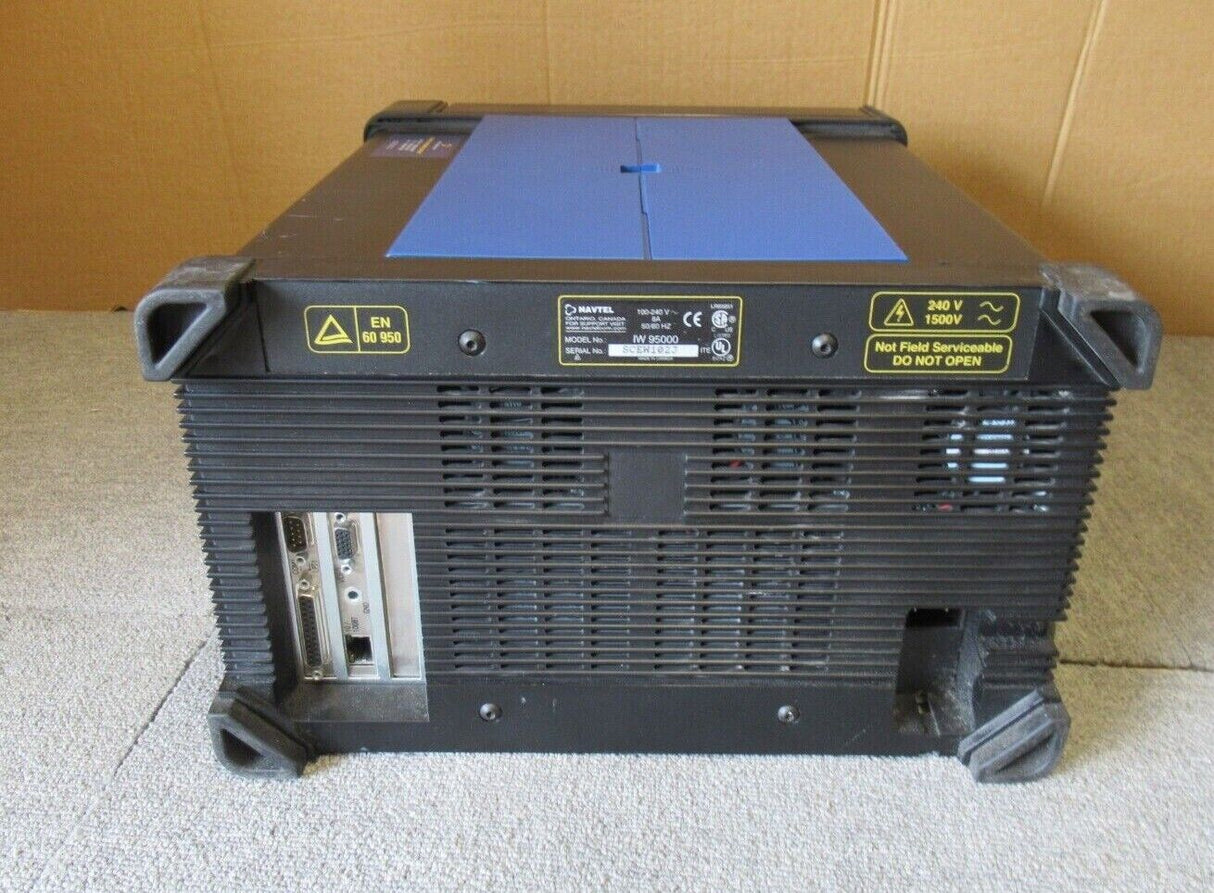

GN-Nettest InterWatch 95000 IW95000 ATM/LAN/WAN Performance Verification System
Pre-owned
GN-Nettest InterWatch 95000 IW95000 ATM/LAN/WAN Performance Verification System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
ATM physical layer: (GCRA, UPC, CDV, etc) and AAL layer testing
ATM: standards
ATM Signalling: Q.2931, UNI 3.0, 3.1, 4.0, (ILMI, PNNI, LANE, etc)
protocol analysis: 7-layer
Type: ATM/LAN/WAN Protocol Analyzer
MPN: 95000 IW95000
Brand: GN Nettest

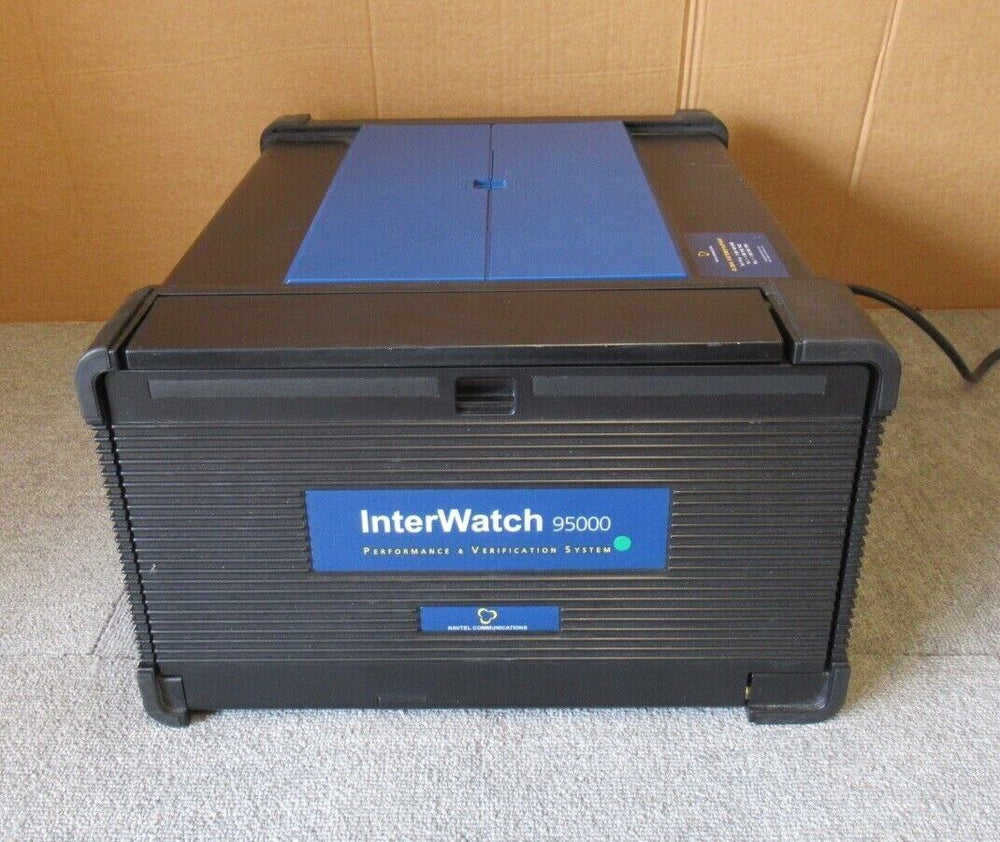

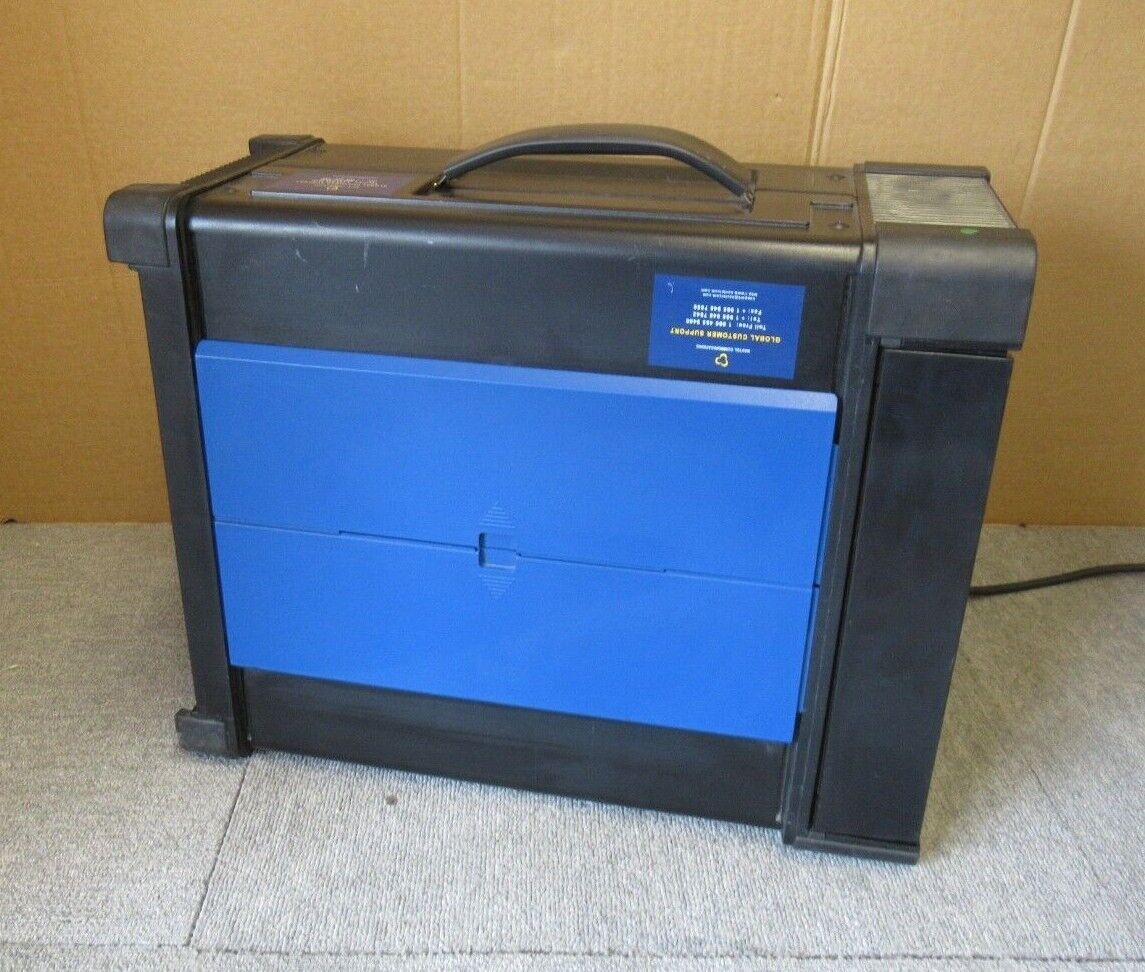

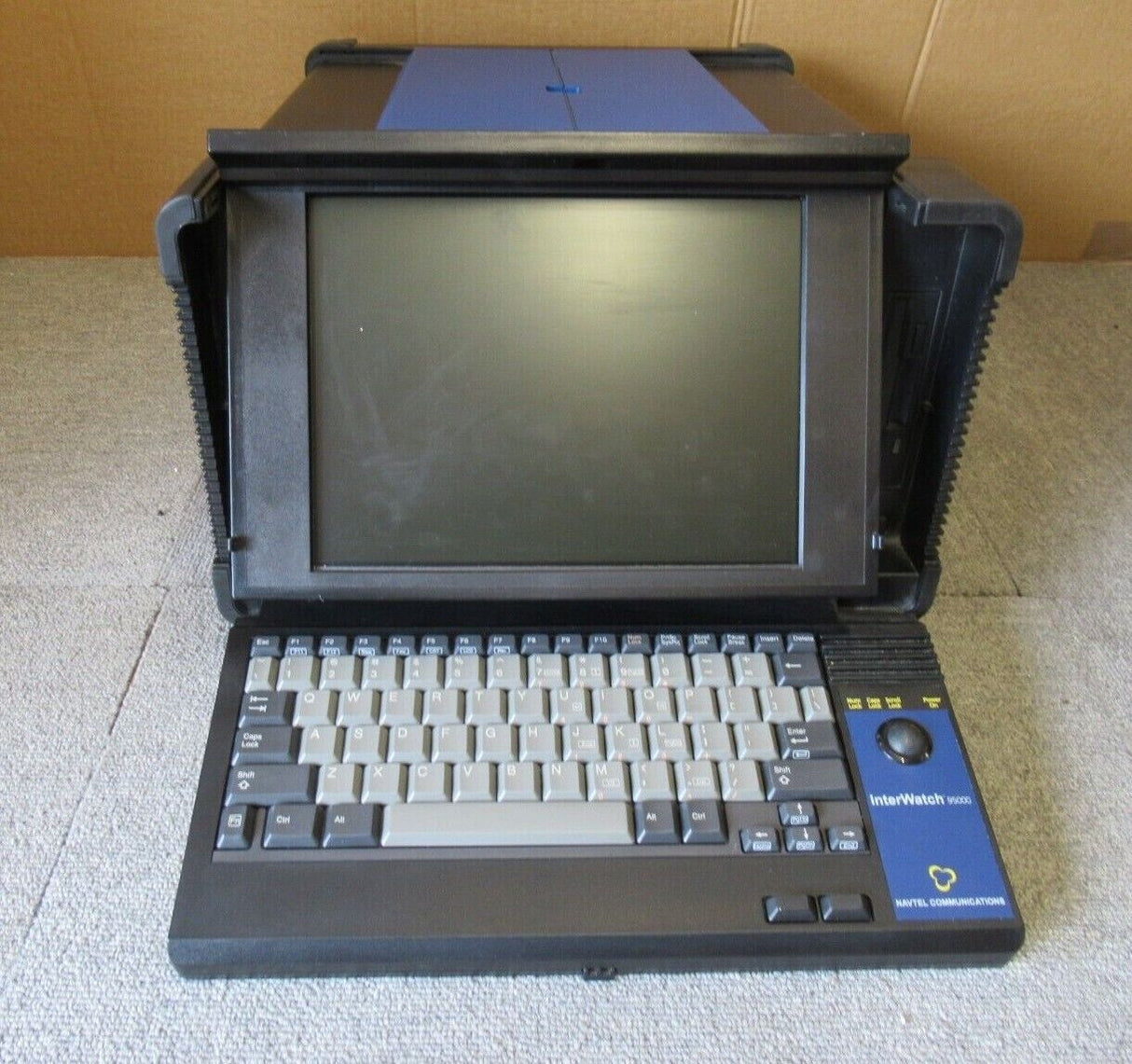

GN Nettest InterWatch 95000 IW95000 ATM/LAN/WAN Performance Verification System
In good condition and full working order
Mains power cable included
Included:
1x GN Nettest InterWatch 95000 IW95000 ATM/LAN/WAN Performance Verification System

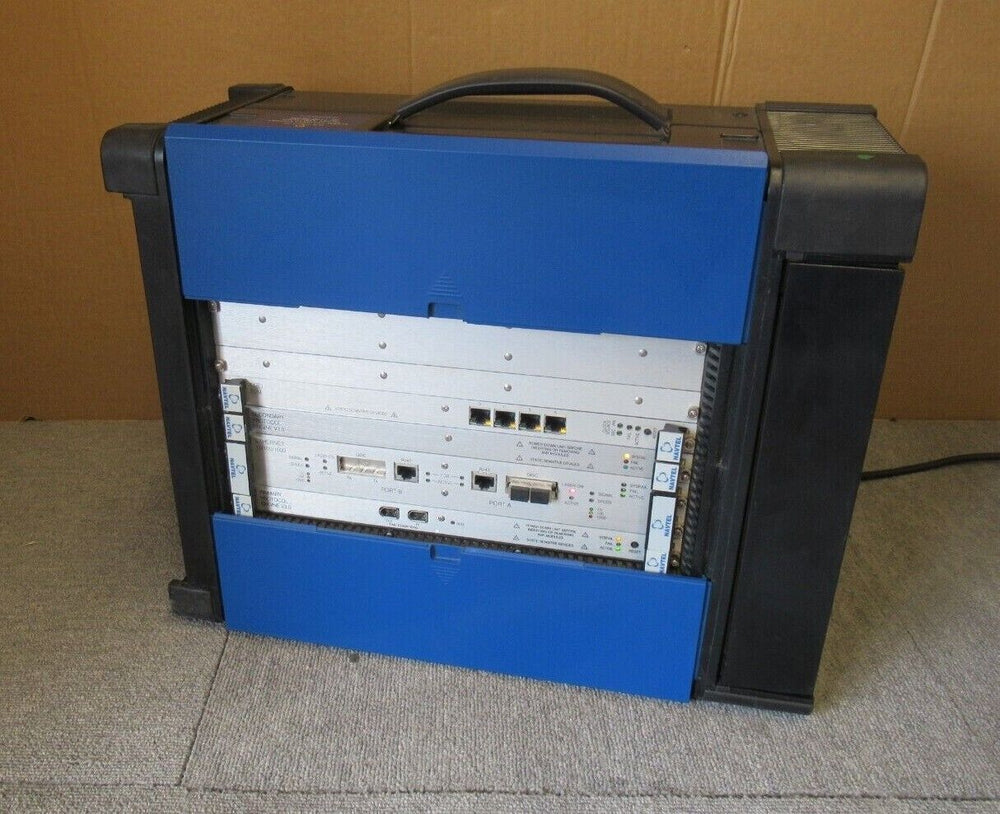

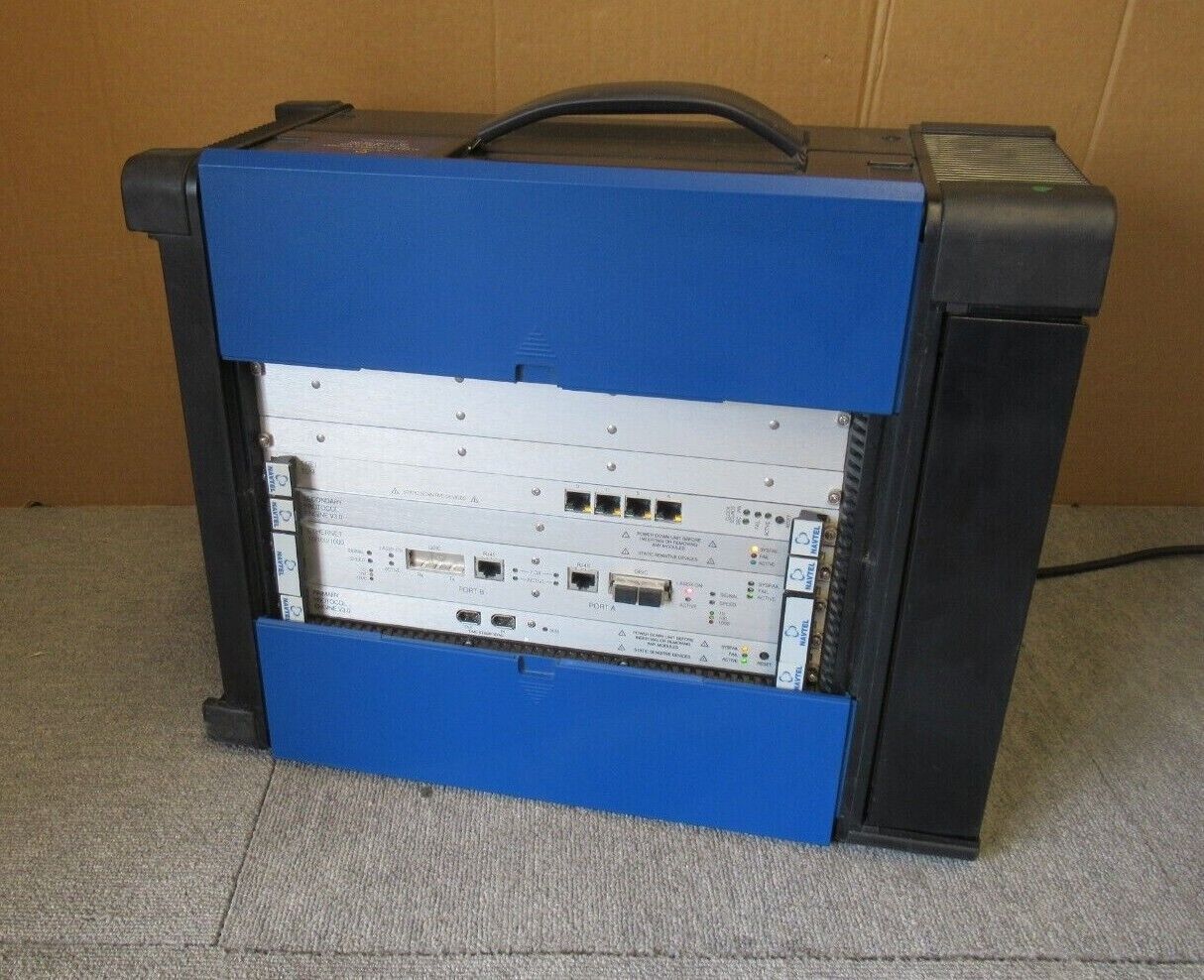

Module Included:

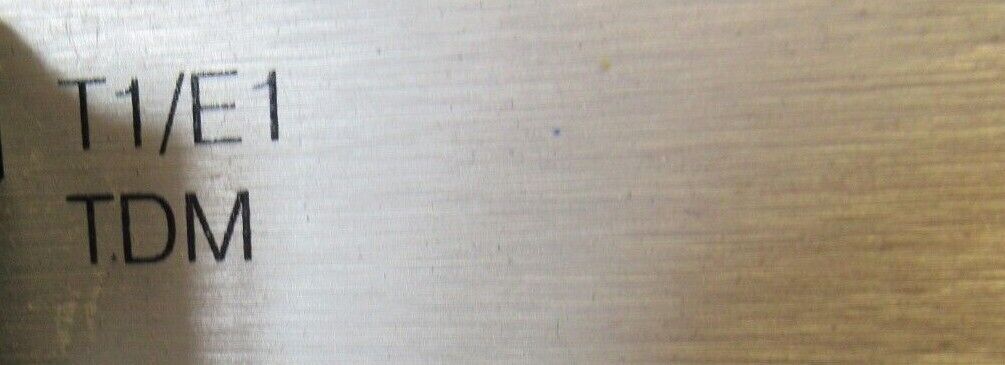

T1/E1 TDM
Secondary Protocol Engine V3.0

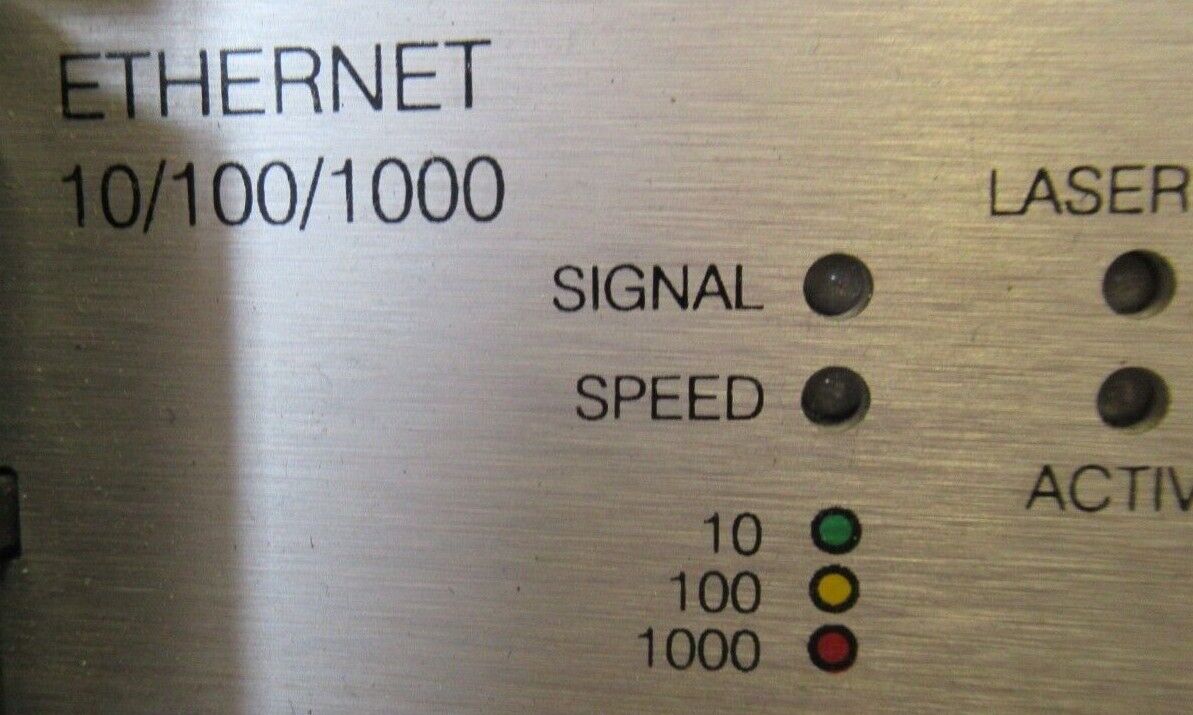

Ethernet 10/100/1000

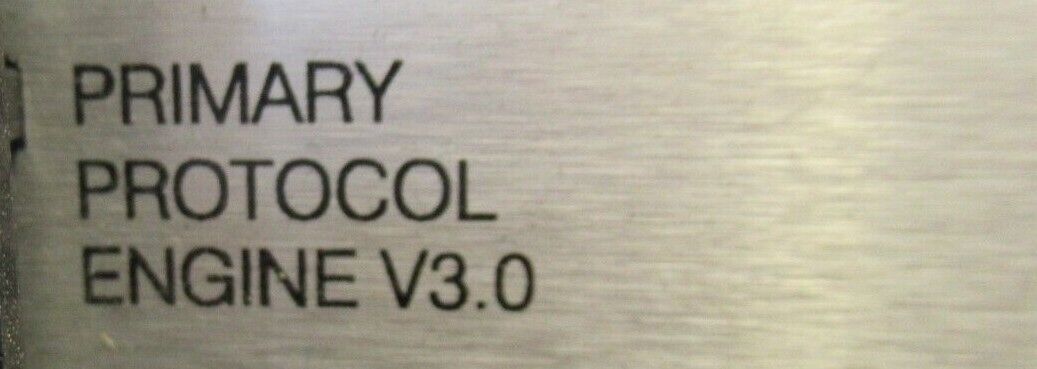

Primary Protocol Engine V3.0
More Info:
The InterWATCH 95000 is a multiport, integrated ATM/LAN/WAN protocol analyzer providing: a reasonable entry cost; field upgradeable; and full multi-unit remote control capability, through standard SNM, letting expensive technical resources use InterWATCH 95000 to manage a network from a remote central location.
The 95000 provides solutions to complex testing problems. The ATAK option provides extreme flexibility and the capability for unlimited "smarts" by embedding industry standard Tcl scripting features directly into the interWATCH 95000 system.
Also the 95000 can monitor and correlate traffic on native LAN with the Frame Relay traffic and encapsulated LAN traffic on the WAN. An extensive set of filters, statistics and protocol decodes are also available for analyzing LAN Emulation over ATM (LANE), Frame Relay over ATM (FUNI) and PNNI.
Features:
InterWATCH 95000 is designed to deliver total network test solutions:
Simultaneous, Multiport ATM/LAN/WAN Analysis
ATM standards
ATM physical layer (GCRA, UPC, CDV, etc) and AAL layer testing
ATM QoS (0.191): Cell Error, Cell Loss, Cell Delay, Cell Delay Variation, Cell Mis-insertion (at line rate)
ATM Signalling: Q.2931, UNI 3.0, 3.1, 4.0, (ILMI, PNNI, LANE, etc)
ATM Network Impairment (Cell Errors, Cell Loss, Cell Mis-insertion, etc)
Legacy network support for Ethernet, Token Ring and Frame Relay
Automated testing solutions - Pre-written packages and authoring tools
Automatic higher layer protocol detection in real time
Multiport traffic generation @ 100% Utilization (155Mb/s)
7-layer protocol analysis (decodes, filters, statistics and triggers
