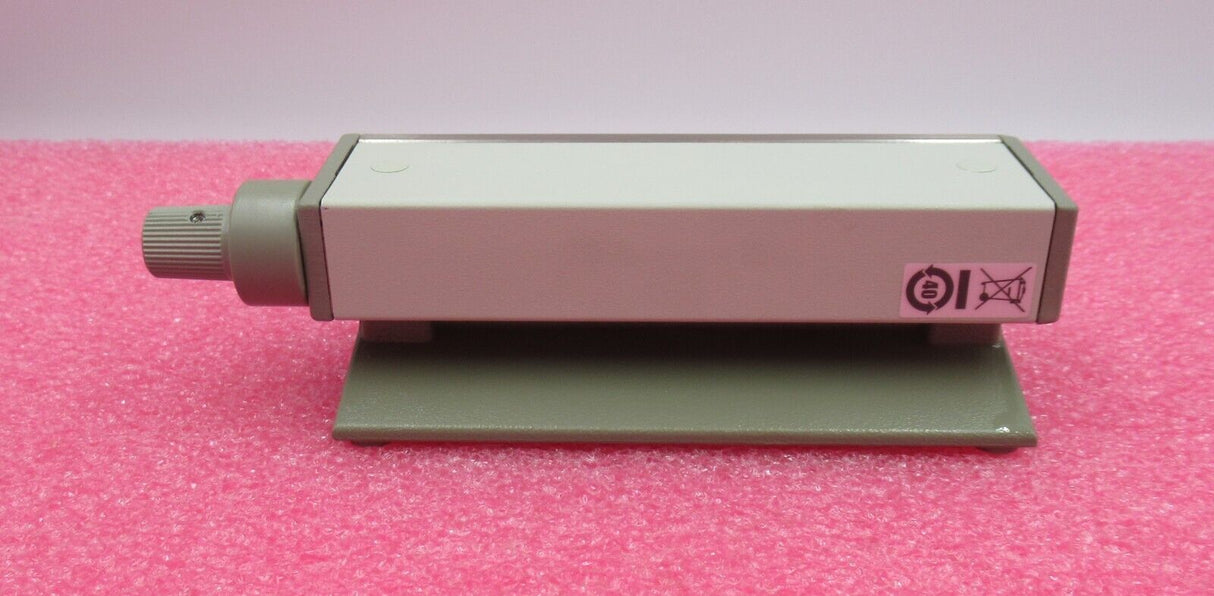

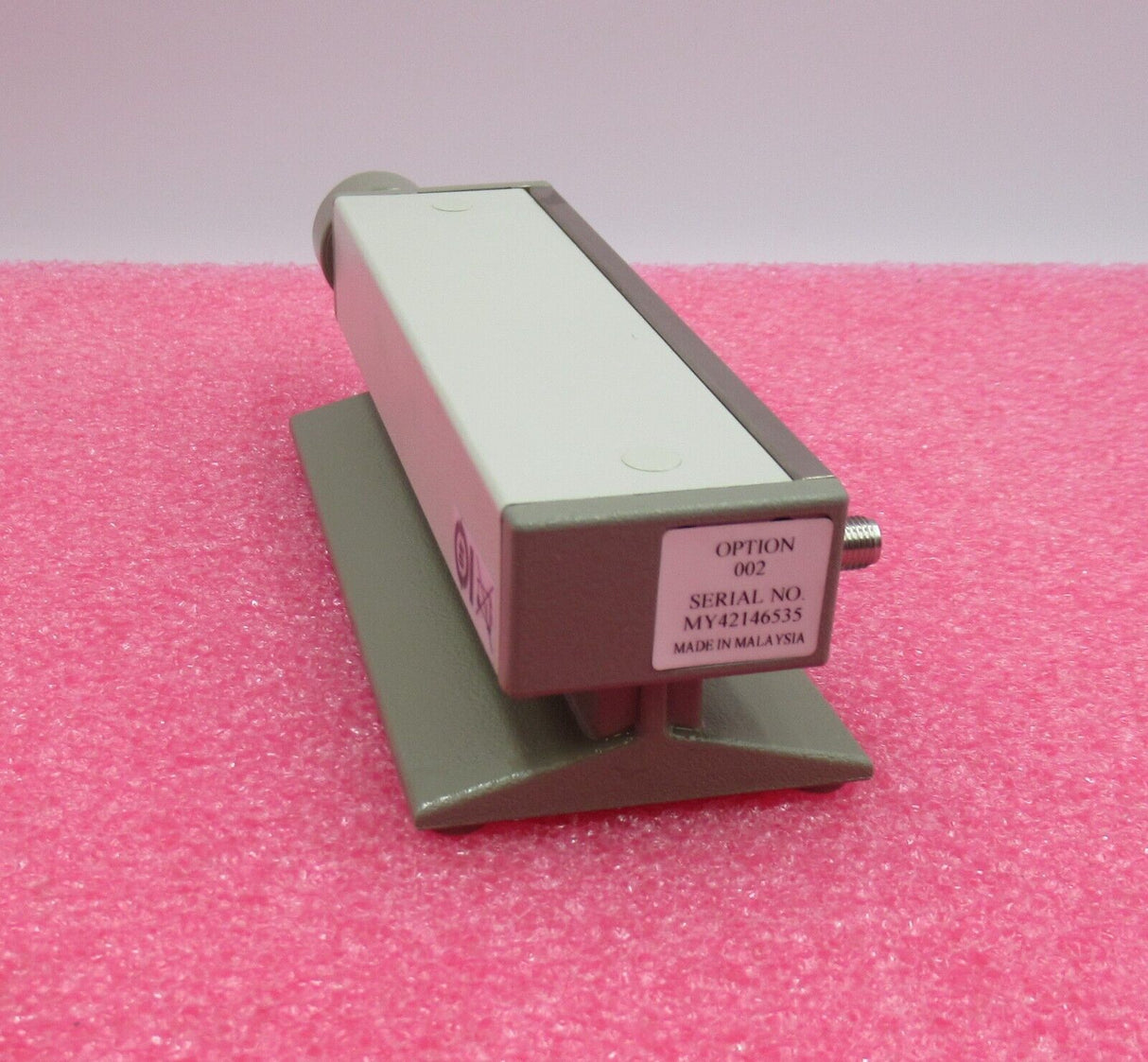

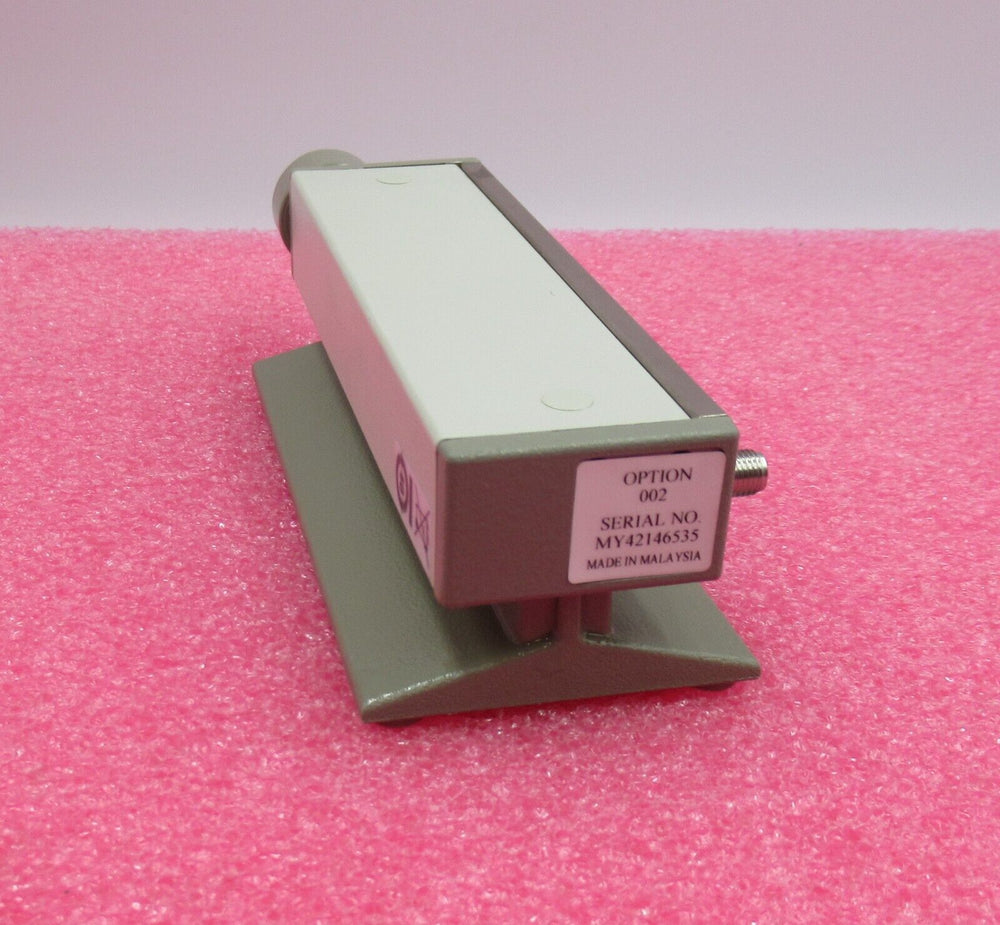

HP Keysight Agilent 8494A Manual Step Attenuator 4GHz 11dB 1dB
Pre-owned
HP Keysight Agilent 8494A Manual Step Attenuator 4GHz 11dB 1dB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Brand: HP Keysight Agilent
Frequency range: dc to 4 GHz
Insertion loss at: t 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum RF Input Power: 1 W (average), 100 W (peak)
Maximum SWR: 1.5
5 million cycles: per section
MPN: 8494A
Repeatability life: 0.03 dB max 5 million cycles per section, typical
Connector type: choice of type-N female, SMA female, APC-7
HP Keysight Agilent 8494A Manual Step Attenuator 4GHz 11dB 1dB
Part Number: 8494A
In good condition and full working order
Included:
1x HP Keysight Agilent 8494A Manual Step Attenuator 4GHz 11dB 1dB
More Info:
Superior RF Performance
Frequency Range: dc to 4 GHz
Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum SWR: 1.5
Repeatability and Life Span:
Repeatability life: 0.03 dB max 5 million cycles per section, typical
5 million cycles per section
Power handling:
Maximum RF Input Power: 1 W (average), 100 W (peak)
Features:
Connector Type: choice of Type-N female, SMA female, APC-7
Connect in series with 11716A Attenuator Interconnect Kit, Type-N
Connect in series with 11716C Attenuator Interconnect Kit, SMA
The Keysight 8494A, dc to 4 GHz manual step attenuator, offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
HP Keysight Agilent 8494A Manual Step Attenuator 4GHz 11dB 1dB
