Lot of 6x ExacTrack In-CarPC CQ15 Car Vehicle PC Tracker CQ15-2-64SMN-U08
Pre-owned
Lot of 6x ExacTrack In-CarPC CQ15 Car Vehicle PC Tracker CQ15-2-64SMN-U08 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Colour: Black

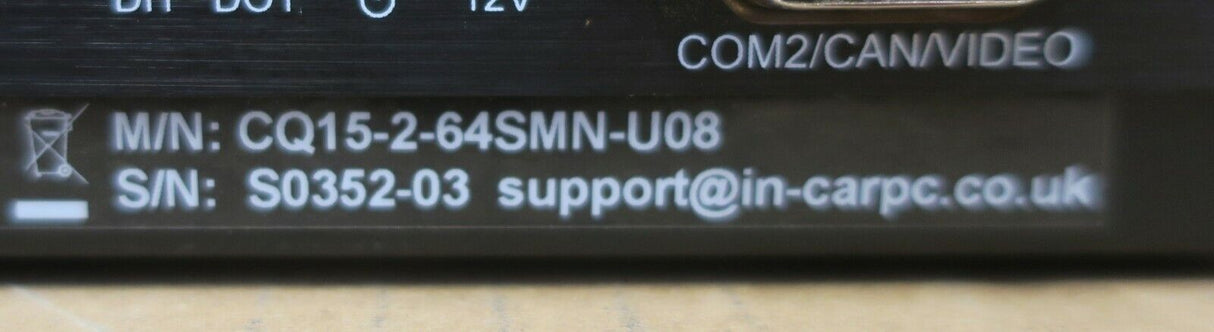

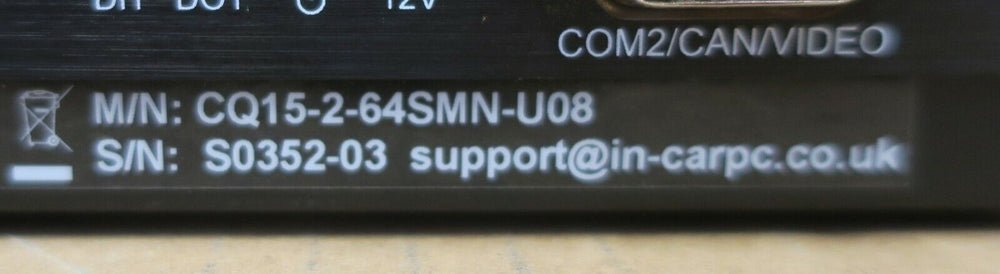

Manufacturer Part Number: CQ15-2-64SMN-U08
Brand: ExaxTrak In-CarPC
P/N: CQ15-2-64SMN-U08

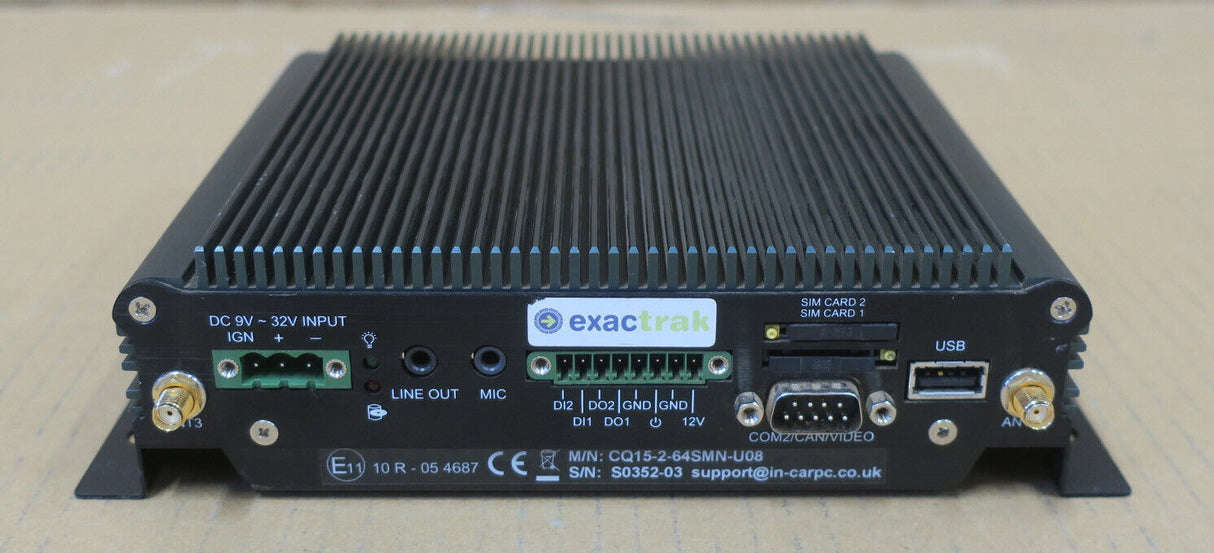

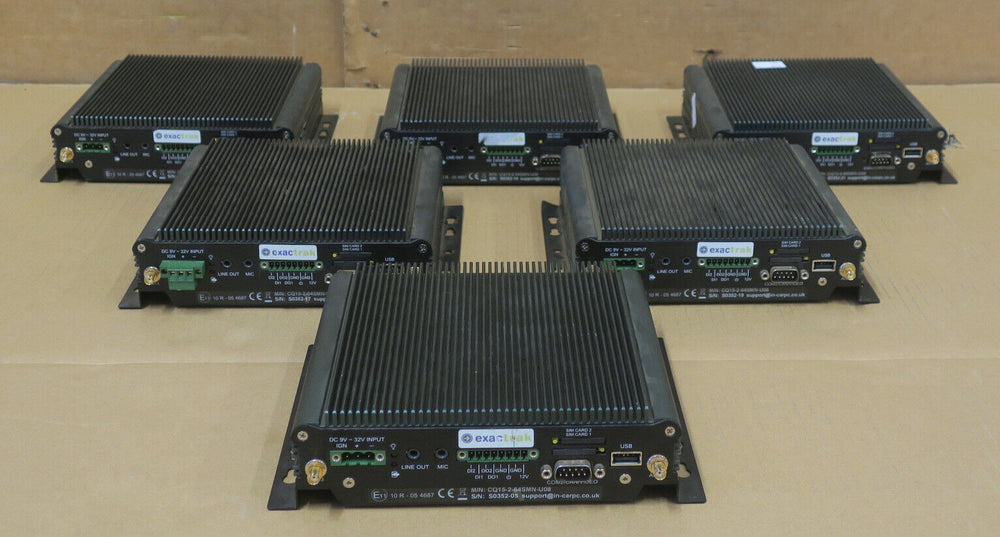

Lot of 6x ExacTrack In-CarPC CQ15 Car Vehicle PC Tracker CQ15-2-64SMN-U08
In good condition and full working order, supplied as shown in the photo
Included:
1x Lot of 6x ExacTrack In-CarPC CQ15 Car Vehicle PC Tracker CQ15-2-64SMN-U08
Overview:
In-CarPC's CQ15 fanless PC is our entry-level fanless PC designed for vehicle environments, and offers outstanding functionality in an extremely compact form factor. The CQ15 features an Intel Atom D2550 processor with up to 4 GB RAM and numerous built-in options including cellular (with dual-SIM slots), GPS and GPIO. The fanless nature of the CQ15 makes it suitable for extremely dusty environments, and the device's ruggedness is demonstrated by multiple MIL-STD-810F tests.
Features
Intel Atom D2550 1.86 GHz dual core processor
Up to 4 GB DDR3 RAM
HDD from 250 GB to 1 TB or SSD from 32 GB to 1 TB
DVI-I video output supporting dual independent displays (VGA & DVI-D)
Optional internal 3G / 4G, GPS (DR), WLAN, Bluetooth, CAN & video capture modules
Dual SIM card slots for built-in cellular modem
2 x digital inputs and 2 x digital outputs (supporting relay switching)
Optional internal backup battery (UPS) providing approx. 10 minutes of operation with no external power
3 x USB 2.0 ports
Up to 2 x RS-232 ports
2 x Gigabit Ethernet ports
Auto on/off with vehicle ignition, configurable shut down delays via software, low battery detection
9-32V peak input voltage range
Regulated 12V switched output for powering accessories (2A)
E11 certified - fully approved for automotive use
-40 to +70 degrees operating temperature range (at base specification with extended temperature RAM & SSD)
MIL-STD-810F tests for shock vibration
Specification:
CPU: Intel Atom D2550 1.86 GHz Dual Core with Hyper-Threading technology, 1 MB cache
RAM: Up to 4 GB DDR3 1066 MHz. Optional extended temperature memory for -40 to +70 ˚C operation
LAN: 2x Gigabit Ethernet ports
Audio: HD audio with line-out & mic-in external ports
Graphics: Intel GMA 3650 HD graphics with DVI-I output (providing independent VGA and DVI-D outputs via optional adapter cable) and optional VGA output (shared with DVI-I analogue)
USB 2.0: 3x USB 2.0 ports
Serial Up to 2 x serial ports:
COM 1 (standard) supports RS-232/422/485
COM 2 (optional, not available with VGA / GPS DR / CAN / Video Capture / VGA) supports RS-232 only.
DIO interface
2x digital inputs (high => 3.3V, max input 32V)
2x digital outputs, supporting relay switching (12V, 100 mA)
Status of inputs/outputs is monitored/controlled via software.
GPS (DR)
Optional internal GPS module
Ublox6 chipset
1x SMA connector for GPS antenna (supports active & passive antennas, available separately)
Occupies 1x Mini PCIe slot
Optional internal GPS DR (Dead Reckoning) module
As above but with internal gyroscope external inputs for speed pulse forward/ reverse signal lines (not available with VGA / COM 2 / CAN / Video Capture)
