New GemPlus GemProx-P5 RS485 Contactless Smart Card Reader Interface
NEW
New GemPlus GemProx-P5 RS485 Contactless Smart Card Reader Interface is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product overview
Product overview
Internal: beeper
Serial/USB adaptor: in option
MPN: GemProx-P5
Self: test
Accessories for: easy wall mounting
Compliant with: PC/SC V2.0 specifications
E-purse: command set
LED indicators: 2
Universal power: module in option
Brand: GemPlus
Firmware download: in Flash memory
Card insertion/removal: detection
PayPass automatic: card polling
Mifare® Application: Directory (MAD)
New GemPlus GemProx-P5 RS485 Contactless Smart Card Reader Interface
Model: GemProx-P5
NEW

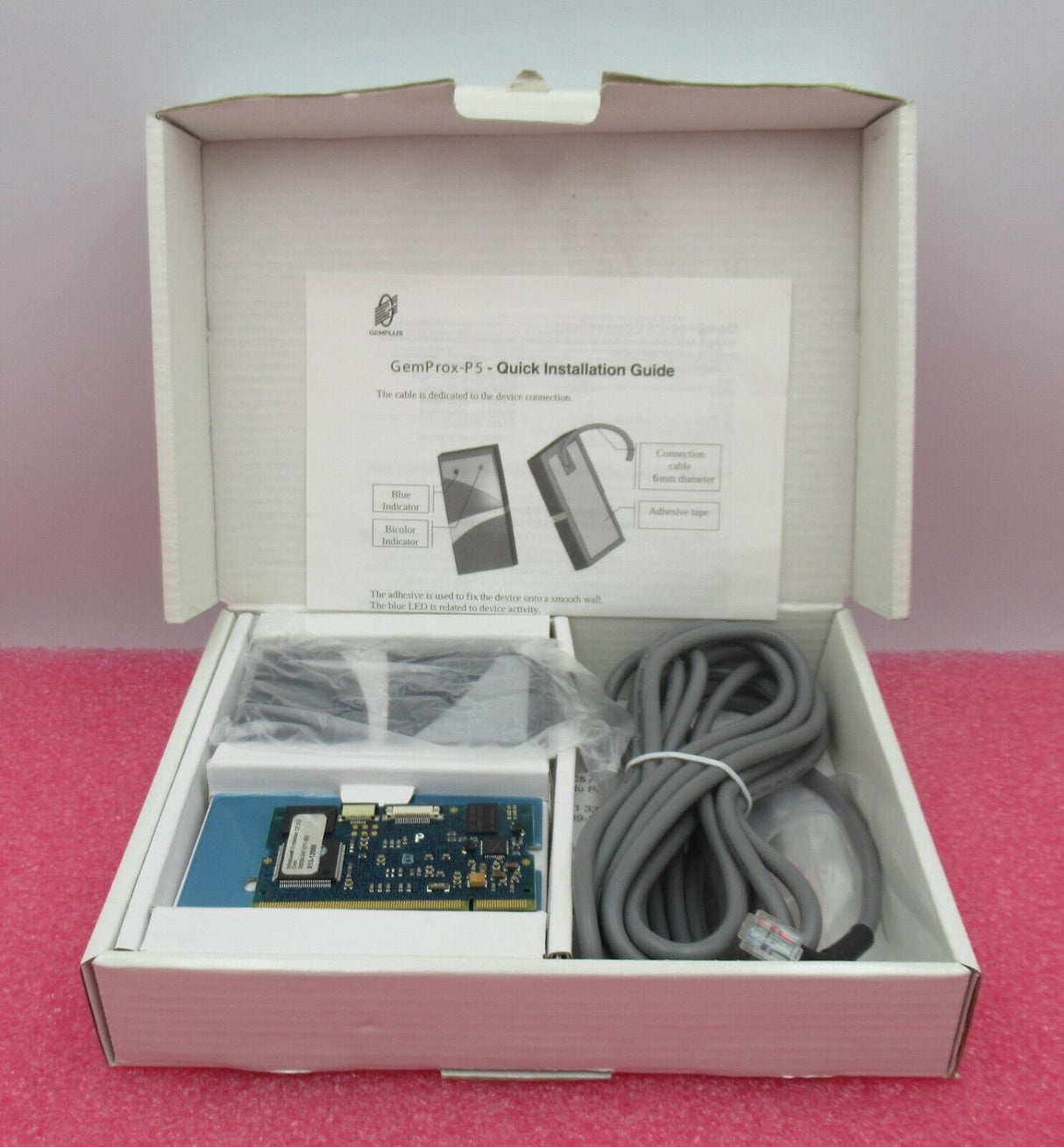

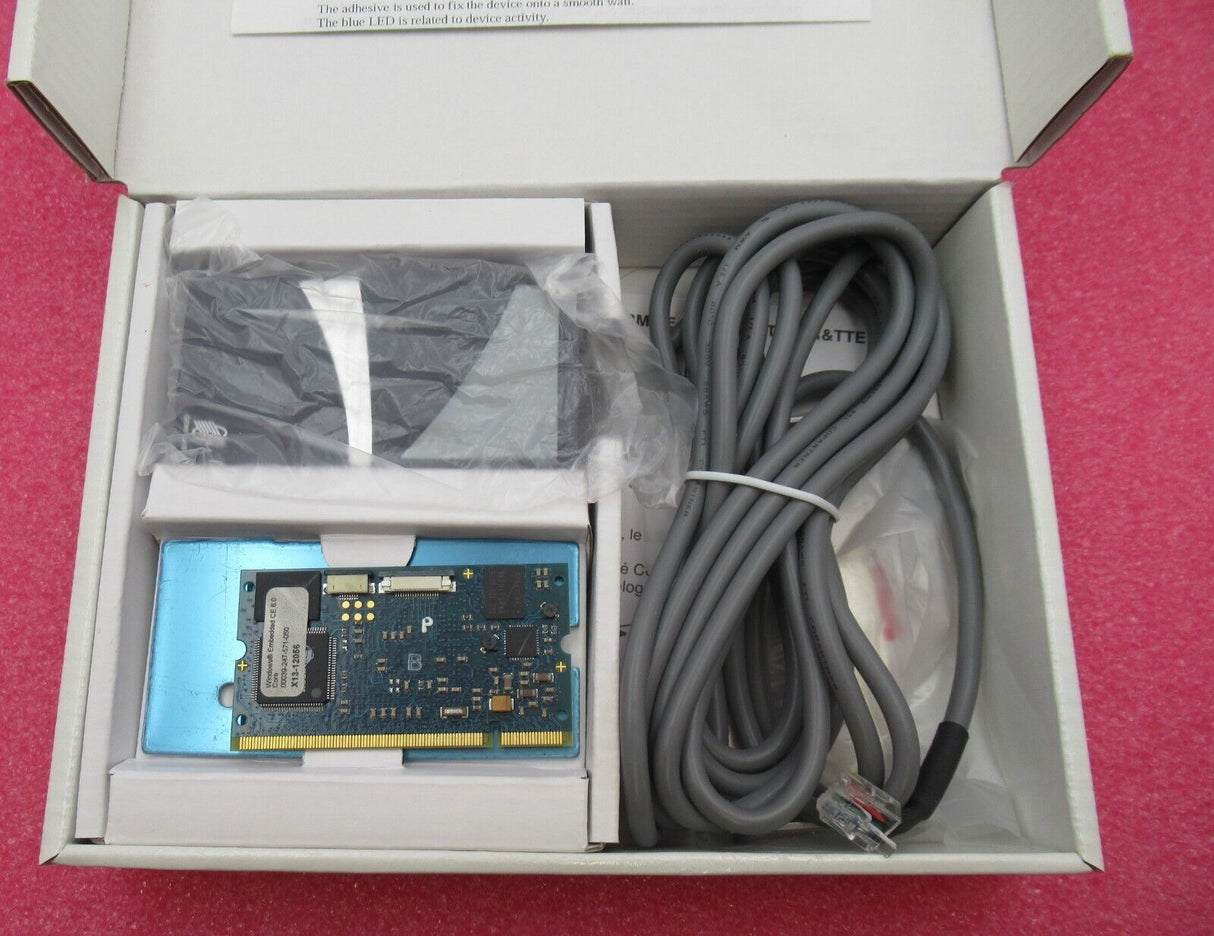

Included:
1x GemPlus GemPro-P5 Card Reader
1x Quick Installation Guide
1x Wall Fixation Plate
More Info:
GemProx is a range of ISO 14443 contactless products particularly suited for the Proximity Payments, Identity, Access Control and Mass Transit markets.
Card interface:
Operating frequency: 13.56 MHz
Full ISO 14443 -1 to –4 compliant
Embedded T=CL protocol
Baud rate: 106 Kbps to 848 Kbps
Reading distance: up to 5 cm
On-board antenna
Host interface:
Type of interface: RS 232, RS 485
Protocol: GBP or TLP224
Baud rate: 1.2 Kbps to 115 Kbps
Power supply:
Voltage: +12 VDC (+7 V to +14 V)
Current: 150 mA at +12 VDC
Environment
Operating temperature range: -20 °C to +70 °C (-4 °F to +158 °F)
Storage temperature range: -40 °C to +85 °C (-40 °F to +185 °F)
Humidity: 0 % to 95 % non condensing
CE, FCC Part 15 Class B, UL 60950
MTBF: 400,000 H at 20 °C
Other features:
2 LED indicators
Internal beeper
Accessories for easy wall mounting
Universal power module in option
Serial/USB adaptor in option
Main functions:
Read/write the following Smart Cards:
ISO 14443 A, B, T=CL cards
Mifare® cards (including DESFire)
SR176, SRIX512 and SRIX4K chip based cards
Other cards on request.
High level command set
Automatic switch between A and B Smart
Cards:
Firmware download in Flash memory
Mifare® Application Directory (MAD)
PayPass automatic card polling
Card insertion/removal detection
E-purse command set
Compliant with PC/SC V2.0 specifications
Self test
