Teleste

Teleste Luminato ASI Input Module DVB-ASI IPTV Cable TV MPEG-2 MPEG-4 AVC HD 3D

£171.00
£142.50 ex VAT

Pre-owned

Product overview

Model Number: LAS-C
Model: DVB-ASI IPTV LAS-C
Modified Item: No
Custom Bundle: No
MPN: DVB-ASI IPTV
Brand: Teleste
Type: ASI Input Module
Teleste Luminato ASI Input Module DVB-ASI IPTV Cable TV MPEG-2 MPEG-4 AVC HD 3D

In good condition and full working order

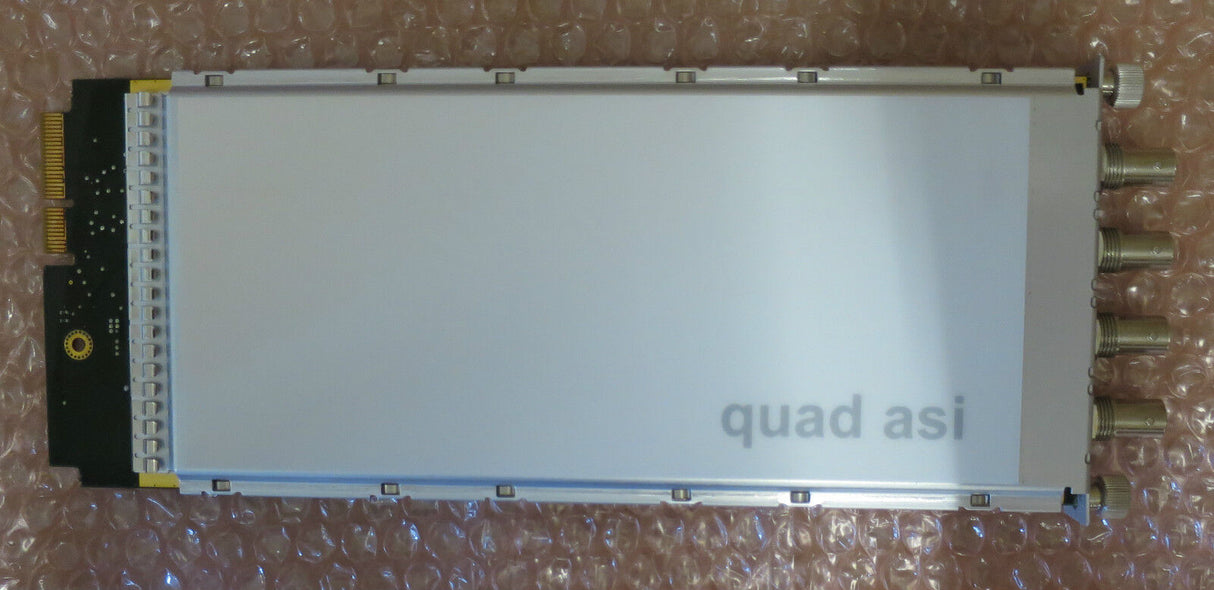

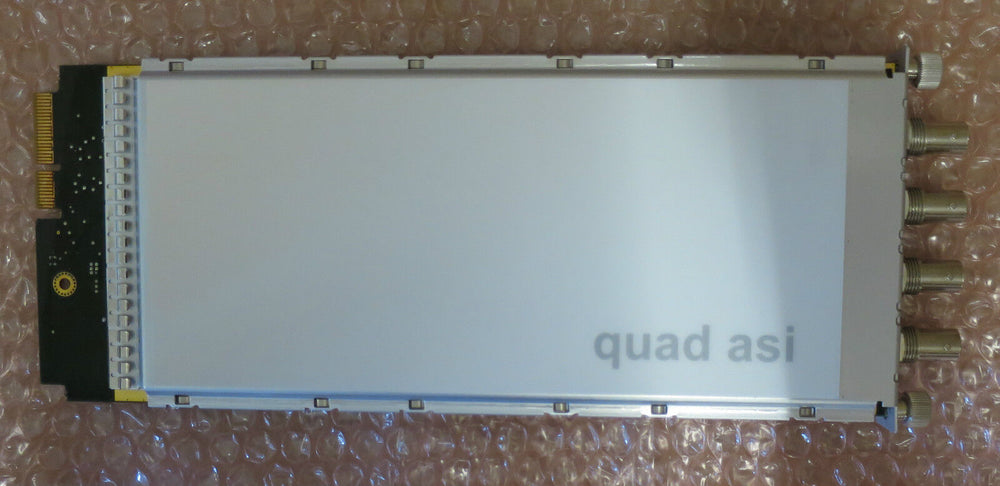

Luminato ASI input module

LAS-C
Teleste Luminato DVB-ASI input module enables best of breed Cable TV and IPTV platform for operators. The module enable flexible selection of free-to-air services from DVB-ASI sources, which can be adjusted to the operator’s service line-up with the built-in advanced transport stream processing capabilities.
High density
High-performance Luminato chassis has six module slots to be freely furnished with any combination of the receiver modules which enables low-cost applications even with partially equipped chassis. Similarly, Luminato support perfectly pay-as-you-grow model in order to allow optimal timing for investments and system expansion.

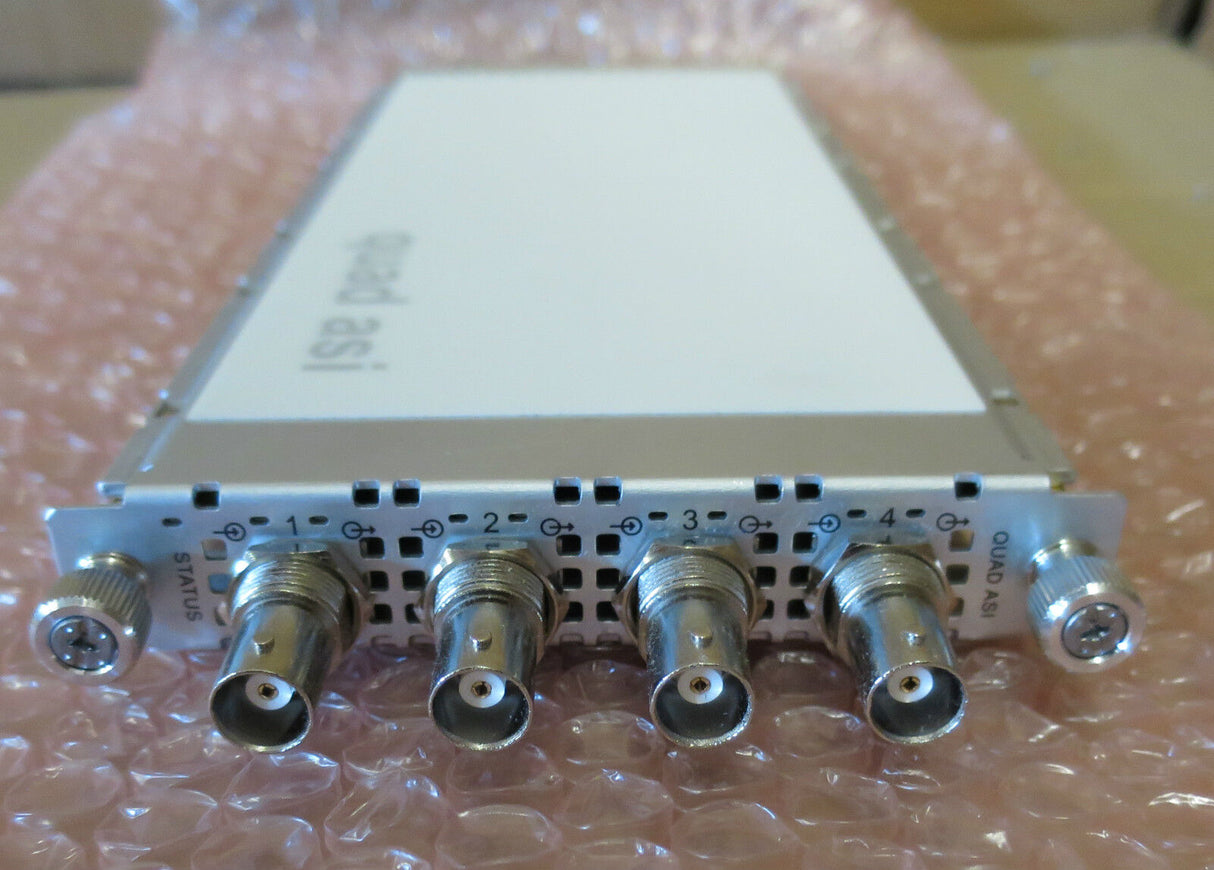

DVB-ASI input module is available as quad-receiver model and having all Luminato module slots furnished with the modules enables to have up to 24 DVB-ASI inputs in one RU chassis. As one input can process mul­tiple services, the amount of input services can be vast. This increases efficiency and lowers headend investments dramatically. The optional descrambling uses DVB Common Interface modules flexibly supporting large variety of Conditional Access Systems.

Efficiency and reliability
With advanced transport stream processing, operator can select the services and components which are relevant to his network - either to save bandwidth or otherwise simplify the outgoing stream content. The Luminato receiver follow-up any changes on the received stream to automatically readjust the processing to provide uninterrupted service. This will allow the operator to efficiently manage network capacity usage.

The available tools provide high degree of automated features to minimise the cost of system set-up and operation, and avoiding downtime due to changes in the received services.

Interoperability as standard
Luminato receivers support Standard Definition, High Definition and 3D video in MPEG-2 and MPEG-4 AVC video formats and numerous audio formats.

The output of the module is always fully DVB compatible IP streams – complete with automatically generated PSI/SI streams. The output can be either carried as Multi Pro­gram Transport Stream or de-multiplexed to Single Program Transport Streams, which are directly suitable for IPTV networks and allow highly flexible stream routing and re-multiplexing on Cable TV networks. The IP output streams from the device can be transmitted either directly to another module on the chassis for further processing, to IP connected head-end equipment on the local or remote head-end, or directly to IPTV network. Further, each module can create up to 120 output IP streams.

Embedded content protection
All receiver modules have the optional capability to do DVB Common Scrambling Algorithm and AES content protection. The embedded scrambling doesn’t require any additional hardware and the user can freely select which services will be scrambled. The content is never accessible in unprotected format which is highly appreciated by content provid­ers. The component level scrambling is also supported to allow only video and audio scrambling and leave other streams untouched to avoid descrambling challenges for bursty data in set-top box.

Multiple services per receiver – high efficiency, lower investments
Embedded security – services can’t be accessed in unprotected format
Hot swap as standard – swap the module and remain the configurations
LNB power feed, adjustable Voltage and 22 kHz tone
DVB-ASI input
Advanced transport stream processing
Demultiplexing from MPTS to SPTS
PID remapping and filtering
PSI/SI pass-through or regeneration
Service follow up, service ID remapping, stream type filtering, SID follow up and service information
Automatic/manual PSI-SI table generation
Multicast and unicast streaming
MPEG transport stream over UDP/IP or RTP/UDP/IP streaming
SPTS and MPTS streaming (CBR or VBR)
MPTS passthrough

Parameter Specification Note
DVB-ASI input
Impedance 75 ohm
Max. speed per interface 216 Mb/s payload traffic
Max. speed total (4 ports) 250 Mb/s shared with 4 inputs
Standard EN50083-9

DVB Common Scrambling Algorithm Content Protection
Max service to be scrambled per module 120
