TVONE C2-1200 Video Scaler Up Conversion 2x Compisite 2x S-Video YUV C2-1200-UTP

Brand: TVONE
Form Factor: Console/Tabletop
Type: Video Scaler
Video Format: HD,SD
Model: C2-1200
Connectivity: Component,Composite,S-Video,YPbPr
MPN: C2-1200,C2-1200-UTP
Product Line: C2-1200
TVONE C2-1200 Video Scaler Up Conversion 2x Composite 2x S-Video YUV C2-1200-UTP

In good condition and full working order

Included:

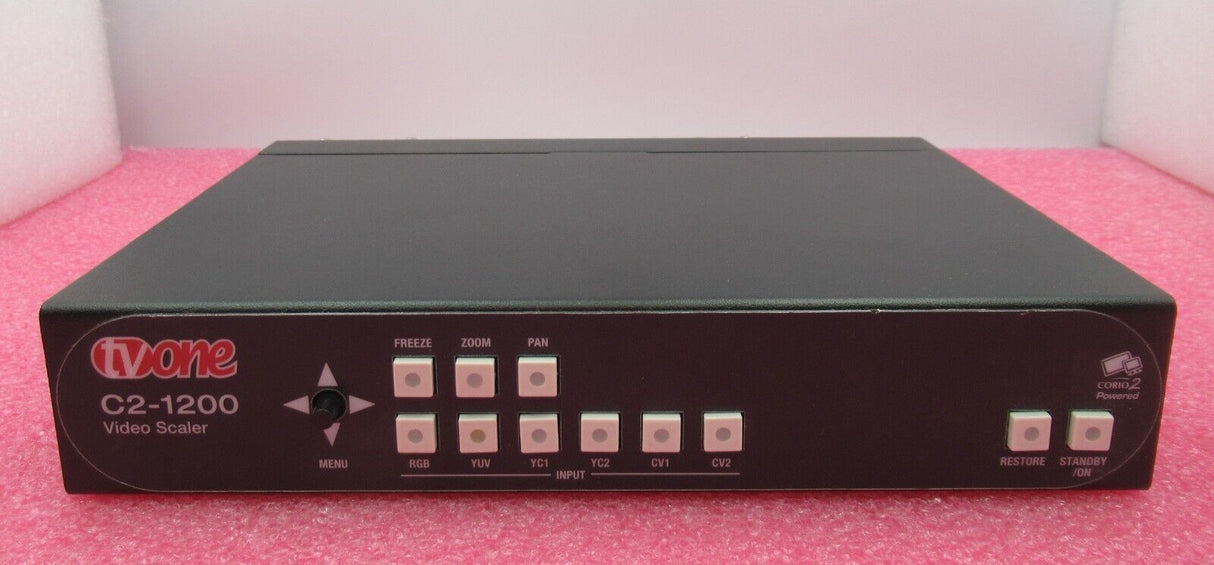

1x TVONE C2-1200 Video Scaler Up Conversion 2x Composite 2x S-Video YUV C2-1200-UTP

Details:
C2-1200 Video Scaler is based on TV One's exclusive CORIO2™ technology and provides high quality up conversion from standard video formats to Computer or HDTV signals. NTSC and PAL video standards are supported. Video Inputs are 2x Composite, 2x S-Video or one YUV Component or YPbPr. A computer bypass is also provided. The output is selectable as any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. A wide variety of computer signal formats are available to support PC, Mac and Workstation formats.

All the functions can be controlled via the front panel Push Buttons, an Infrared Control Remote Unit or via an RS-232 connection. A Windows Control Panel is provided and most third party control systems interface directly with the entire C2 range of products. An On-Screen Display is available to assist in setup.

Variable Zoom to 10X allows you to enlarge any part of the video image to fill the entire computer screen and position controls allow you to move around to any area desired. Variable Shrink to as little as 10% allows fitting the image onto most displays. The full bandwidth chroma sampling insures faithfully reproduced, high resolution colors.

A 4x1 integral stereo audio routing switcher provides unbalanced inputs and output to follow the video input selection.

Specifications:

Television Standards: NTSC, PAL, PAL-M, PAL- N, SECAM
Composite Video: 2x via BNC
YC (S-Video): 2x via 4-Pin Mini-DIN Connector
YUV/YPbPr: 1x via 3-BNC

Computer Output:
Format - Analog: RGBHV, RGBS, RGsB, YPbPr, UTP
Connectors: 1x HD-15 Female and 1x 5-BNC, 1x RJ-45 (for UTP Output)
R-G-B Level: 0.7 Vp-p
PC Resolutions: Any up to 2048x2048
HDTV Resolutions: Any up to 1080p
Vertical Refresh Rate: Any to 250Hz

General:
Size and Position: Automatic via AutoSet or Manual
Image Size: User-Definable Presets
Image Freeze: One Video Frame
Settings Memory: Non-Volatile
Zoom Range: Variable to 10x Zoom
Shrink Range: Variable to 10%
Image Mirroring: Horizontal and/or Vertical
Horizontal Filtering: Full Digital
Frame Rate Conversion: Temporal (C2-1250 Only)
Conversion Technology: Proprietary – CORIO®2
Color Resolution: 24-bit (16.8 Million Colors)
Digital Sampling: 24-bit, 4:4:4 format
Firmware Memory: Flash, Upgradeable via RS-232
Video Decoder: 9-bit Digital
De-Interlacing (NTSC-PAL): Pixel-level Motion Adaptive
Comb Filter Decoding: Adaptive
Film Mode (NTSC): 3:2 Pulldown
Video Adjustments: Contrast, Brightness, Saturation, Hue (NTSC), R-G-B Levels

Audio Input/Output:

Inputs: 4x Unbalanced via Terminals
Output: Unbalanced via Terminals

Control Methods:

Local: via Front Panel Buttons OSD
RS-232: Interface via D9 Female Connector
Infrared Remote: via IRC-5 Remote Unit

Regulatory Compliance:

Main Units: FCC, CE, RoHS
Power Supplies: UL, CUL, CE, PSE, GS, RoHS

Mechanical:

Size (H-W-D): 41.5x218x150mm(1.63”x8.6”x5.9”)
Weight (Net): 1.26 kg (2.77 lbs)

Environmental:

Operating Temperature: 0 to +50C (+32 to +122F)
Operating Humidity: 10% to 85%, Non-condensing
Storage Temperature: -10 to +70C (+14 to +158F)
Storage Humidity: 10% to 85%, Non-condensing

Power Requirement:

External Power Supply: 12VDC@1A

Compatible UTP Receivers:

1T-CT-442: RGBHV – to 150 meters (500’)
1T-CT-444: RGBHV – to 300 meters (1,000’)
1T-CT-464: YPbPr – to 150 meters (500’)
