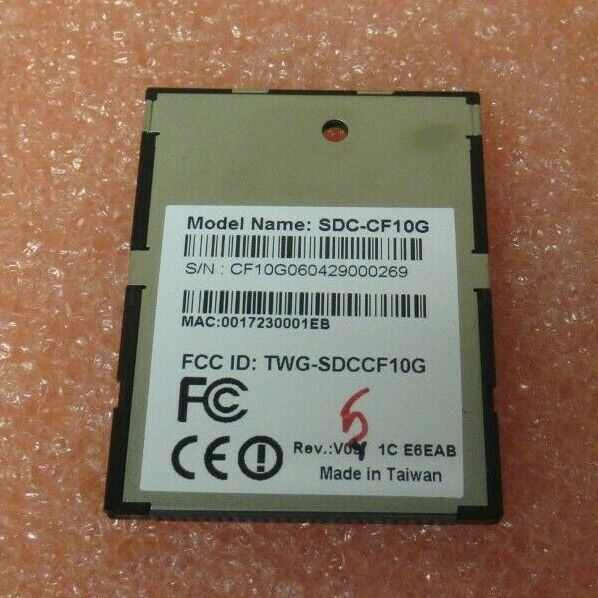

Vocollect Summit SDC-CF10G Rev.:V05 802.11g CF Compact Flash Module

Vocollect Summit SDC-CF10G Rev.:V05 802.11g Compact Flash Module
P/N: SDC-CF10G

In good condition and full working order

Supplied Without Antenna And without Mounting Bracket

Included:
1x Vocollect Summit SDC-CF10G Rev.:V05 802.11g Compact Flash Module

Overview:
The SDC-CF10G provides all key Summit hardware and software capabilities in a Compact Flash form factor. As a result, the SDC-CF10G is ideal for integration into application specific devices like portable data terminals, portable printers and medical devices. Hardware innovations enable the CF10G module to provide far greater performance and range than WLAN radio modules designed for office and consumer applications while minimizing power consumption and allowing for operation in challenging environments.

The SDC-CF10G compact flash (CF) radio module combines a high-performance 802.11g radio with customized software, both proven on mobile computers and other business-critical mobile devices that operate in harsh environments. No other Wi-Fi radio module can match the range, robust security, seamless mobility, and easy administration of the CF10G module

Each CF10G module delivers:
Hardware: Maximized radio range, minimized power consumption, and broad operating temperature range
Software: Enterprise-level security,fast and reliable roaming, and easy administration
Certifications: Regulatory certifications plus Wi-Fi Alliance and CCX V4certifications
The CF10G module is backed by a full set of support services including system integration support, regulatory process assistance, and technical support from product and wireless LAN(WLAN)experts.

Hardware Capabilities:
The CF10G module is designed for use in business-critical mobile devices and the challenging radio environments in which they operate.  Hardware innovations enable the CF10Gmoduleto provide far greater performance and range than WLAN radio modules designed for office and consumer applications while minimizing power consumption and allowing for operation in extreme environments. Key hardware capabilities include:
802.11b/g: By supporting the IEEE 802.11g protocol, the CF10G module provides for a maximum data rate of 54 megabits per second (Mbps) to maximize data transfer and overall WLAN performance. Operating in the 2.4 GHz portion of the radio frequency spectrum, 802.11g is a superset of the popular 802.11b standard. As a result, the CF10G module can be thought of as an 802.11b and 802.11g module.
Antenna connectors: With dual Hirose U.FL antenna connectors, the CF10G module supports antennas of varying types and gains. The dual connectors support transmit and receive diversity to maximize performance in high multipath environments.
Range: To maximize radio range–how far the module can be from a WLAN access point and still send data to that AP and receive data from it–the CF10G module offers market-leading transmit power, receiver sensitivity, and delay spread.  As a result, the CF10G module delivers reliable connectivity,even in environments with few APs, many substances that absorb or reflect radio waves, and many devices that compete for the airwaves.
Low power consumption: With power consumption that's up to 40% lower than other 802.11g radio modules, the CF10G module maximizes device battery life to provide for full-shift operation.
Extended operating temperature: To allow for device operation in extreme environments such as factories, warehouses, freezers, and the outdoors, the CF10G module provides an extended operating temperature range of -30° to +75° C, which far exceeds the capabilities of most other radio modules.
Software Capabilities
To operate effectively in a business-critical mobile device, a WLAN radio needs specialized software to deliver the security, trouble-free operations, and manageability that customers demand. Software for the CF10G module includes a driver, an integrated supplicant, and a full-featured management and monitoring utility called the Summit Client Utility (SCU). Key capabilities of CF10G module software include:
