Crestron

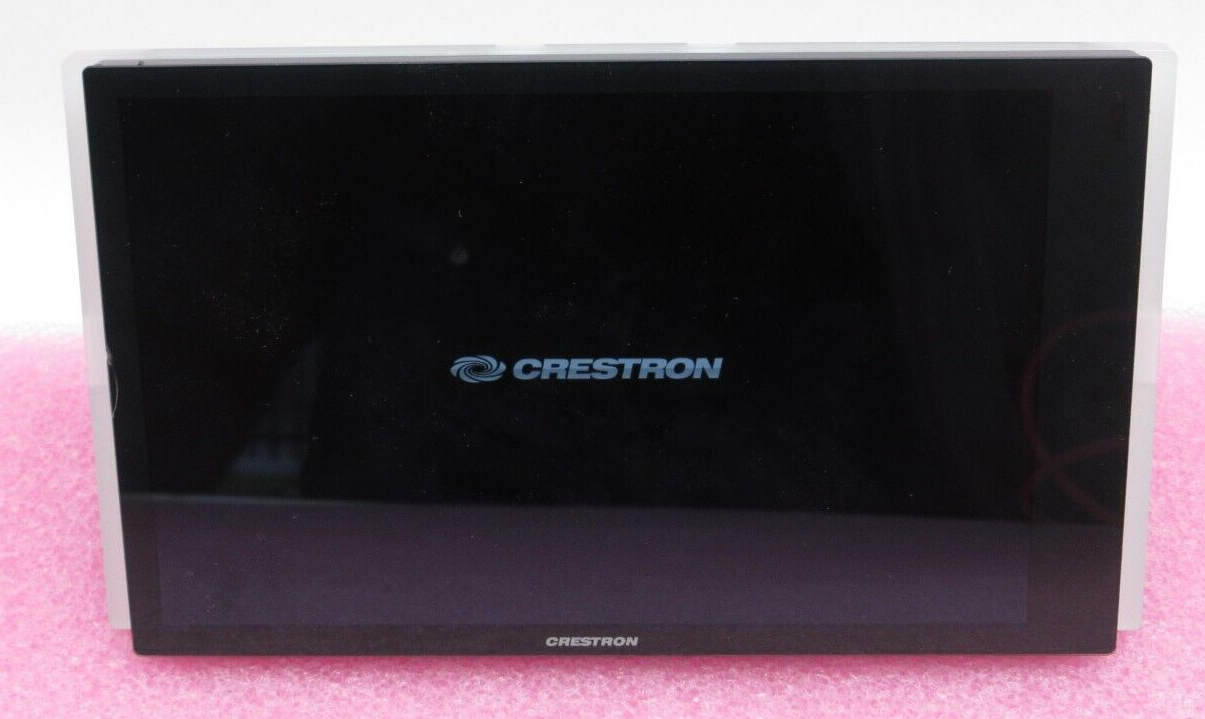

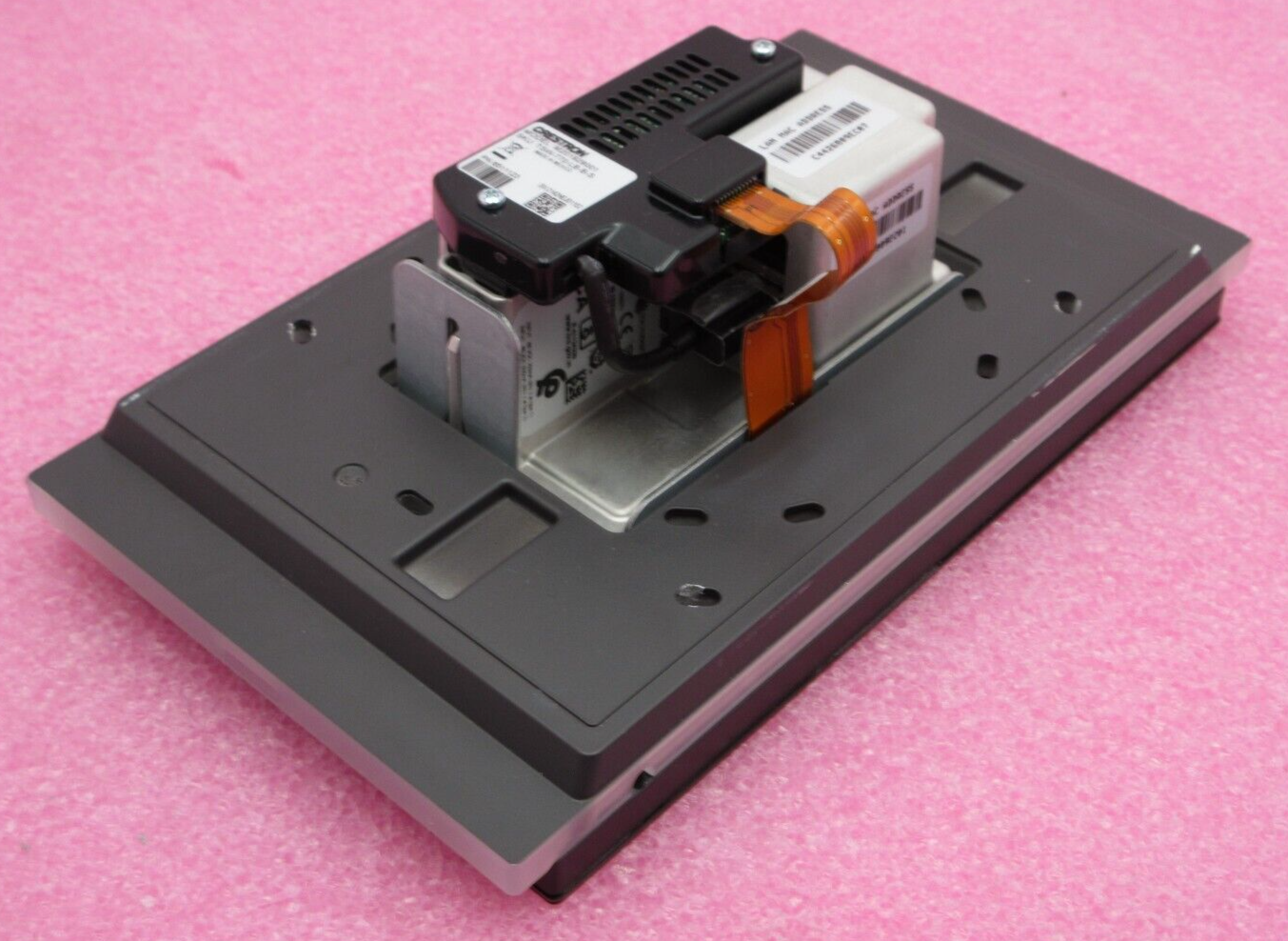

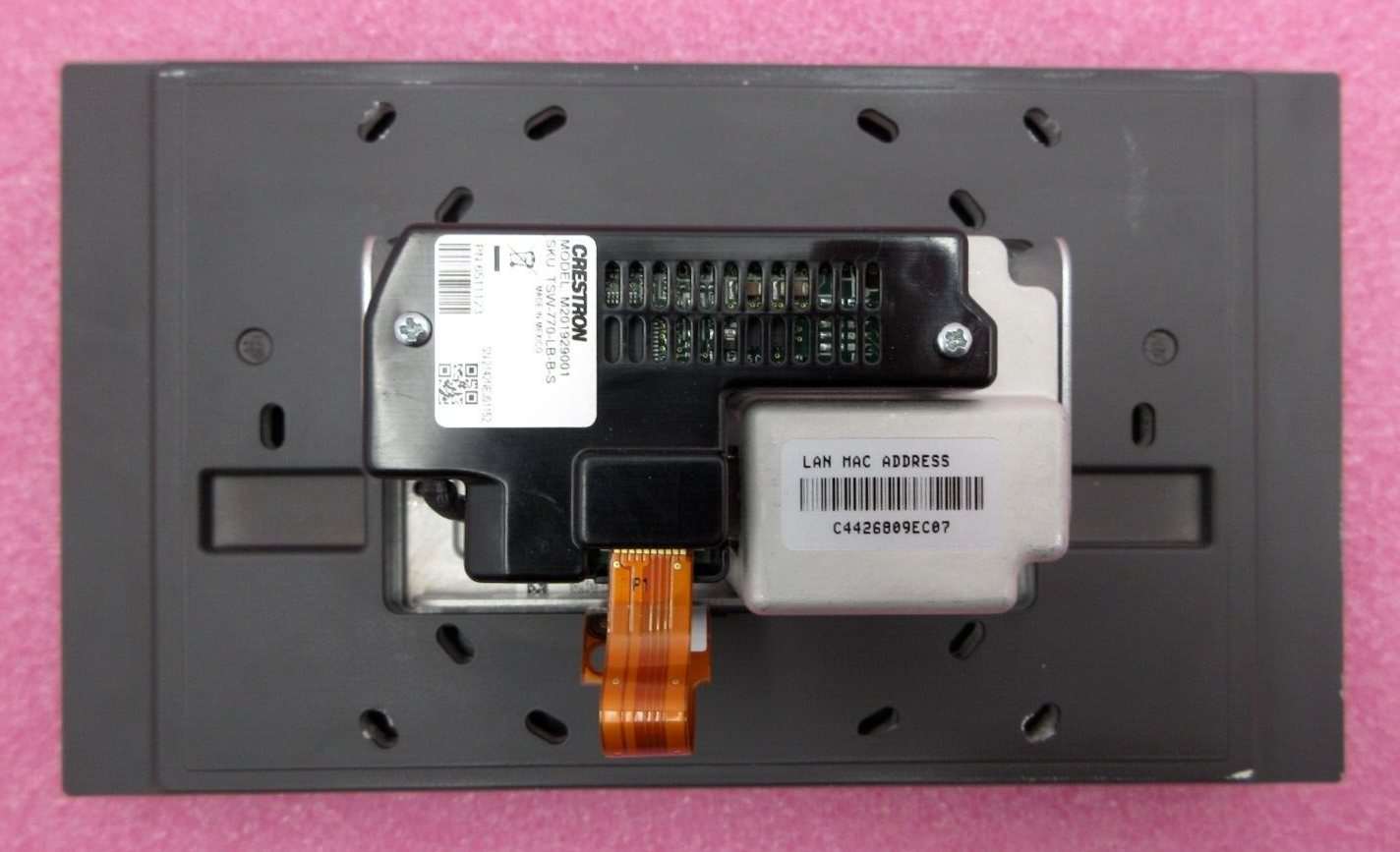

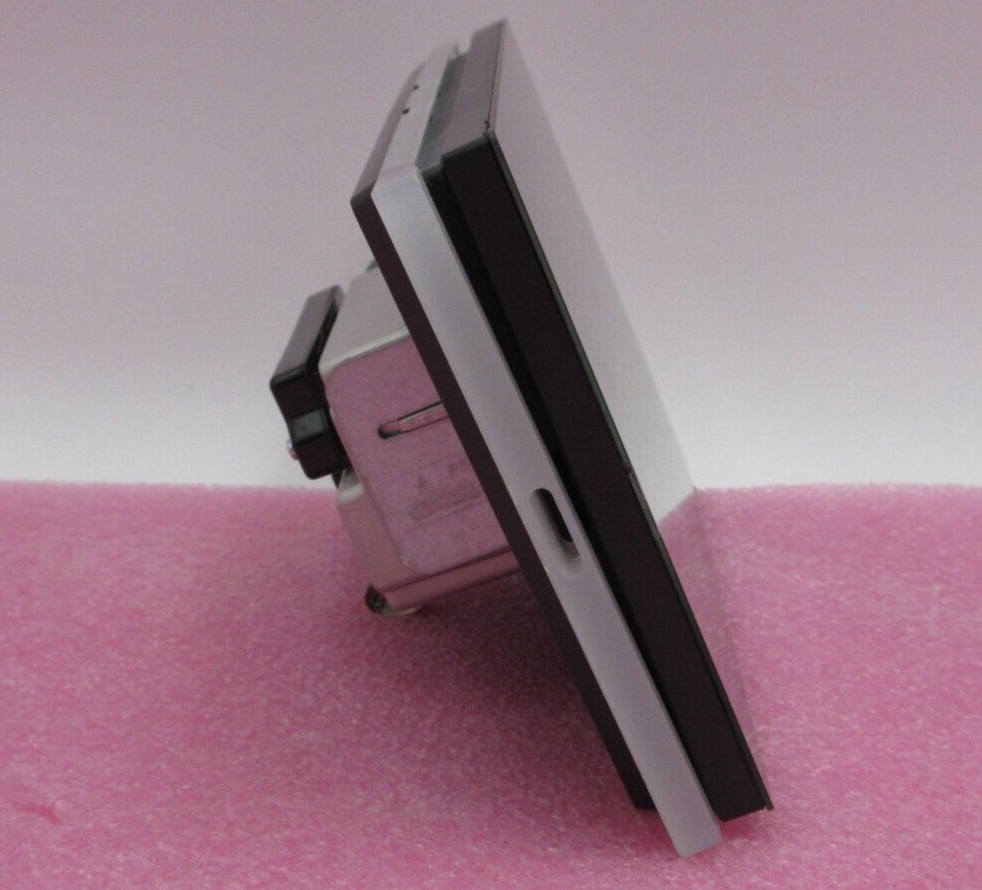

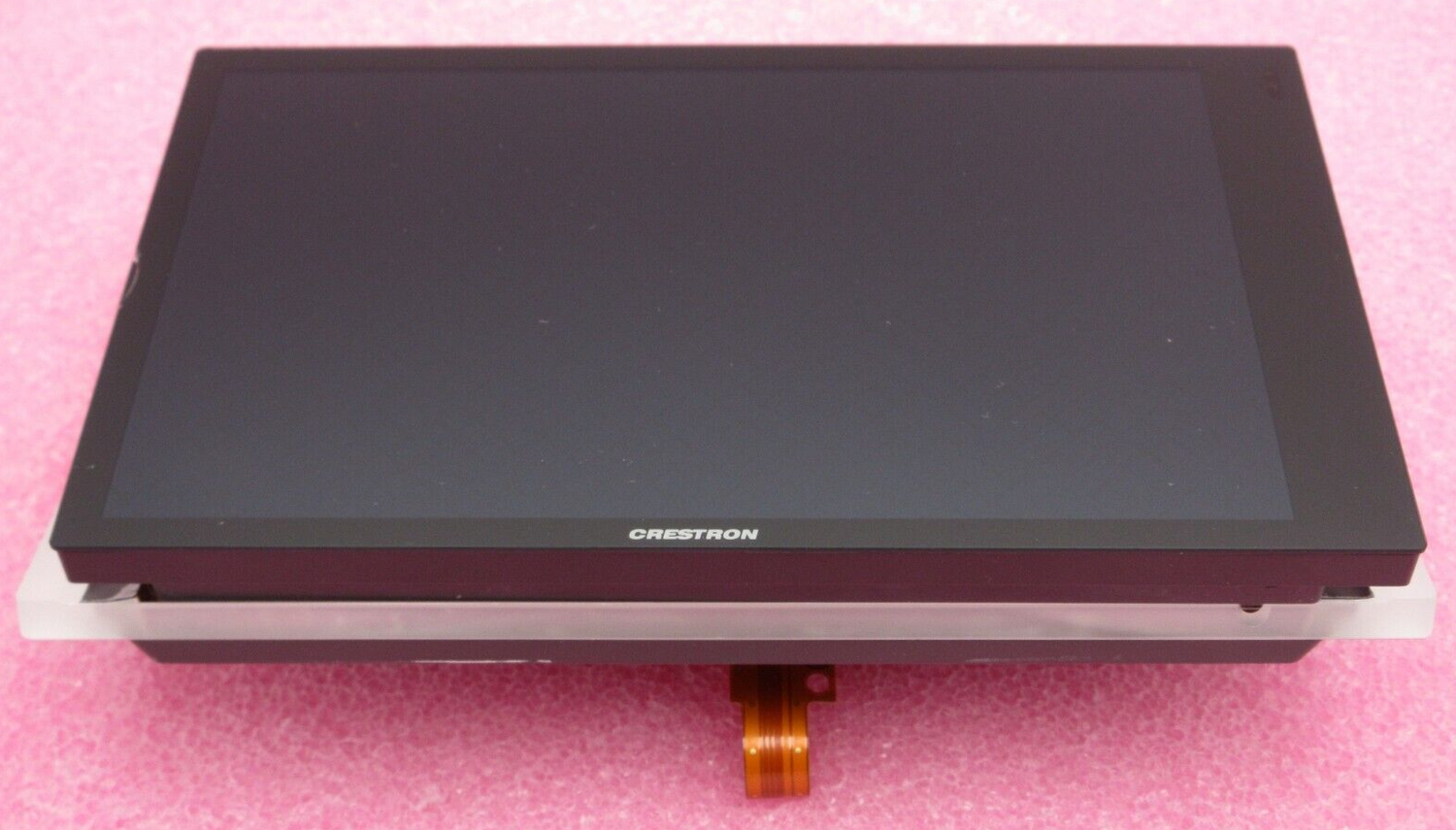

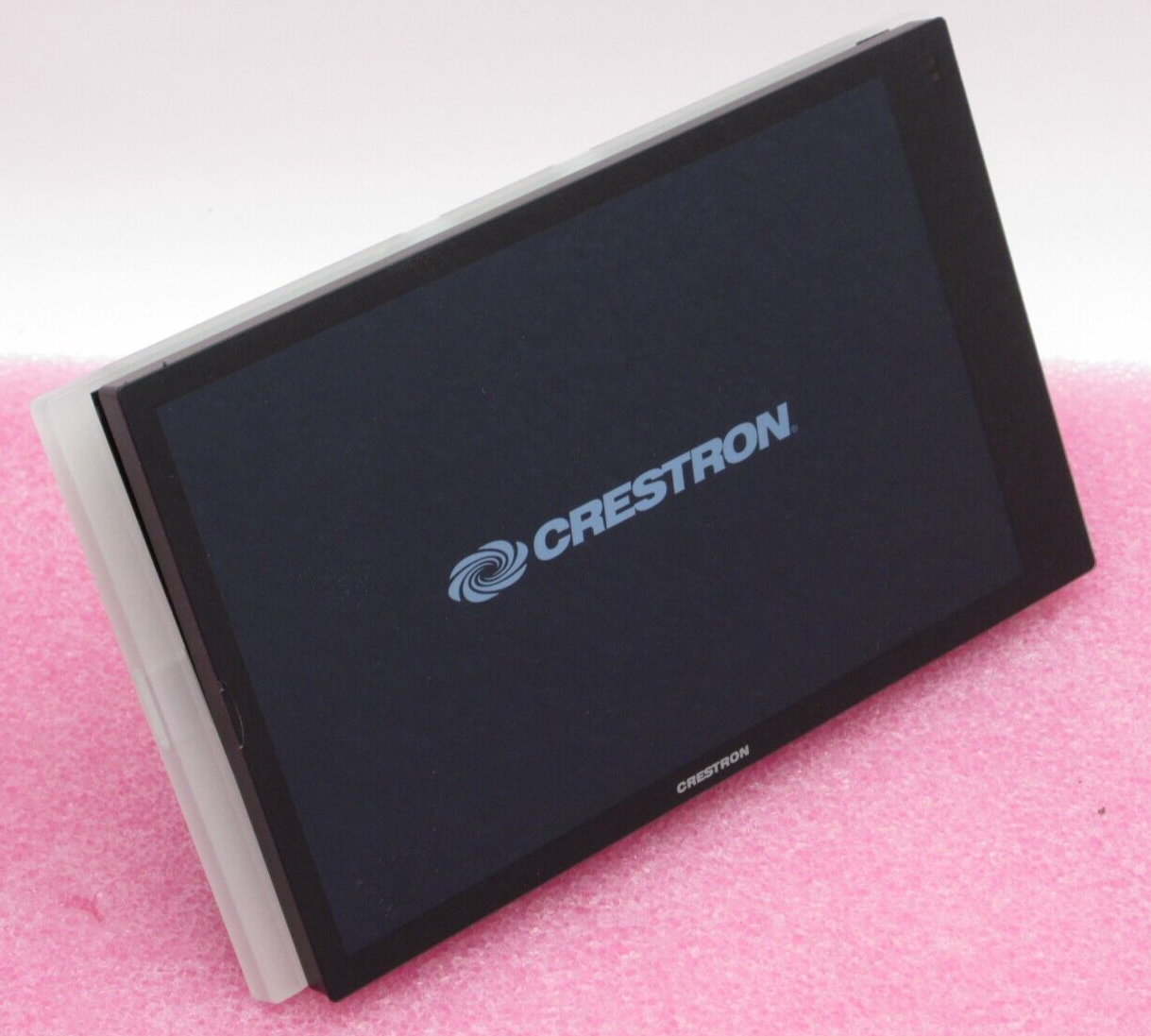

Crestron TSS-770-B-S M201923002 7" PoE Room Scheduling Touch Screen +Light Bar

£91.20
£76.00 ex VAT

Pre-owned

  • No additional power supply needed.
  • Optional light bar and branding options.
  • 7" PoE Touch Screen
  • Crestron Fusion Integration

Description

Brand: Crestron

Type: Touch Panel

Mount Type: Wall Mount

Connectivity: Ethernet (RJ-45),PoE

Features: Power Over Ethernet

MPN: M201923002,TSS-770-B-S,TSS-770-B-S-LB

Crestron TSS-770-B-S M201923002 7" PoE Room Scheduling Touch Screen +Light Bar
Touch Panel Model: M201923002
P/N: TSS-770-B-S-LB


In Full Working Order
Tested

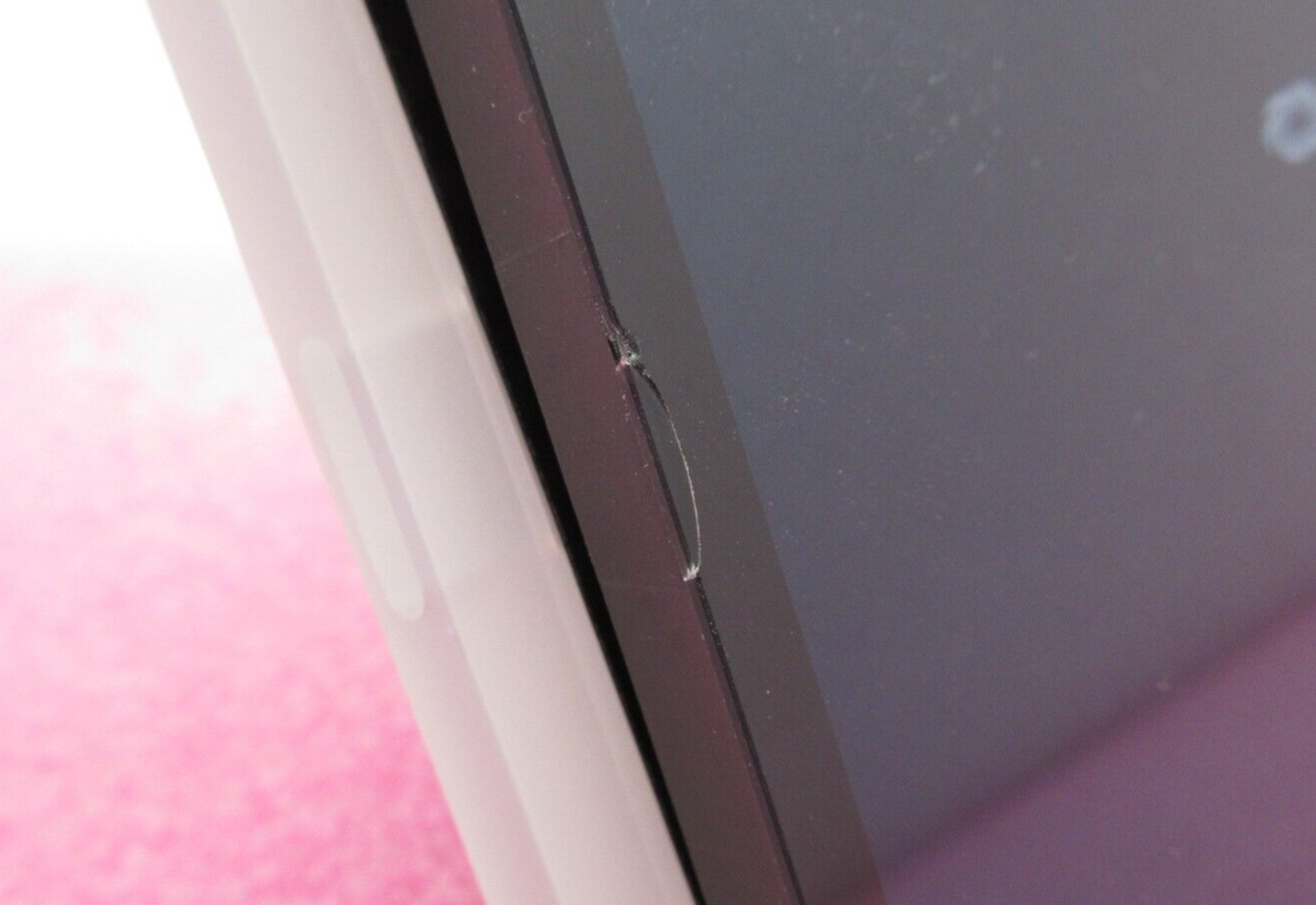

Crack On Left Of Screen Bezel, Does Not Affect Usage as not in viewing area (See Last Picture)
PoE Power Supply Not Included



Overview:

A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming.

Crestron® TSS-770 series touch screens are designed to enhance and simplify room scheduling across an enterprise. The TSS-770 installs near the entrance of a meeting room or huddle space to provide a clear indication of the room availability and schedule, and it integrates seamlessly with a variety of popular scheduling services.

Crestron Room Scheduling App
  • The native Crestron Scheduling app helps organizations to maximize productivity and manage usage for every meeting space. If desired, the room can be reserved on the spot for an ad hoc meeting. A CEN‑ODT‑C‑POE occupancy sensor (sold separately) can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no‑shows and unscheduled room usage.1
  • Crestron room scheduling also offers three levels of customization—ranging from simply configuring settings in the web user interface to modifying the application source code for a completely unique appearance—depending on the needs of an enterprise
  • Running the Crestron Scheduling App, the TSS-770 integrates directly with Crestron Fusion® software, Microsoft Exchange Server® software (for users of Outlook® software and Office 365® software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET® 25Live® scheduling software, or Ad Astra® software. IBM® Notes® software is also supported through a Crestron Fusion on‑premises server.

Third-Party Scheduling Apps
  • The TSS-770 includes support various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.1,2,3

Built for Enterprise Scheduling Applications
  • The TSS-770 is an enterprise-grade device engineered to meet all the demands of a corporate office, conference center, or higher education environment. Its 7 in. (178 mm) capacitive display provides an intuitive user interface dedicated for scheduling rooms and viewing essential meeting details. The UI can be customized and branded with your choice of background images and logos. A larger 10.1 in. (257 mm) version (TSS‑1070 series) is also available.1
    • Functional: The TSS-770 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-770 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi‑Fi® communications via a local wireless access point (WAP).
    • Versatile: Crestron offers a variety of mounting options for mounting the TSS-770 to drywall, masonry, glass, mullions, and other surfaces. Optional light bar and hallway sign accessories are available to increase the visibility of the room availability status.
    • Reliable: Consumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touch screens are purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the touch screen is using the latest features, the TSS-770 checks nightly for app updates and loads the latest version automatically.
    • Secure: Crestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization’s network policies.
    • Manageable: Crestron touch screens feature cloud‑based provisioning and management to streamline the process of configuring and monitoring every touch screen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.
    • Cost‑Effective: Crestron touch screens offer clear advantages over other alternatives, but that doesn’t mean they cost more. The TSS-770 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.
Status Indicator Options
The TSS-770 provides dual high-speed USB 2.0 ports for connecting Crestron room scheduling accessories (sold separately) to the touch screen that enhance an enterprise room scheduling solution.
  • The TSW-770-LB series light bars provide a 180° visual indication of a room’s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.
Power over Ethernet
  • Using PoE technology, the TSS-770 gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN‑SW‑POE‑5 or CEN‑SWPOE‑16, sold separately) offer a total networking solution with built‑in PoE for multiple touch screens. A PoE Injector (PWE‑4803RU, sold separately) is also available to support a single touch screen.
Wall Mount Options
  • Using the bracket provided, the TSS-770 is easily installed over a 2‑gang or 3‑gang US electrical box, or a 2‑gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.



Room Scheduling Support
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
Third-Party Apps Includes support for various third-party scheduling applications.1,2,3
Languages
Crestron Fusion Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
Wired Communications
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, Crestron XiO Cloud® client, IEEE 802.3at compliant
USB USB 2.0 host for light bar or hallway sign4
Wireless Communications
Transceiver IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range Up to 50 ft (15 m), subject to site-specific conditions
Bluetooth® Hardware Crestron Bluetooth beacon5
Touch Screen Display
Display Type TFT active matrix color LCD
Size 7 in. (178 mm) diagonal
Aspect Ratio 16:10 WXGA
Resolution 1280 x 800 pixels
Brightness 350 nits (cd/m²)
Contrast 850:1
Color Depth 24 bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80° horizontal, ±80° vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Buttons
Hard Keys (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone
Reset (1) Pin hole on rear panel for hardware reset
Audio
Features Built-in speakers for touch feedback and alerts
Connectors
LAN PoE (1) 8-pin RJ-45 connector, female, with 2 LED indicators;
100BASE-TX Ethernet port;
PoE+ PD port;
Green and yellow LEDs indicate Ethernet port status
USB (2) USB Type A connectors, female;
USB 2.0 host ports;
For optional room scheduling accessories
NOTE: The touch screen supports the use of a single light bar or status indicator accessory The RFID-USB card reader accessory can be connected to the second USB port..
Power
PoE (Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;
Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;
Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
Environmental
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44 BTU/hr
Construction
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 or 3 gang US electrical box, 2 gang European (DIN 49073) electrical box, or 2 gang UK (BS 4662) electrical box;
Lectern mount over a 2 in. H x 3 3/4 in. W (51 mm H x 96 mm W) cutout;
1-3/8 in. (35 mm) minimum mounting depth;
Wall mount, surface mount, and rack options available separately
Dimensions
Height 4.17 in. (106 mm)
Width 6.80 in. (173 mm)
Depth 1.99 in. (51 mm)
Dimensions do not include the mounting bracket or add‑on accessories
Weight
14.11 oz (400 g)







Spécifications techniques

Key Features
Next generation wall mount touch screen designed specifically for enterprise room scheduling applications
Delivers a superior and cost-effective alternative to consumer tablet devices
Integrates directly with various room scheduling services
7 in. (178 mm) widescreen capacitive touch screen display
Standard U.S., U.K., and European electrical box installation with additional mounting options available
Single wire Ethernet connection with PoE or PoE+ power
Wi‑Fi® network connectivity
Dual USB 2.0 ports for room availability accessories
Enterprise grade security and authentication
Choice of white or black smooth finish

Ce qui est inclus

Included:
1 x Crestron TSS-770-B-S M201923002 7" PoE Room Scheduling Touch Screen +Light Bar
